Asus Commando

Published: (last update )

Chipset
ModelIntel P965
Northbridge82P965
SouthbridgeICH8R
Bus typeQDR, 1333 MHz, 64 bit
Bus bandwith10 664 MB/s
RAM type (1)DDR2 800 MHz, 128 bit
RAM type (2)-
RAM bandwidth12 800 MB/s
Maximum RAM8 192 MB
Reg. / ECC supportno / no
NB PCI-E lanes 16 (1.0a)
AGP-
PCI support2.3
Integrated VGA-
The board
Socketsocket 775
Supported CPUsC2Q, C2D, Pentium D, Pentium 4
Fastest CPUCore 2 Quad QX9650
RAM slots4 × DDR2
AGP-
PCI-E x16, x8, x4, x12, -, -, -
PCI-X / PCI / ISA-, 4, -
IDE1 × ATA 133
SATA6 × (300)
USB / Firewire10 × (2.0) / 2
LAN2 × 1000 Mb/s
FormatATX (305x244)
Release date2007

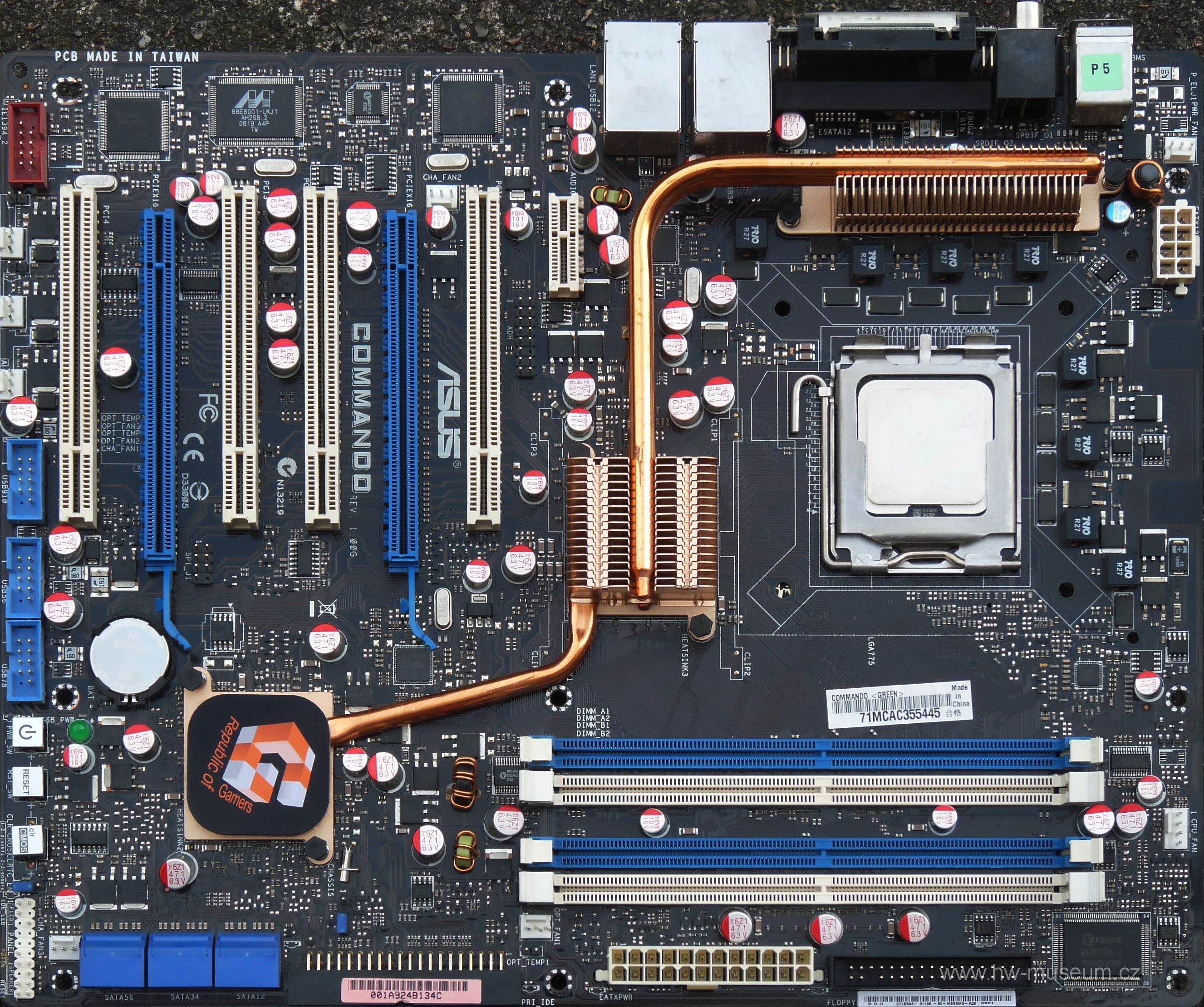

Asus Commando (front side)

Asus Commando (front side)

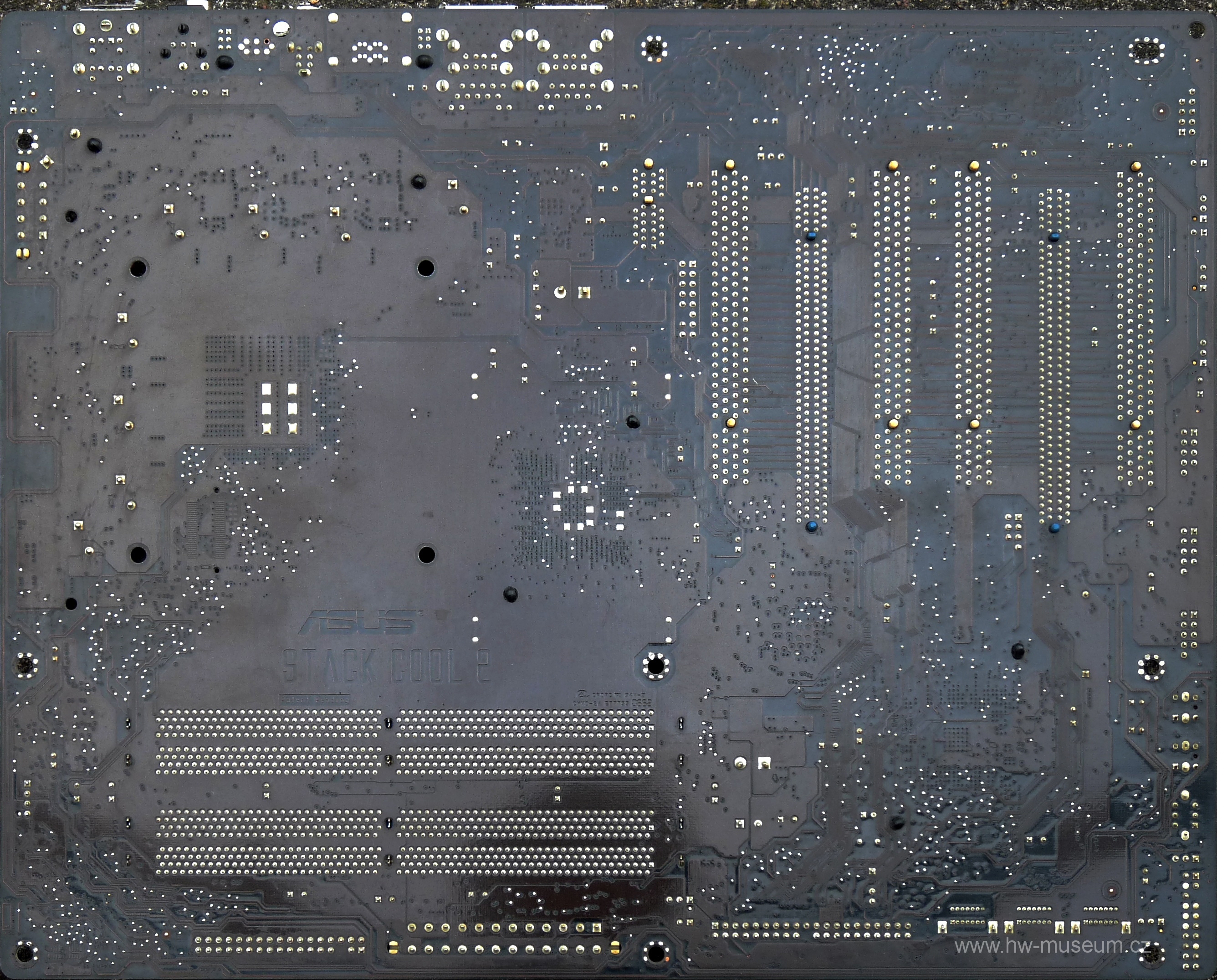

Asus Commando (back side)

Asus Commando (back side)
