Asus P5WDG2 WS Pro

Published: (last update )

Chipset
ModelIntel 975X
Northbridge82975X
SouthbridgeICH7R
Bus typeQDR, 1333 MHz, 64 bit
Bus bandwith10664 MB/s
RAM type (1)DDR2 800 MHz, 128 bit
RAM type (2)-
RAM bandwidth12800 MB/s
Maximum RAM8192 MB
Reg. / ECC supportno / yes
NB PCI-E lanes 16 (1.1)
AGP-
PCI support2.3
Integrated VGA-
The board
Socketsocket 775
Supported CPUsC2Q, C2D (45+65nm), Pentium D, Pentium 4
Fastest CPUCore 2 Quad QX6850
RAM slots4 × DDR2
AGP-
PCI-E x16, x8, x4, x12, -, -, -
PCI-X / PCI / ISA2, 2, -
IDE1 × ATA 100
SATA4 × (300) + 3 × (300)
USB / Firewire8 × (2.0) / 2
LAN2 × 1000 Mb/s
FormatATX (305x244)
Release date2006

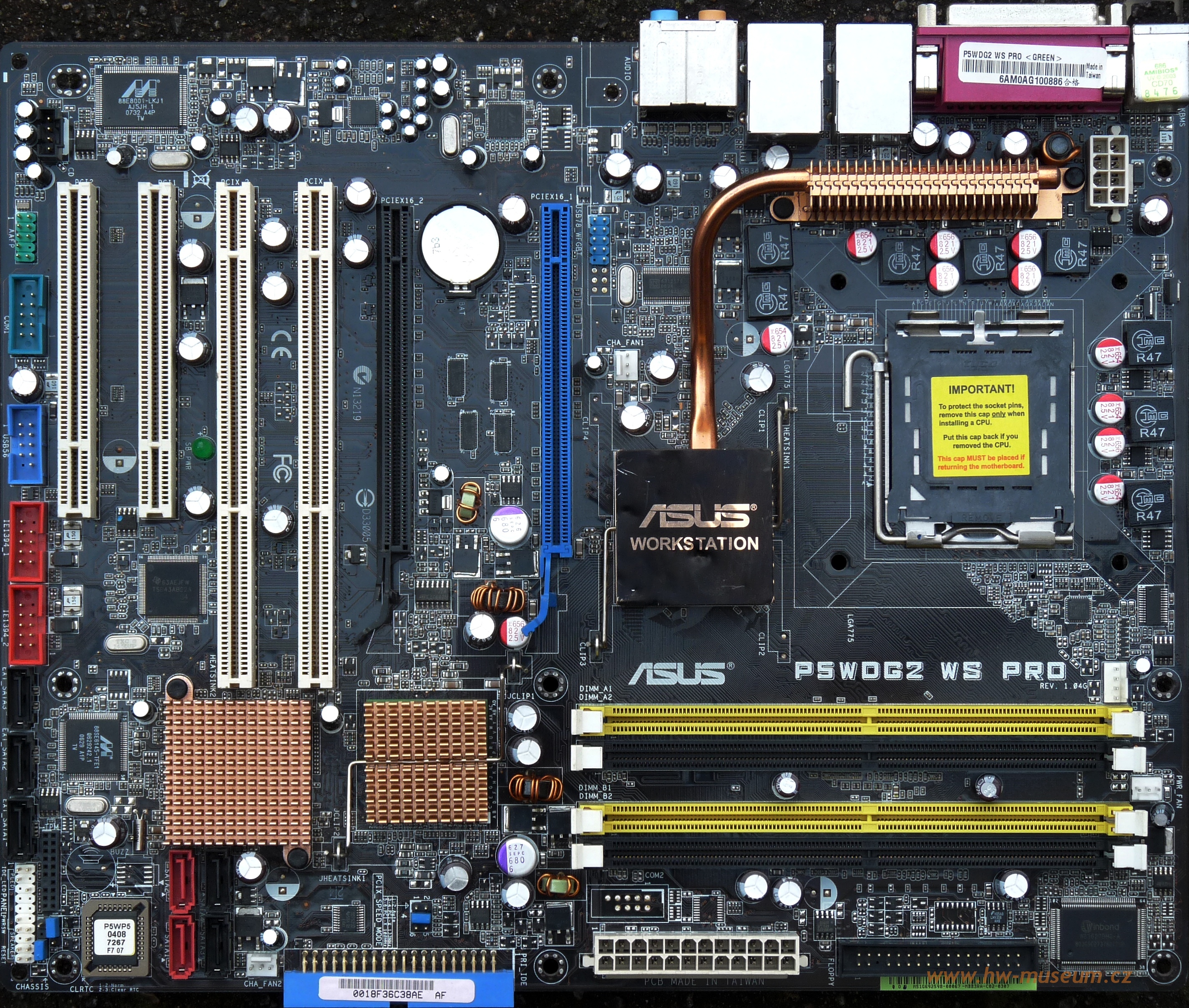

Asus P5WDG2 WS Pro (front side)

Asus P5WDG2 WS Pro (front side)

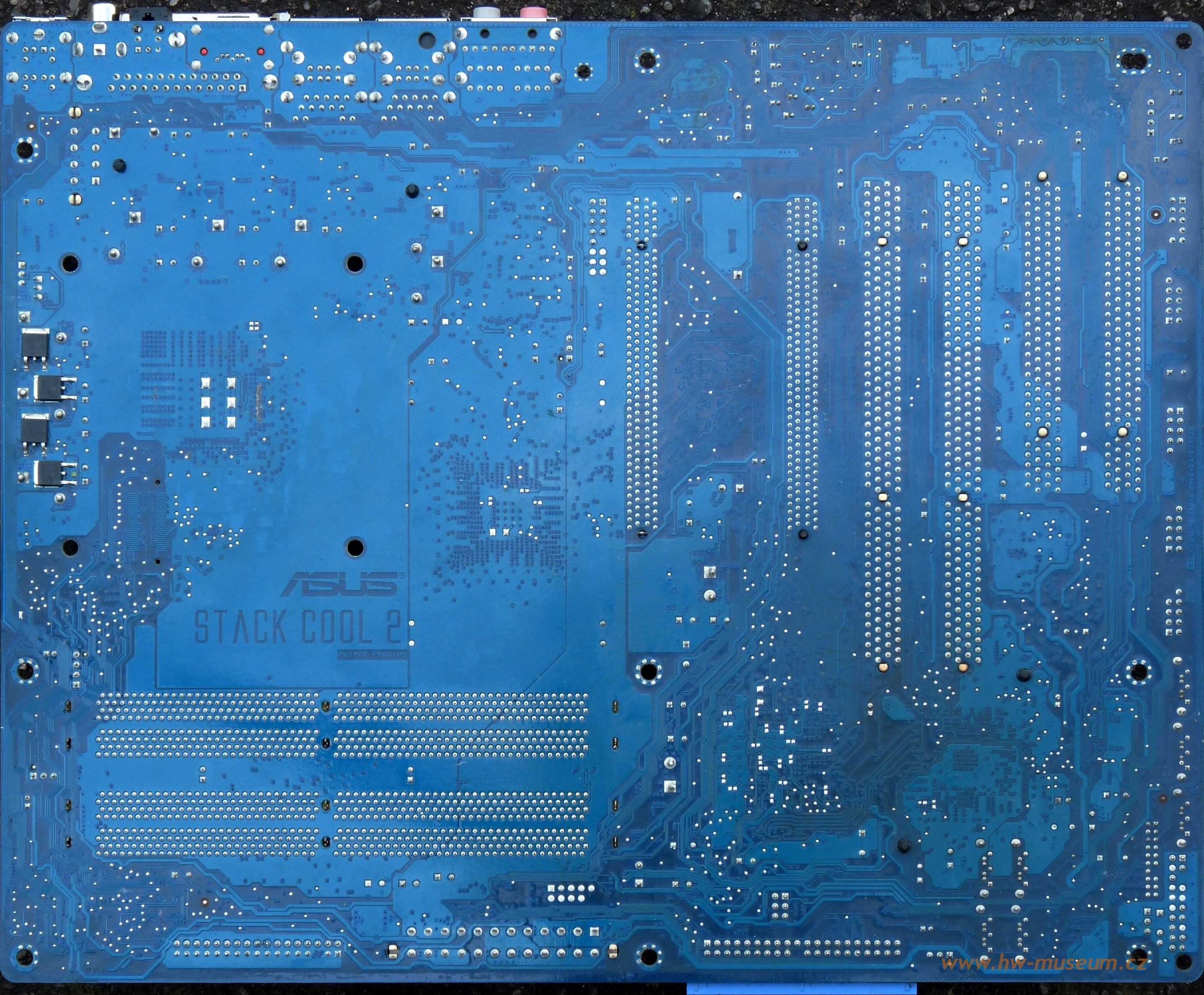

Asus P5WDG2 WS Pro (back side)

Asus P5WDG2 WS Pro (back side)
