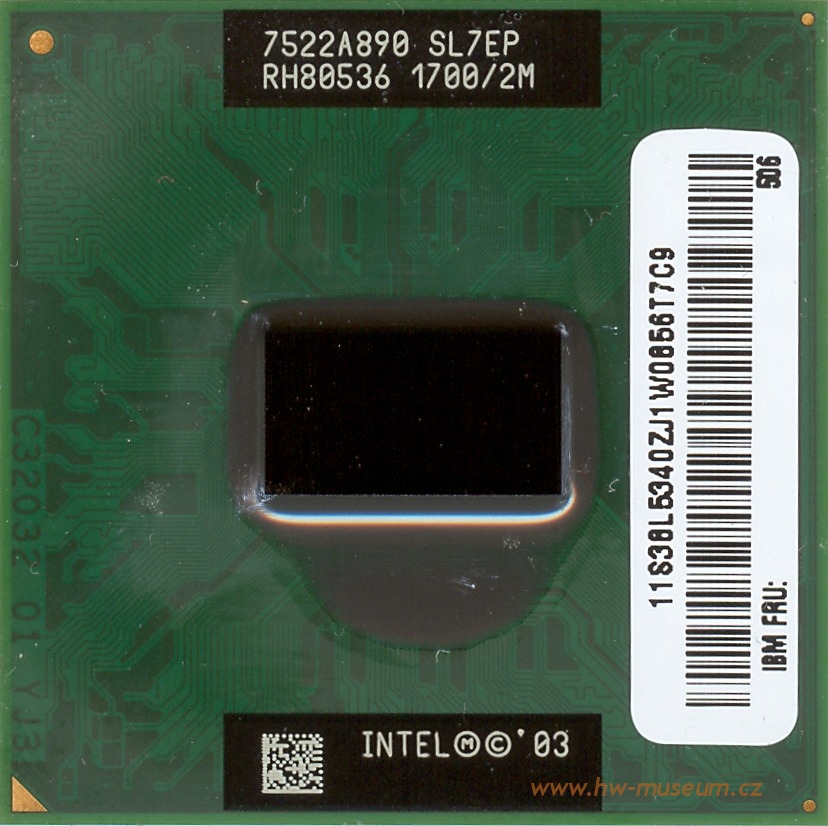

Intel Pentium M 735
Published: (last update )
| Core | |
|---|---|
| Code name | Dothan |
| Base clock | 1700 MHz |
| Turbo full / half / single | - |
| Base multiplier | 17× |
| Technology | 90 nm |
| Transistors | 144 million |
| Die size | 88 mm2 |
| Density | 1.64 M / mm2 |
| Cores / threads | 1 / 1 |
| Stepping | B1 |
| Cache | |
| L1 data cache | 32 kB |
| L1 inst. cache | 32 kB |
| L2 cache | 2048 kB |
| L2 cache type | On-die, full speed |
| L3 cache | - |
| L3 cache type | - |
| Instructions | |
|---|---|
| Basic inst. | x86, x87, MMX, SSE |
| Extended inst. | SSE2 |
| Extended inst. 2 | |
| Extended inst. 3 | |
| Extended inst. 4 | |
| Extended inst. 5 | |
| The CPU | |
| Bus type | QDR, 400 MHz, 64 bit |
| Bus bandwith | 3 200 MB/s |
| Socket | Socket 479 |
| Package | 478 pin Micro FCPGA |
| Package size | 35 x 35 mm |
| Manufacture date | 22nd week of 2005 |
| Voltage | 1.325 V |
| TDP | 21 W |
| Memory controller | - |
| Integrated VGA | - |
| Release date | 2004 |
