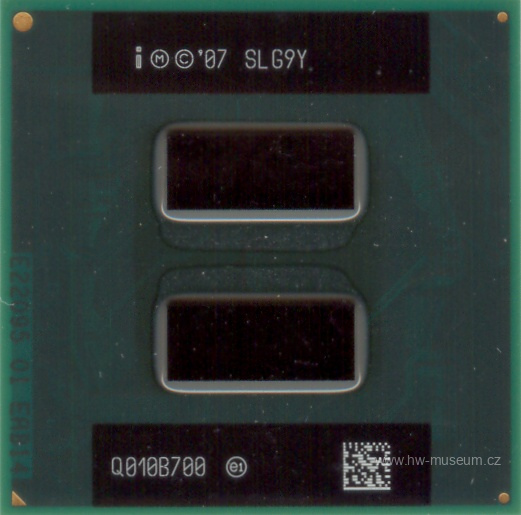

Intel Atom 330
Published: (last update )
Core | |
---|---|
Code name | Diamondville |
Base clock | 1600 MHz |
Turbo full / half / single | - |
Base multiplier | 12× |
Technology | 45 nm |
Transistors | 94 million |
Die size | 52 mm2 |
Density | 1.81 M / mm2 |
Cores / threads | 2 / 4 |
Stepping | C0 |
Cache | |
L1 data cache | 2 × 24 kB |
L1 inst. cache | 2 × 32 kB |
L2 cache | 2 × 512 kB |
L2 cache type | On-die, full speed |
L3 cache | - |
L3 cache type | - |
Instructions | |
---|---|
Basic inst. | x86, x87, MMX, SSE |
Extended inst. | SSE2, (S)SSE3 |
Extended inst. 2 | EM64T |
Extended inst. 3 | |
Extended inst. 4 | |
Extended inst. 5 | |
The CPU | |
Bus type | QDR, 533 MHz, 64 bit |
Bus bandwith | 4 264 MB/s |
Socket | Socket BGA437 |

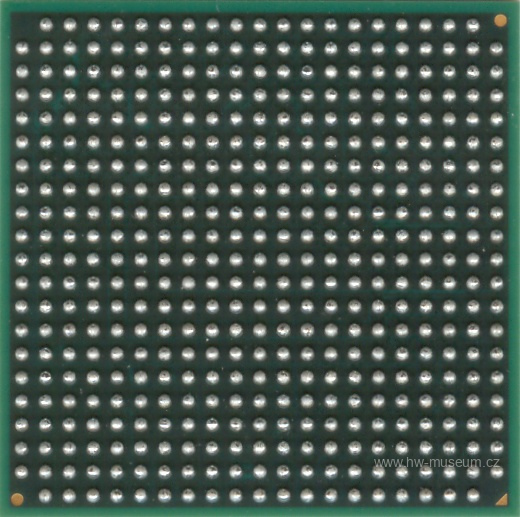

Package | 437 ball micro-FCBGA8 |
Package size | 22 x 22 mm |
Manufacture date | 10th week of 2010 |
Voltage | - |
TDP | 8 W |
Memory controller | - |
Integrated VGA | - |
Release date | 2008 |
