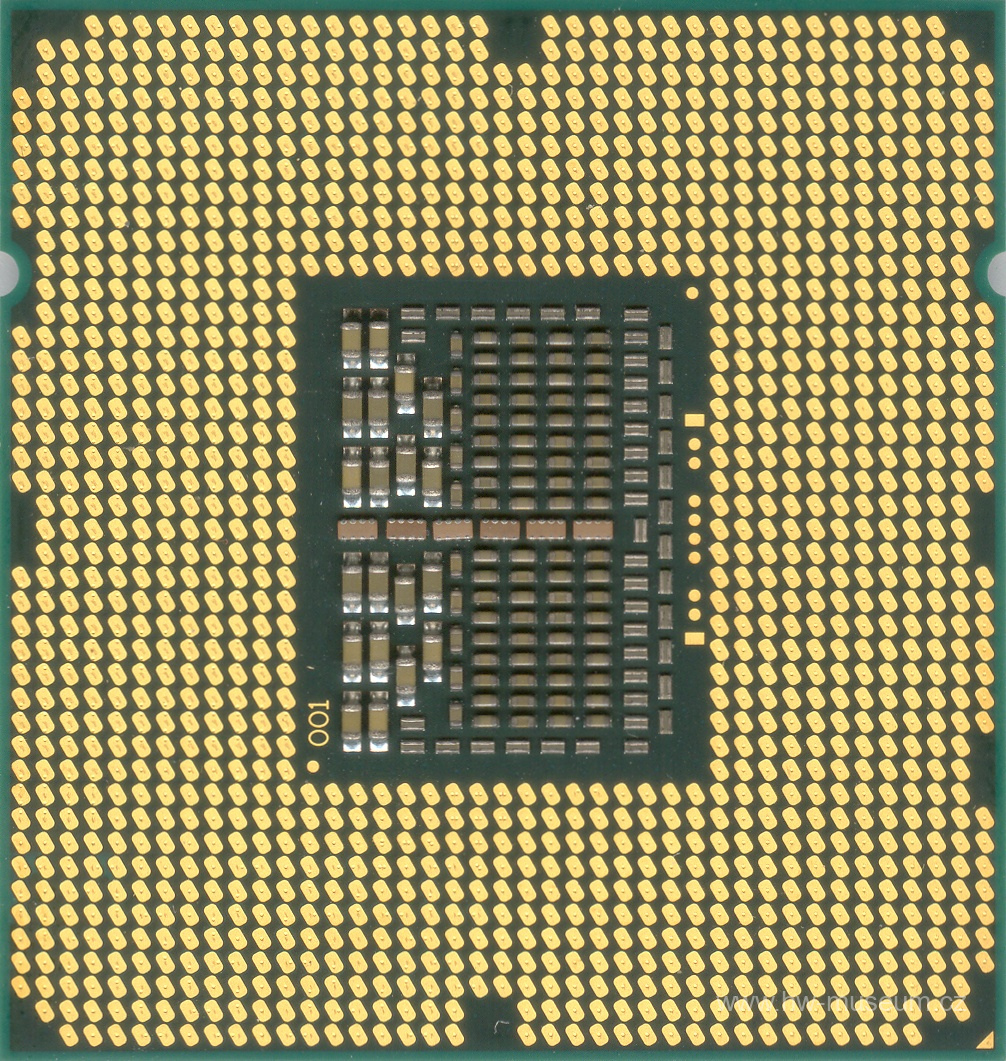

Intel Xeon W5590
Published: (last update )
| Core | |
|---|---|
| Code name | Gainestown |
| Base clock | 3333 MHz |
| Turbo full / half / single | 3466 | 3466 | 3600 MHz |
| Base multiplier | 25× |
| Technology | 45 nm |
| Transistors | 731 million |
| Die size | 263 mm2 |
| Density | 2.78 M / mm2 |
| Cores / threads | 4 / 8 |
| Stepping | D0 |
| Cache | |
| L1 data cache | 4 × 32 kB |
| L1 inst. cache | 4 × 32 kB |
| L2 cache | 4 × 256 kB |
| L2 cache type | On-die, full speed |
| L3 cache | 8192 kB |
| L3 cache type | On-die, 2666 MHz |
| Instructions | |
|---|---|
| Basic inst. | x86, x87, MMX, SSE |
| Extended inst. | SSE2, (S)SSE3 |
| Extended inst. 2 | EM64T, SSE(4.1, 4.2) |
| Extended inst. 3 | VT-x |
| Extended inst. 4 | |
| Extended inst. 5 | |
| The CPU | |
| Bus type | QPI, 6400 MHz, 32 bit |
| Bus bandwith | 25 600 MB/s |
| Socket | Socket 1366 |
| Package | 1366-land FC-LGA8 |
| Package size | 45 x 42.5 mm |
| Manufacture date | 2nd week of 2010 |
| Voltage | 1.3 V |
| TDP | 130 W |
| Memory controller | DDR3 1333, 192 bit |
| Integrated VGA | - |
| Release date | 2009 |
