Intel Pentium 4 1.5 GHz

Published: (last update )

Core
Code nameWillamette
Base clock1500 MHz
Turbo full / half / single-
Base multiplier15×
Technology180 nm
Transistors42 million
Die size217 mm2
Density0.19 M / mm2
Cores / threads1 / 1
SteppingD0
Cache
L1 data cache8 kB
L1 inst. cache12 kB
L2 cache256 kB
L2 cache typeOn-die, full speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87, MMX, SSE
Extended inst.SSE2
Extended inst. 2
Extended inst. 3
Extended inst. 4
Extended inst. 5
The CPU
Bus typeQDR, 400 MHz, 64 bit
Bus bandwith3 200 MB/s
SocketSocket 478
Package478 pin micro PGA
Package size35 x 35 mm
Manufacture date30th week of 2001
Voltage1.75 V
TDP58 W
Memory controller-
Integrated VGA-
Release date2001

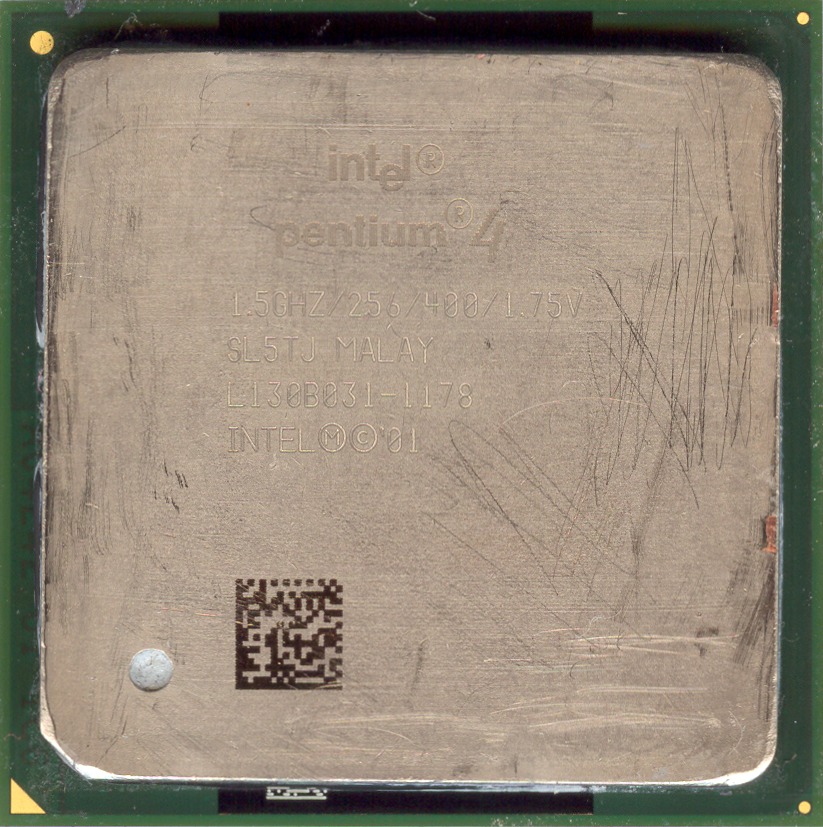

Intel Pentium 4 1.5 GHz (front side)

Intel Pentium 4 1.5 GHz (front side)

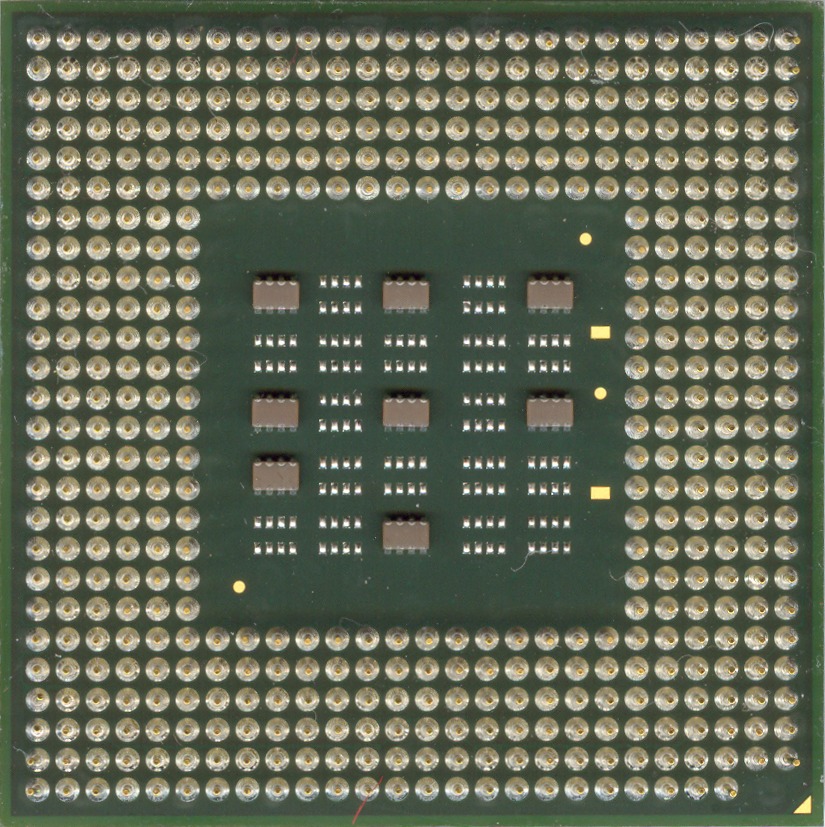

Intel Pentium 4 1.5 GHz (back side)

Intel Pentium 4 1.5 GHz (back side)
