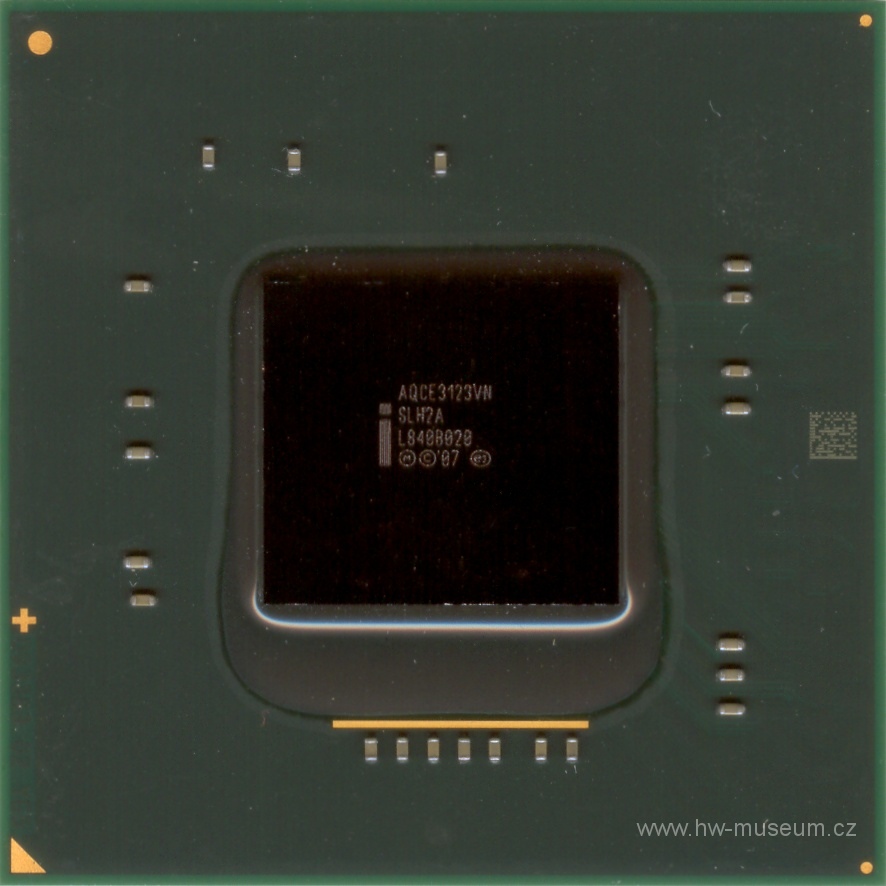

Intel CE3123
Published: (last update )
Note: This SOC integrates Pentium M CPU core, DDR2 controller, SGX535 grapics, audio, LAN, USB, SATA, security processor and two PCI-E lanes for peripherals.
| Core | |
|---|---|
| Code name | Canmore |
| Base clock | 800 MHz |
| Turbo full / half / single | - |
| Base multiplier | 8× |
| Technology | 90 nm |
| Transistors | 150 million |
| Die size | 208 mm2 |
| Density | 0.72 M / mm2 |
| Cores / threads | 1 / 1 |
| Stepping | - |
| Cache | |
| L1 data cache | 32 kB |
| L1 inst. cache | 32 kB |
| L2 cache | 256 kB |
| L2 cache type | On-die, full speed |
| L3 cache | - |
| L3 cache type | - |
| Instructions | |
|---|---|
| Basic inst. | x86, x87, MMX, SSE |
| Extended inst. | SSE2 |
| Extended inst. 2 | |
| Extended inst. 3 | |
| Extended inst. 4 | |
| Extended inst. 5 | |
| The CPU | |
| Bus type | SOC, 100 MHz |
| Bus bandwith | - |
| Socket | Socket BGA-1434 |

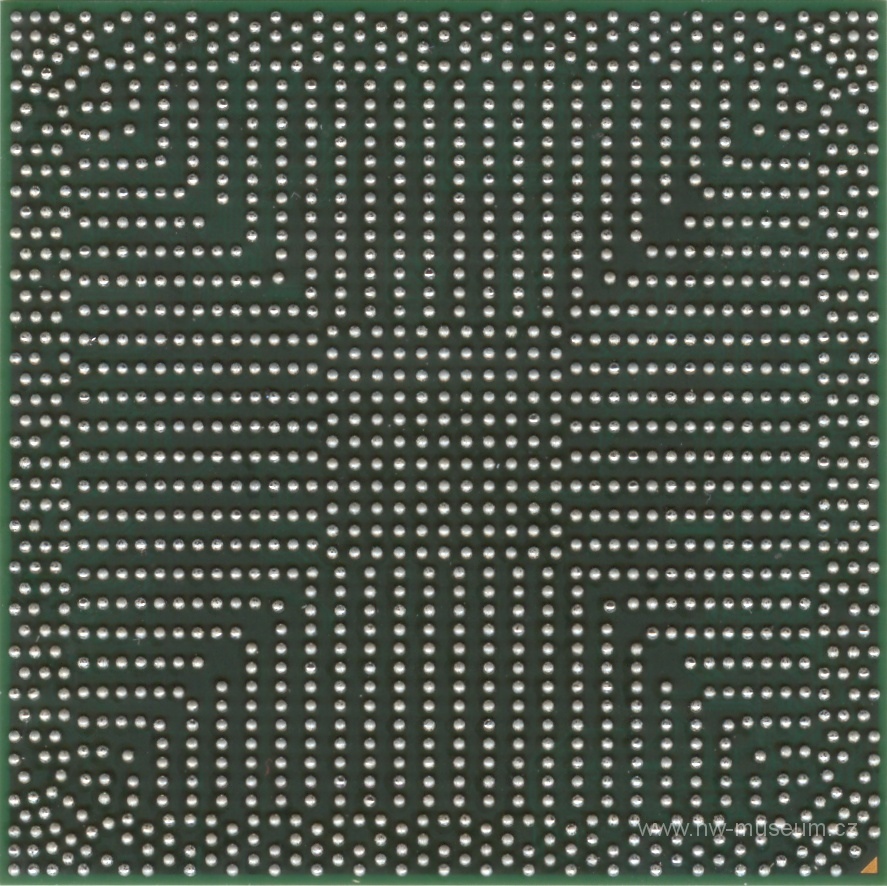

| Package | 1434 ball FCBGA |
| Package size | 37.5 x 37.5 mm |
| Manufacture date | 40th week of 2008 |
| Voltage | - |
| TDP | 9.8 W |
| Memory controller | DDR2 800, 96 bit |
| Integrated VGA | GMA 500 (SGX535) |
| Release date | 2008 |
