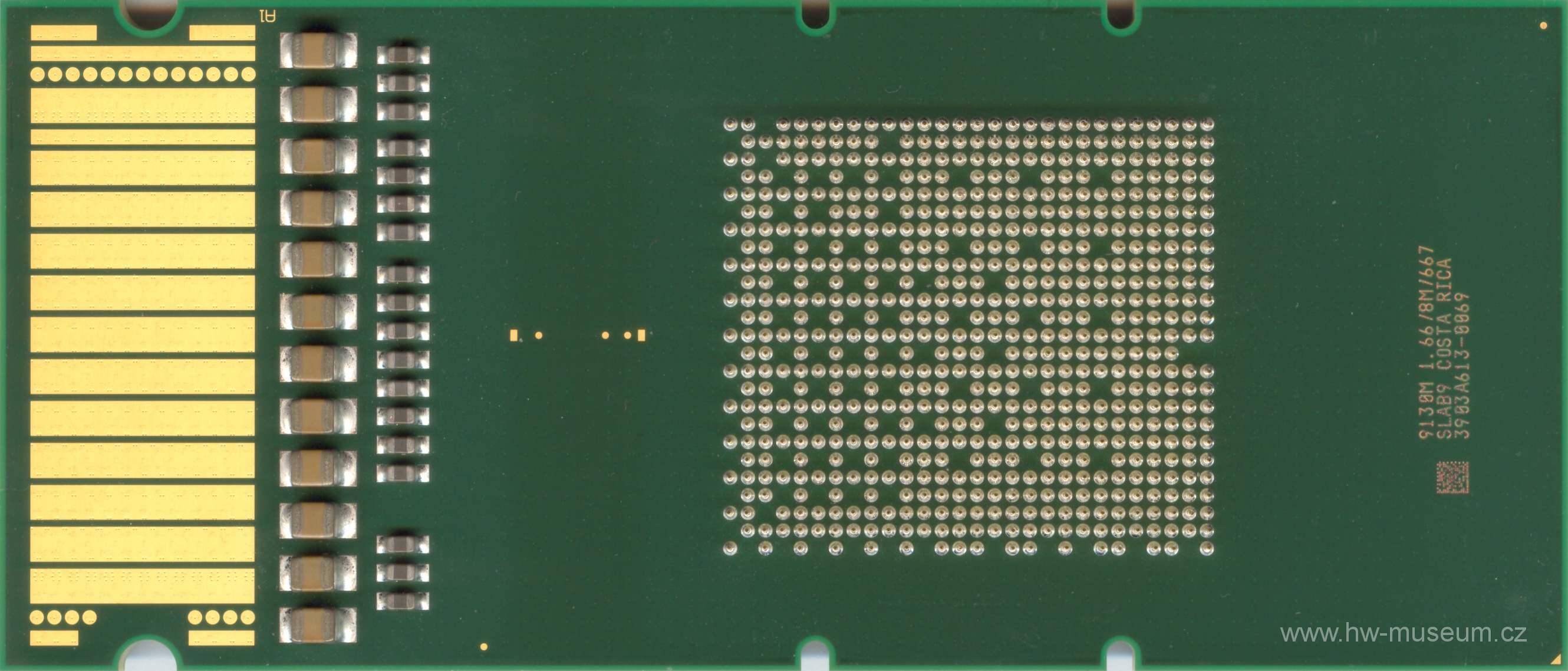

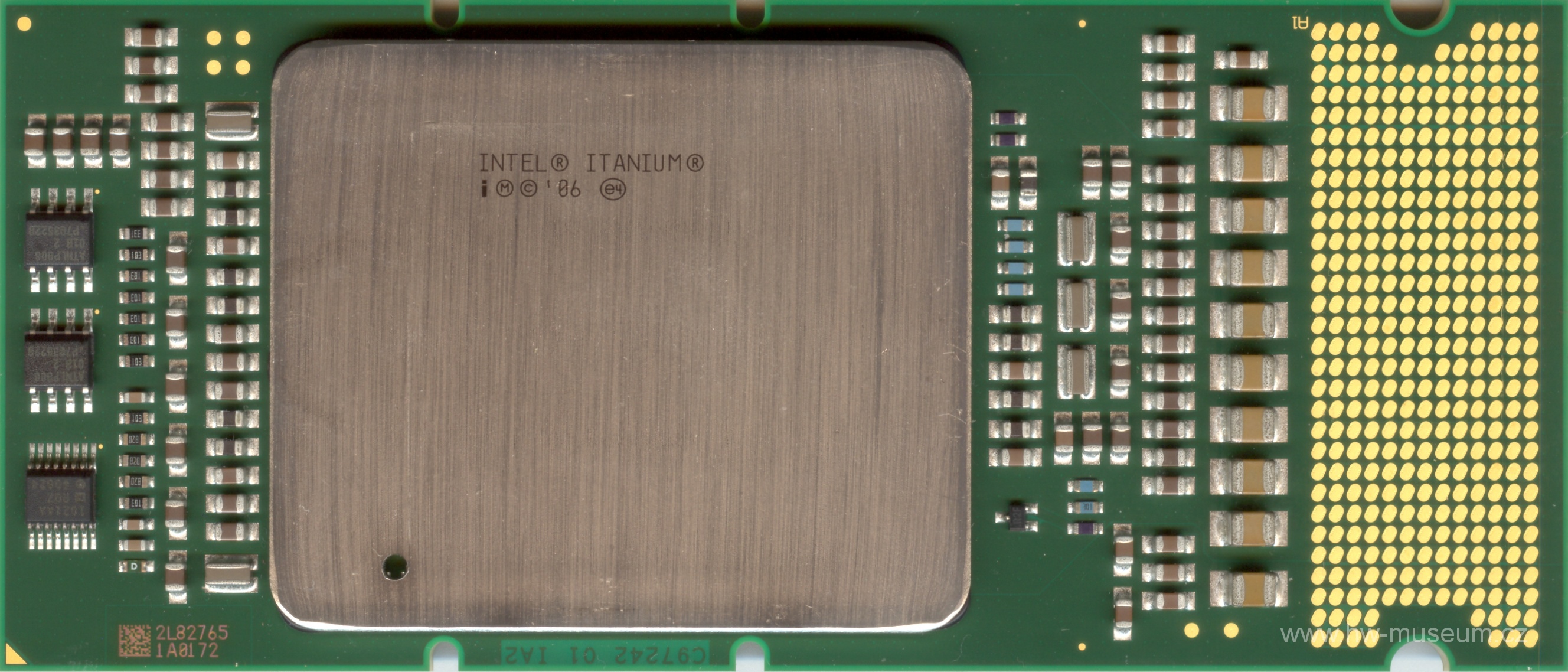

Intel Itanium 2 9130M
Published: (last update )
Core | |
---|---|
Code name | Montvale |
Base clock | 1667 MHz |
Turbo full / half / single | - |
Base multiplier | 10× |
Technology | 90 nm |
Transistors | 1720 million |
Die size | 596 mm2 |
Density | 2.89 M / mm2 |
Cores / threads | 2 / 2 |
Stepping | A1 |
Cache | |
L1 data cache | 2 × 16 kB |
L1 inst. cache | 2 × 16 kB |
L2 cache | 2 × 1280 kB |
L2 cache type | On-die, full speed |
L3 cache | 2 × 4096 kB |
L3 cache type | On-die, full speed |
Instructions | |
---|---|
Basic inst. | |
Extended inst. | |
Extended inst. 2 | |
Extended inst. 3 | |
Extended inst. 4 | |
Extended inst. 5 | |
The CPU | |
Bus type | QDR, 667 MHz, 128 bit |
Bus bandwith | 10 672 MB/s |
Socket | Socket 611 |
Package | PPGA611 |
Package size | 113 x 48.3 mm |
Manufacture date | 3rd week of 2009 |
Voltage | - |
TDP | 104 W |
Memory controller | - |
Integrated VGA | - |
Release date | 2007 |
