Intel Pentium III 933

Published: (last update )

Core
Code nameCoppermine
Base clock933 MHz
Turbo full / half / single-
Base multiplier
Technology180 nm
Transistors28 million
Die size105 mm2
Density0.27 M / mm2
Cores / threads1 / 1
SteppingcC0
Cache
L1 data cache16 kB
L1 inst. cache16 kB
L2 cache256 kB
L2 cache typeOn-die, full speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87, MMX, SSE
Extended inst.
Extended inst. 2
Extended inst. 3
Extended inst. 4
The CPU
Bus typeSDR, 133 MHz, 64 bit
Bus bandwith1 064 MB/s
SocketSocket 370
Package370 pin FC-PGA
Package size50 x 50 mm
Manufacture date47th week of 2000
Voltage1.7 V
TDP24.5 W
Memory controller-
Integrated VGA-
Release date2000

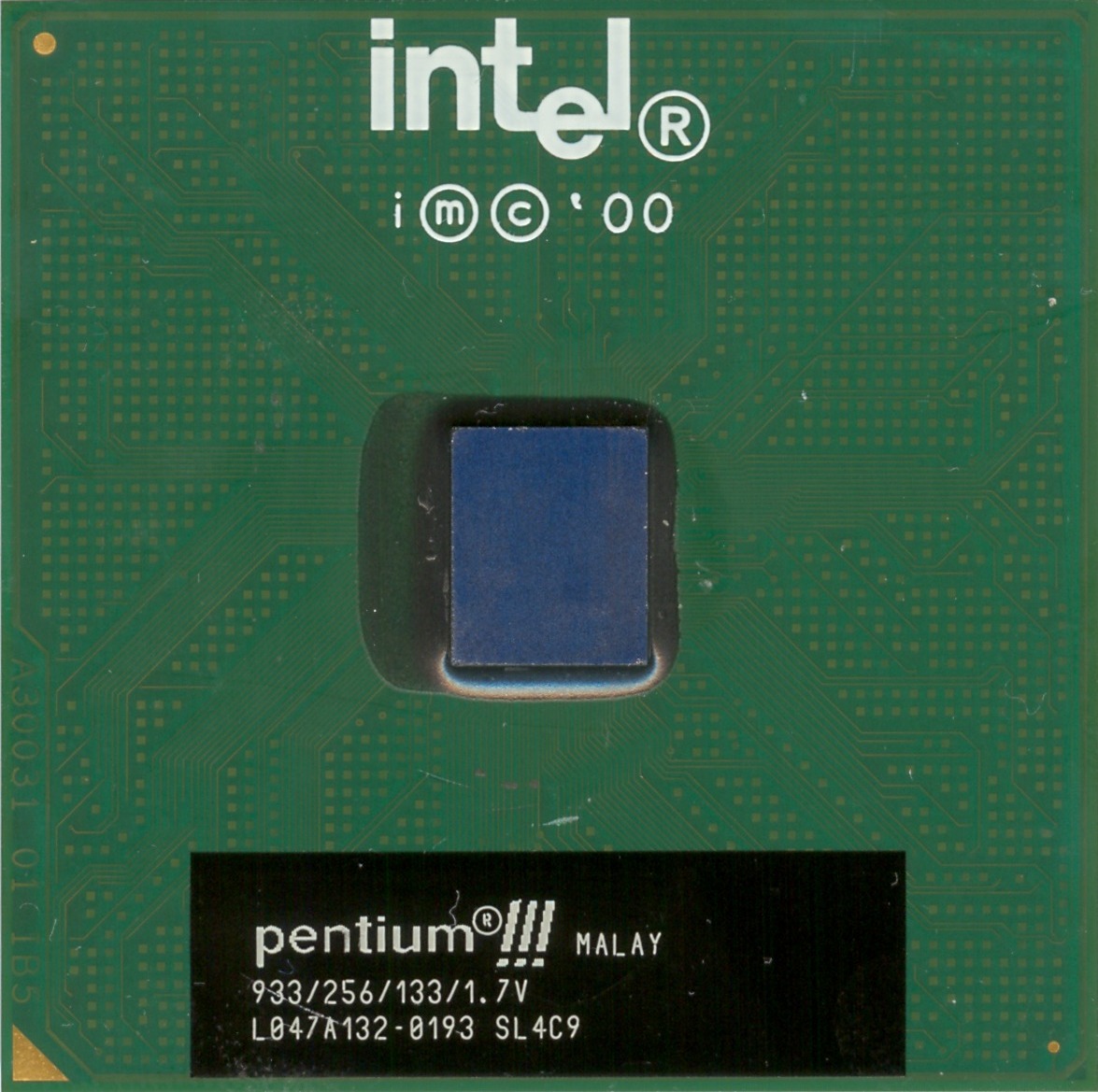

Intel Pentium III 933 (front side)

Intel Pentium III 933 (front side)

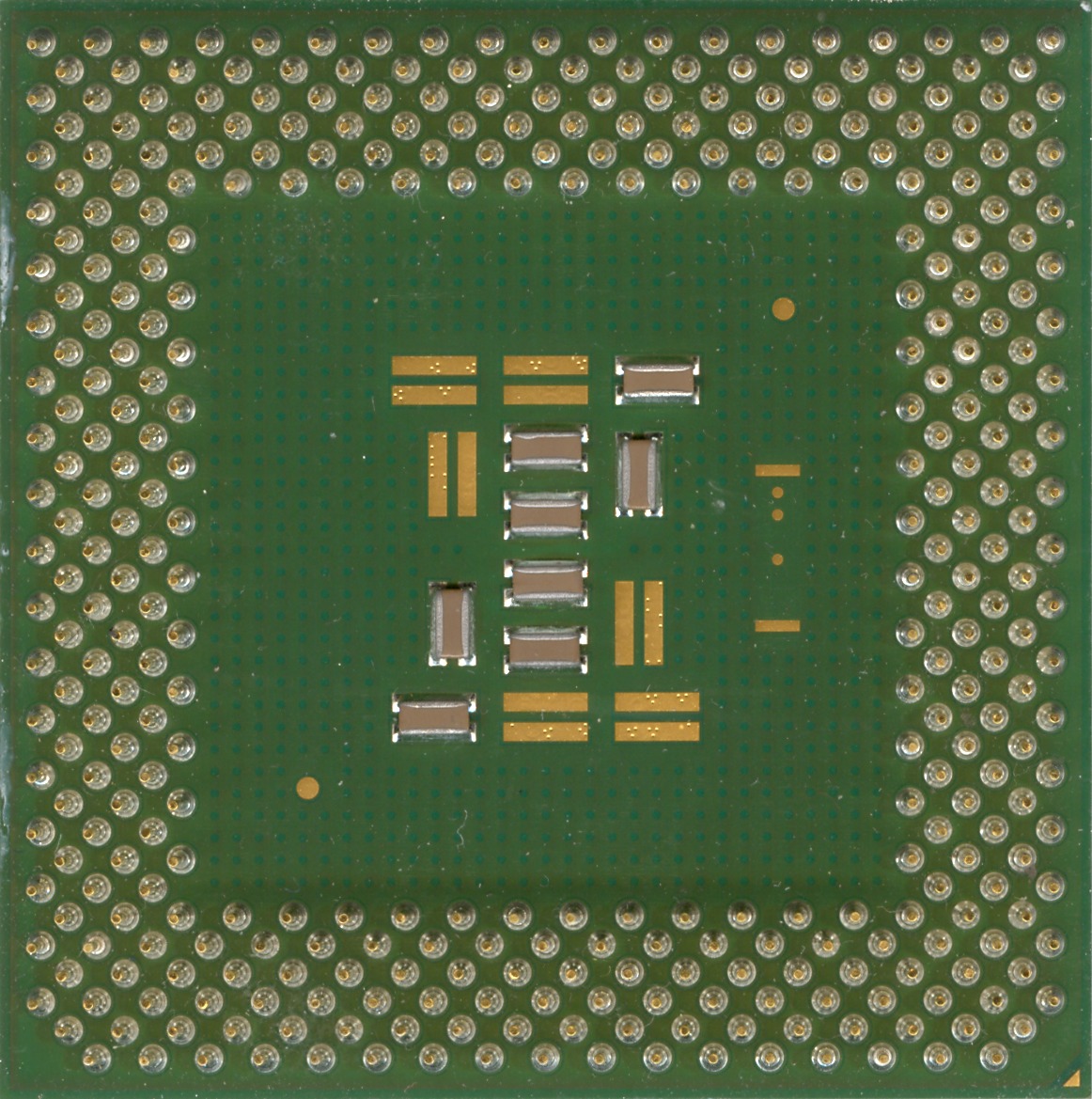

Intel Pentium III 933 (back side)

Intel Pentium III 933 (back side)
