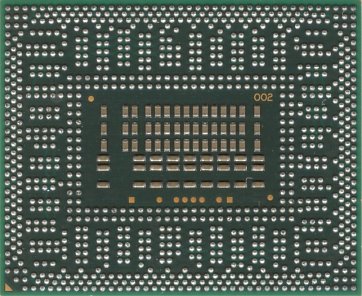

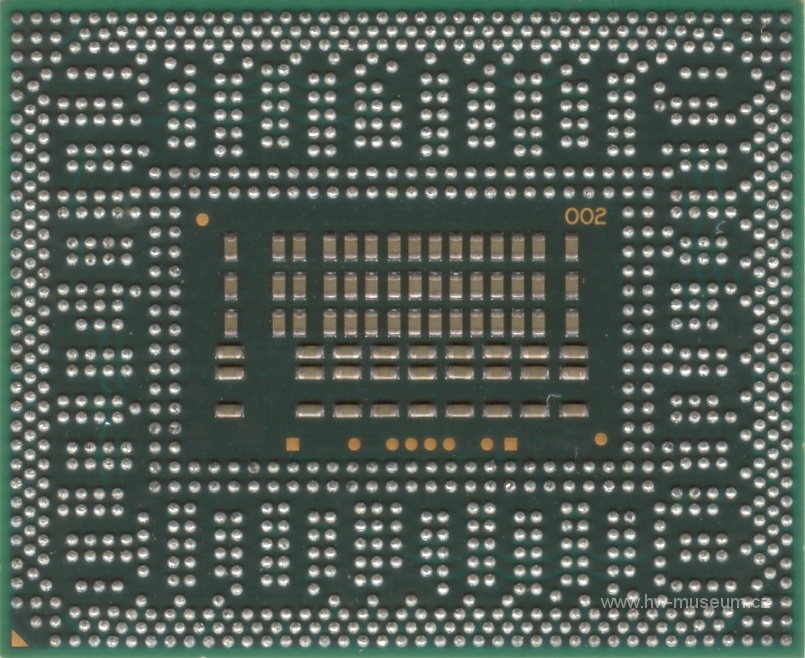

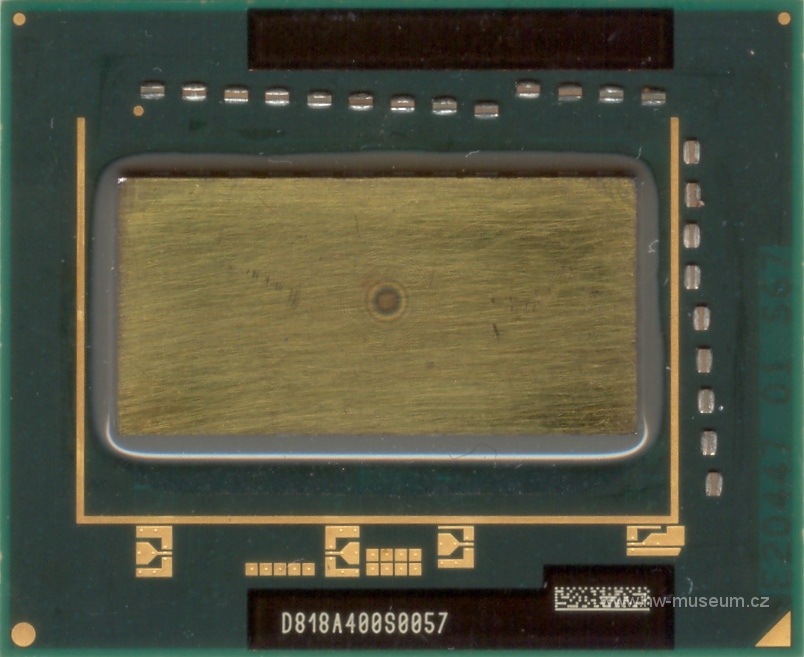

Intel Unknown Mobile ES
Published: (last update )
Note: Everything except the die size and package is a guess. This could be some never released Nehalem arch. mobile CPU. Possibly something like Lynfield with 2 cores. But it is very old for that, who knows
| Core | |
|---|---|
| Code name | Unknown |
| Base clock | - MHz |
| Turbo full / half / single | - |
| Base multiplier | -× |
| Technology | 45 nm |
| Transistors | - |
| Die size | 242 mm2 |
| Density | - |
| Cores / threads | 2 / 4 |
| Stepping | - |
| Cache | |
| L1 data cache | 2 × 32 kB |
| L1 inst. cache | 2 × 32 kB |
| L2 cache | 2 × 256 kB |
| L2 cache type | On-die, full speed |
| L3 cache | 4096 kB |
| L3 cache type | On-die, Unknown |
| Instructions | |
|---|---|
| Basic inst. | x86, x87, MMX, SSE |
| Extended inst. | SSE2, (S)SSE3 |
| Extended inst. 2 | EM64T, SSE(4.1, 4.2) |
| Extended inst. 3 | VT-x |
| Extended inst. 4 | |
| Extended inst. 5 | |
| The CPU | |
| Bus type | -, 100 MHz |
| Bus bandwith | - |
| Socket | Socket BGA990 |
| Package | BGA |
| Package size | 34 × 28 mm |
| Manufacture date | 18th week of 2008 |
| Voltage | - |
| TDP | - |
| Memory controller | DDR3 800, 128 bit |
| Integrated VGA | - |
| Release date | 2008 |
