AMD E2-3000M (ES)
Published: (last update )
| Core | |
|---|---|
| Code name | Llano (4C) |
| Base clock | 1800 MHz |
| Turbo full / half / single | 2400 | 2400 | 2400 MHz |
| Base multiplier | 18× |
| Technology | 32 nm |
| Transistors | 1176 million |
| Die size | 228 mm2 |
| Density | 5.16 M / mm2 |
| Cores / threads | 2 / 2 |
| Stepping | LN1-B0 |
| Cache | |
| L1 data cache | 2 × 64 kB |
| L1 inst. cache | 2 × 64 kB |
| L2 cache | 2 × 512 kB |
| L2 cache type | On-die, full speed |
| L3 cache | - |
| L3 cache type | - |
| Instructions | |
|---|---|
| Basic inst. | x86, x87, MMX(+), SSE |
| Extended inst. | 3DNow!, SSE2, SSE3 |
| Extended inst. 2 | x86-64, SSE4a |
| Extended inst. 3 | AMD-V |
| Extended inst. 4 | |
| Extended inst. 5 | |
| The CPU | |
| Bus type | UMI, 100 MHz |
| Bus bandwith | - |
| Socket | Socket FS1 |
| Package | 722 pin organic lidless micro PGA |
| Package size | 35 x 35 mm |
| Manufacture date | 48th week of 2010 |
| Voltage | 1.15 V |
| TDP | 35 W |
| Memory controller | DDR3 1333, 128 bit |
| Integrated VGA | Radeon HD 6380G |
| Release date | 2011 |

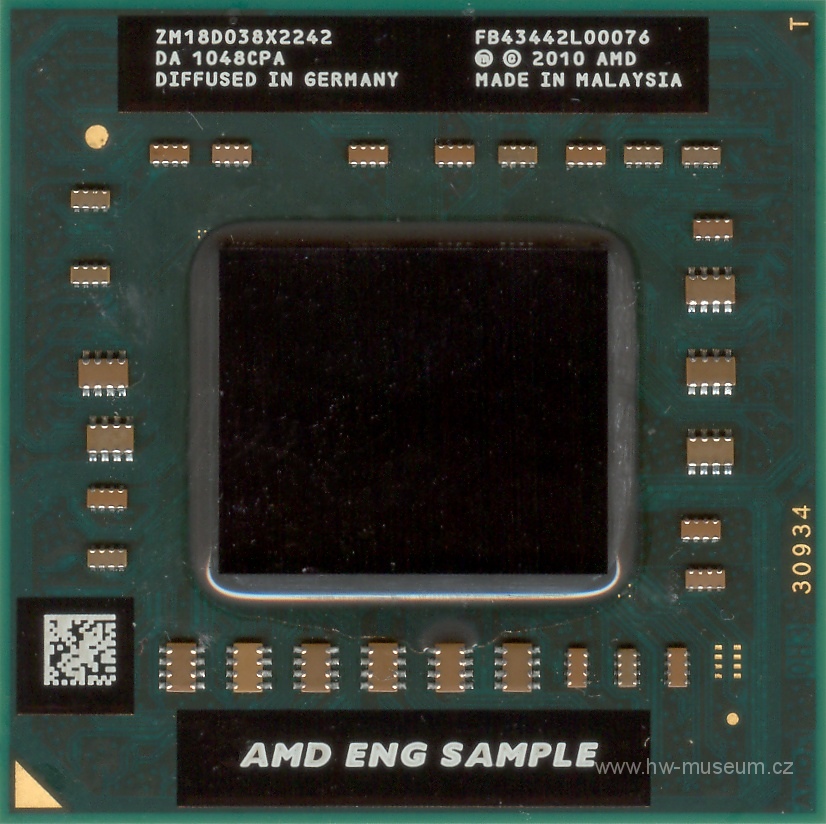

_F.jpg "Click to enlarge")

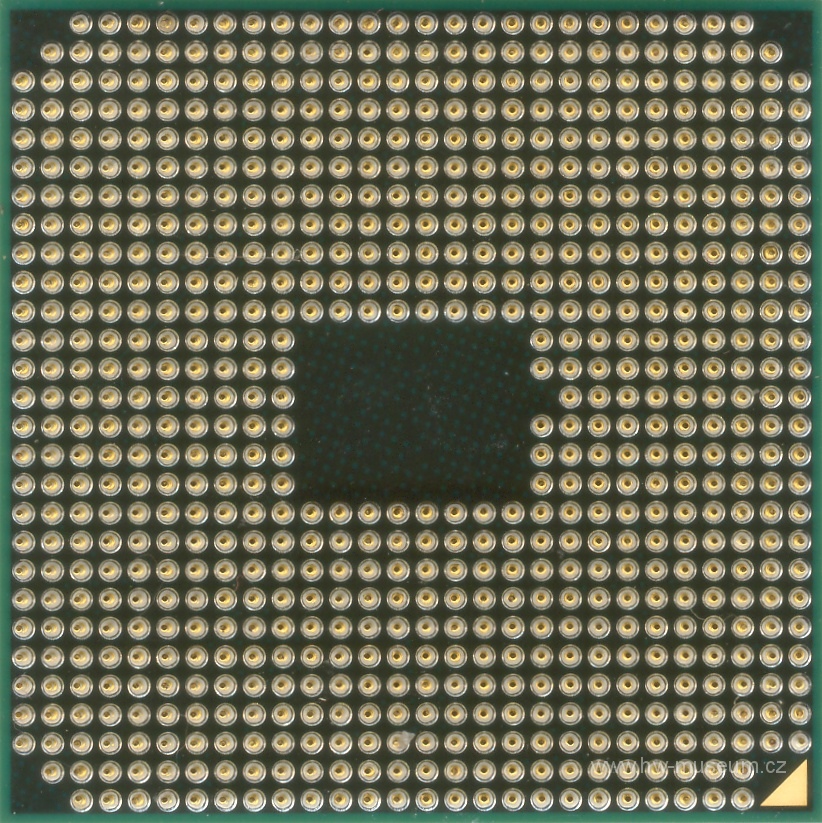

_B.jpg "Click to enlarge")
