AMD A6-3670K

Published: (last update )

Core
Code nameLlano
Base clock2700 MHz
Turbo full / half / single-
Base multiplier27×
Technology32 nm
Transistors1176 milion
Die size228 mm2
Cores / threads4 / 4
SteppingLN1-B0
Cache
L1 data cache4 × 64 kB
L1 inst. cache4 × 64 kB
L2 cache4 × 1024 kB
L2 cache typeOn-die, full speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87, MMX(+), SSE
Extended inst.3DNow!, SSE2, SSE3
Extended inst. 2x86-64, SSE4a
Extended inst. 3AMD-V
Extended inst. 4
The CPU
Bus typeUMI, 100 MHz
Bus bandwith-
SocketSocket FM1
Package905-pin lidded micro-PGA
Package size40 x 40 mm
Manufacture date5011
Voltage1.4 V
TDP100 W
Memory controllerDDR3 1866, 128 bit
Integrated VGARadeon HD 6530D
Release date2011

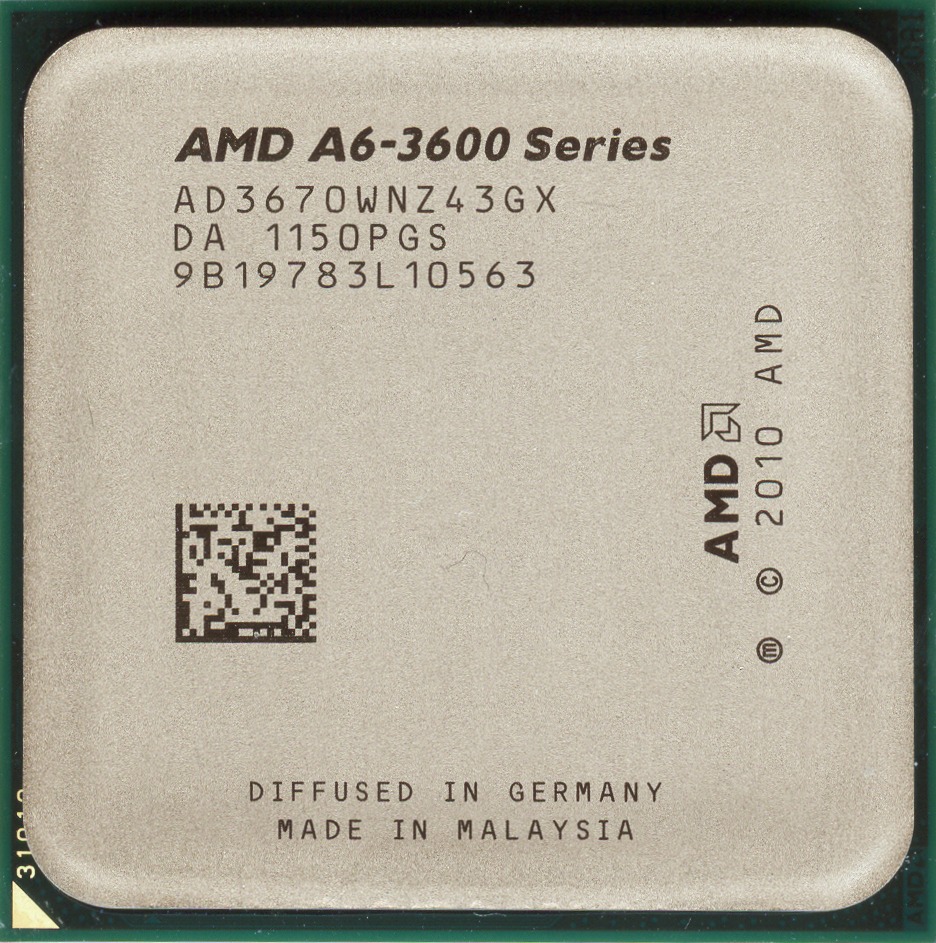

AMD A6-3670K (front side)

AMD A6-3670K (front side)

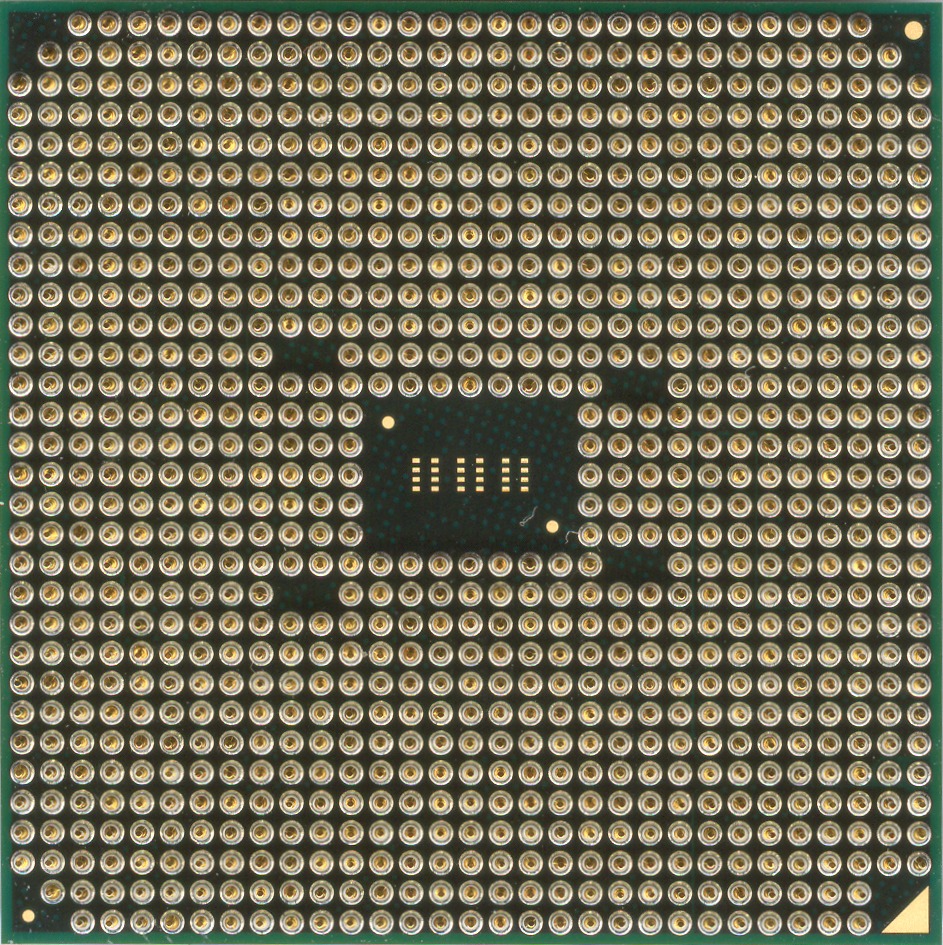

AMD A6-3670K (back side)

AMD A6-3670K (back side)
