Intel Pentium II 233

Published: (last update )

Core
Code nameKlamath
Base clock233 MHz
Turbo full / half / single-
Base multiplier3.5×
Technology350 nm
Transistors7.5 milion
Die size203 mm2
Cores / threads1 / 1
SteppingC1
Cache
L1 data cache16 kB
L1 inst. cache16 kB
L2 cache512 kB
L2 cache typeOn SECC, 1/2 speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87, MMX
Extended inst.
Extended inst. 2
Extended inst. 3
Extended inst. 4
The CPU
Bus typeSDR, 66 MHz, 64 bit
Bus bandwith528 MB/s
SocketSlot 1
Package242 Contact SECC
Package size140 x 62.8 mm
Manufacture date1098
Voltage2.8 V
TDP35 W
Memory controller-
Integrated VGA-
Release date1997

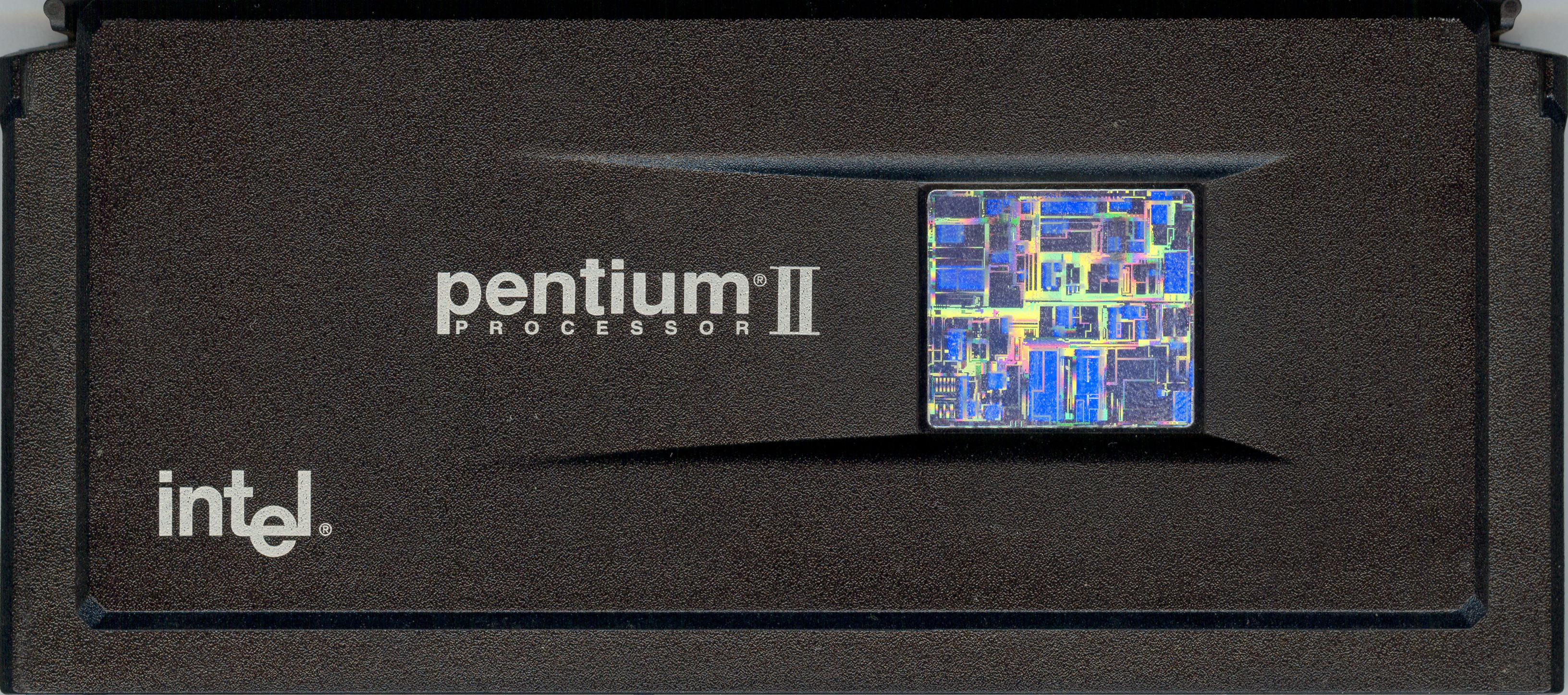

Intel Pentium II 233 (front side)

Intel Pentium II 233 (front side)

Intel Pentium II 233 (back side)

Intel Pentium II 233 (back side)
