Intel Pentium Pro 180

Published: (last update )

Core
Code nameP6 (256kB L2, 350 nm)
Base clock180 MHz
Turbo full / half / single-
Base multiplier
Technology350 nm
Transistors21 million
Die size398 mm2
Density0.053 M / mm2
Cores / threads1 / 1
Stepping-
Cache
L1 data cache8 kB
L1 inst. cache8 kB
L2 cache256 kB
L2 cache typeBuilt-in, full speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87
Extended inst.
Extended inst. 2
Extended inst. 3
Extended inst. 4
Extended inst. 5
The CPU
Bus typeSDR, 60 MHz, 64 bit
Bus bandwith480 MB/s
SocketSocket 8
Package387 Pin Dual Cavity PGA
Package size67.6 x 62.5 mm
Manufacture date30th week of 1996
Voltage3.3 V
TDP32 W
Memory controller-
Integrated VGA-
Release date1995

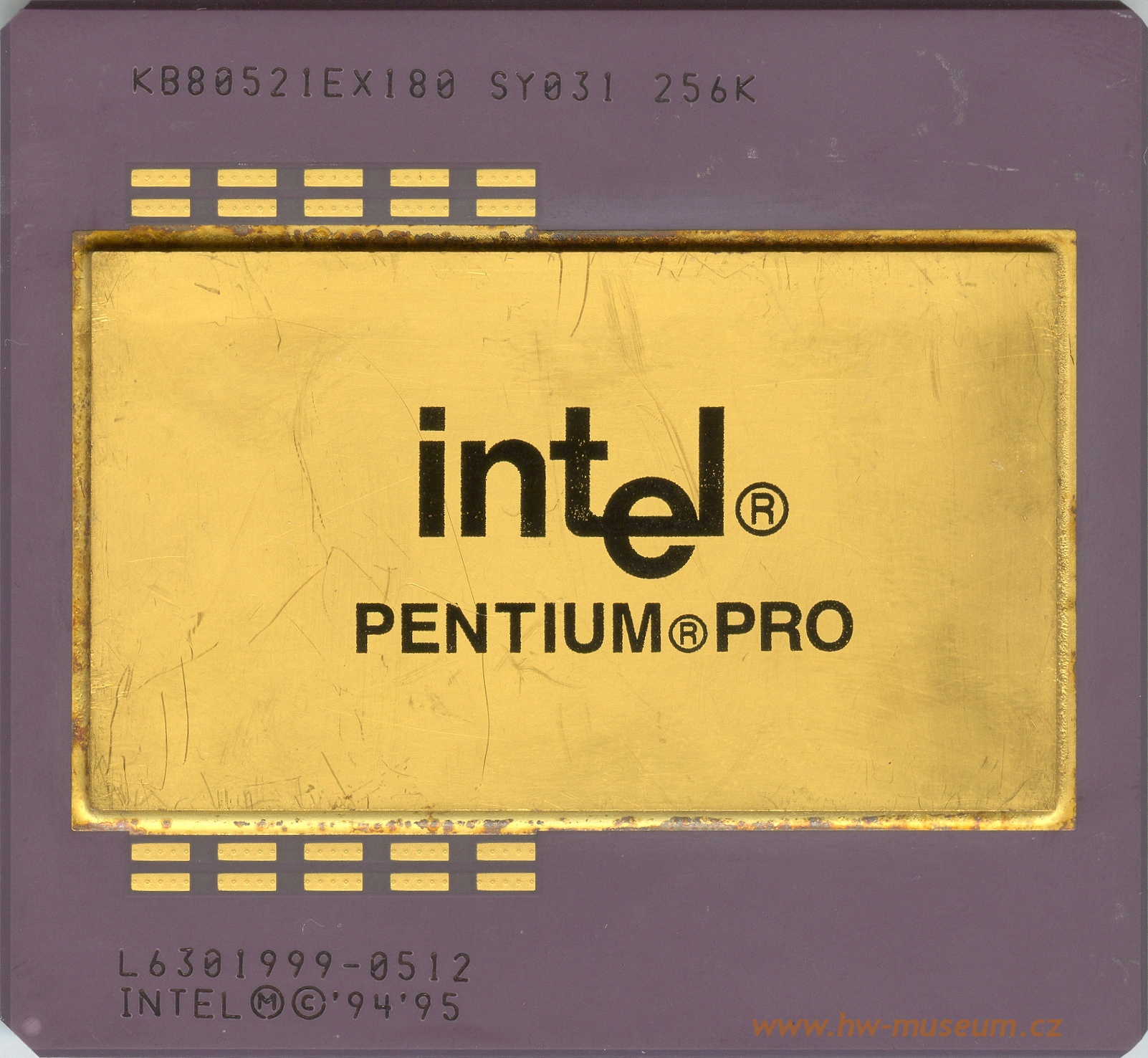

Intel Pentium Pro 180 (front side)

Intel Pentium Pro 180 (front side)

Intel Pentium Pro 180 (back side)

Intel Pentium Pro 180 (back side)
