Intel Pentium Pro 166

Published: (last update )

Core
Code nameP6 (512 kB L2, 350 nm)
Base clock166 MHz
Turbo full / half / single-
Base multiplier2.5×
Technology350 nm
Transistors36.5 million
Die size437 mm2
Density0.084 M / mm2
Cores / threads1 / 1
SteppingA1
Cache
L1 data cache8 kB
L1 inst. cache8 kB
L2 cache512 kB
L2 cache typeBuilt-in, full speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87
Extended inst.
Extended inst. 2
Extended inst. 3
Extended inst. 4
Extended inst. 5
The CPU
Bus typeSDR, 66 MHz, 64 bit
Bus bandwith528 MB/s
SocketSocket 8
Package387 Pin Dual Cavity PGA
Package size67.6 x 62.5 mm
Manufacture date50th week of 1996
Voltage3.3 V
TDP35 W
Memory controller-
Integrated VGA-
Release date1995

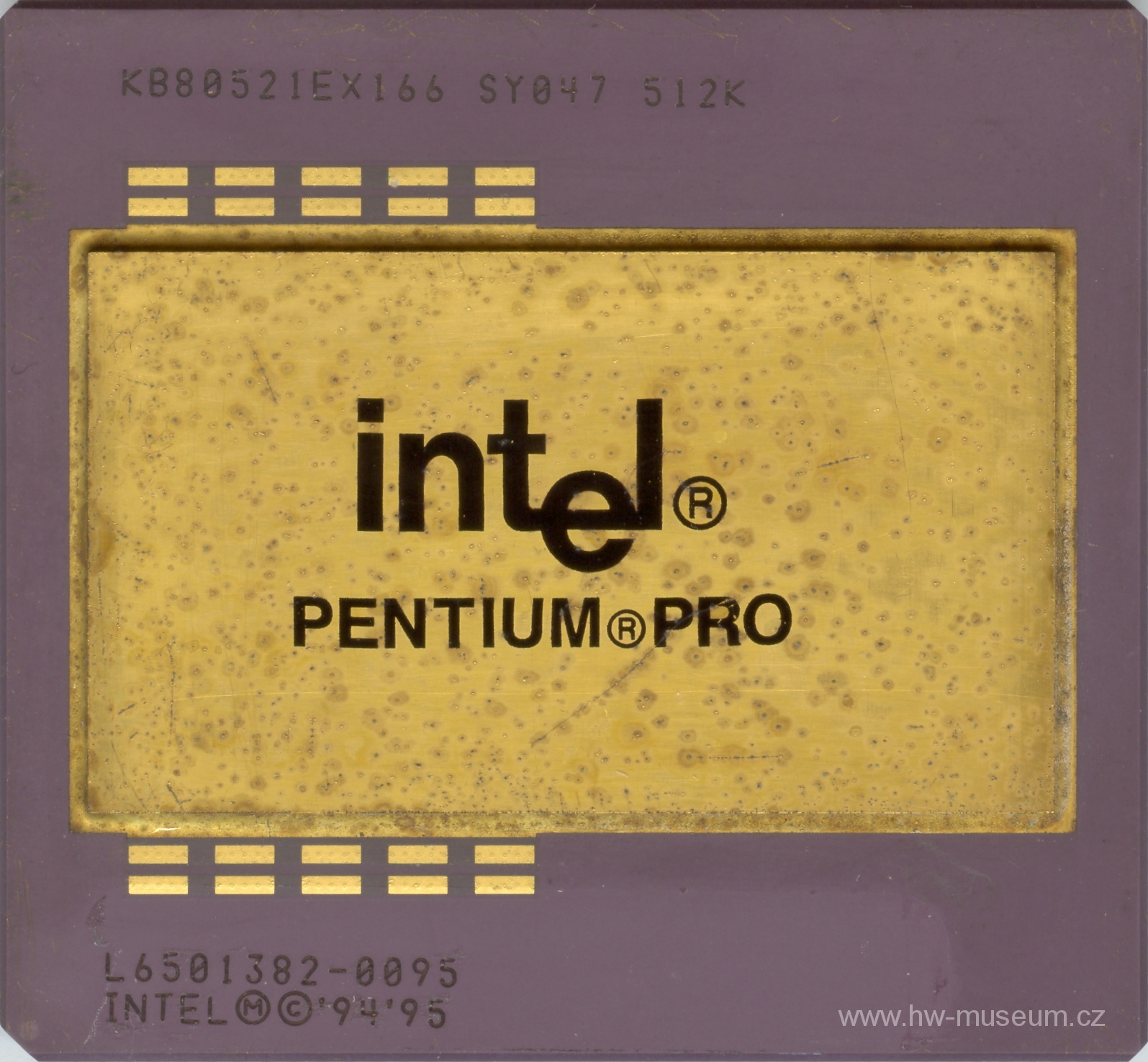

Intel Pentium Pro 166 (front side)

Intel Pentium Pro 166 (front side)

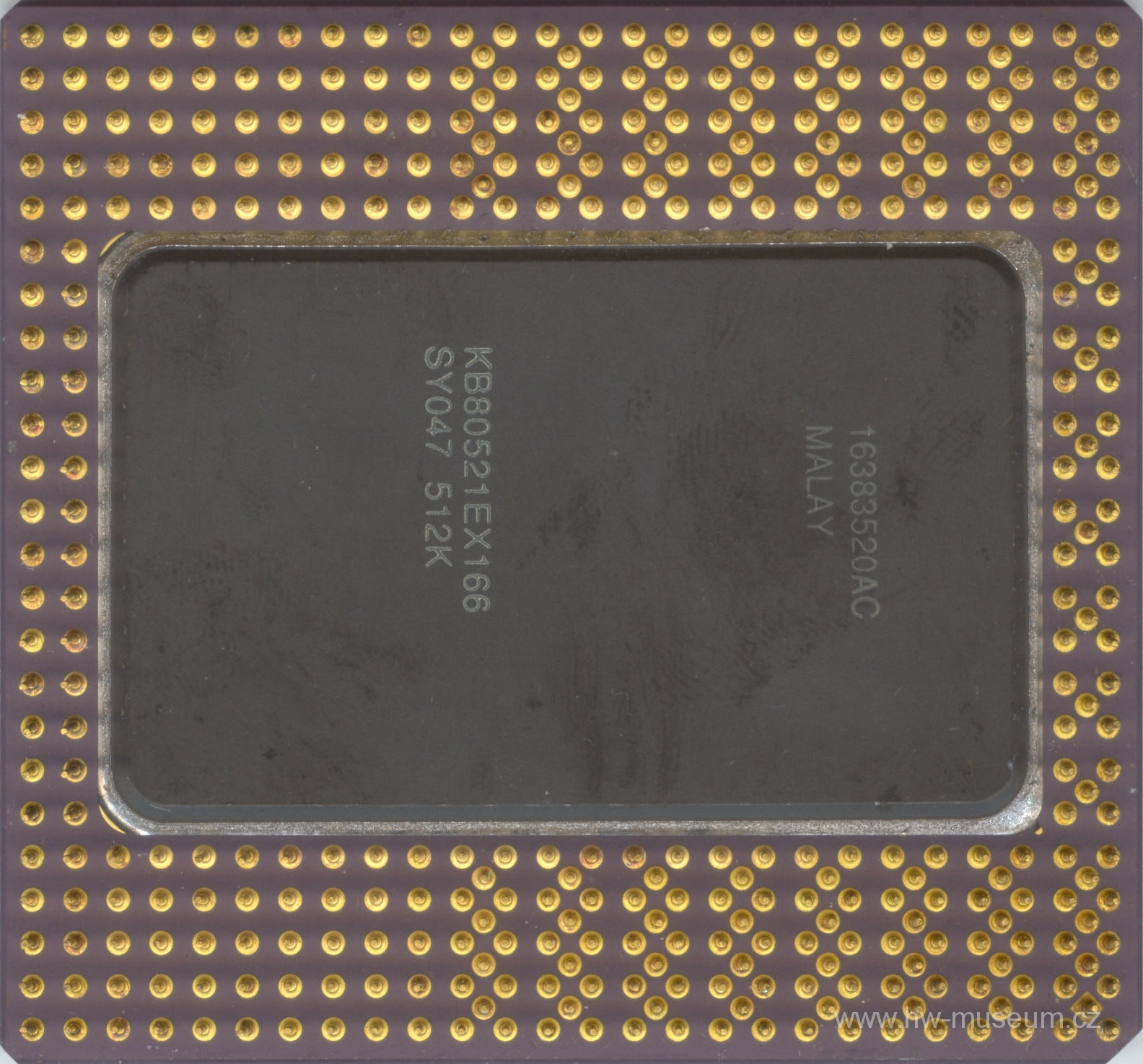

Intel Pentium Pro 166 (back side)

Intel Pentium Pro 166 (back side)
