AMD K5 PR90

Published: (last update )

Core
Code nameK5
Base clock90 MHz
Turbo full / half / single-
Base multiplier1.5×
Technology350 nm
Transistors4.3 million
Die size161 mm2
Density0.027 M / mm2
Cores / threads1 / 1
Stepping-
Cache
L1 data cache8 kB
L1 inst. cache16 kB
L2 cache-
L2 cache typeExternal, 60 MHz
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87
Extended inst.
Extended inst. 2
Extended inst. 3
Extended inst. 4
Extended inst. 5
The CPU
Bus typeSDR, 60 MHz, 64 bit
Bus bandwith480 MB/s
SocketSocket 5
Package296 pin Ceramic PGA
Package size50 x 50 mm
Manufacture date31st week of 1996
Voltage3.52 V
TDP14 W
Memory controller-
Integrated VGA-
Release date1996
AMD K5 PR90 (front side)

AMD K5 PR90 (front side)

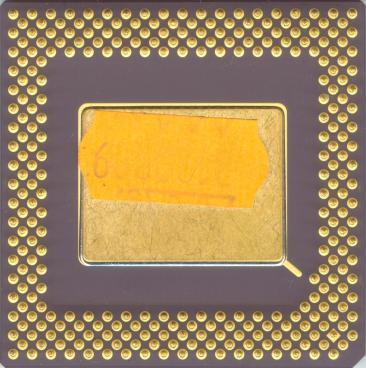

AMD K5 PR90 (back side)

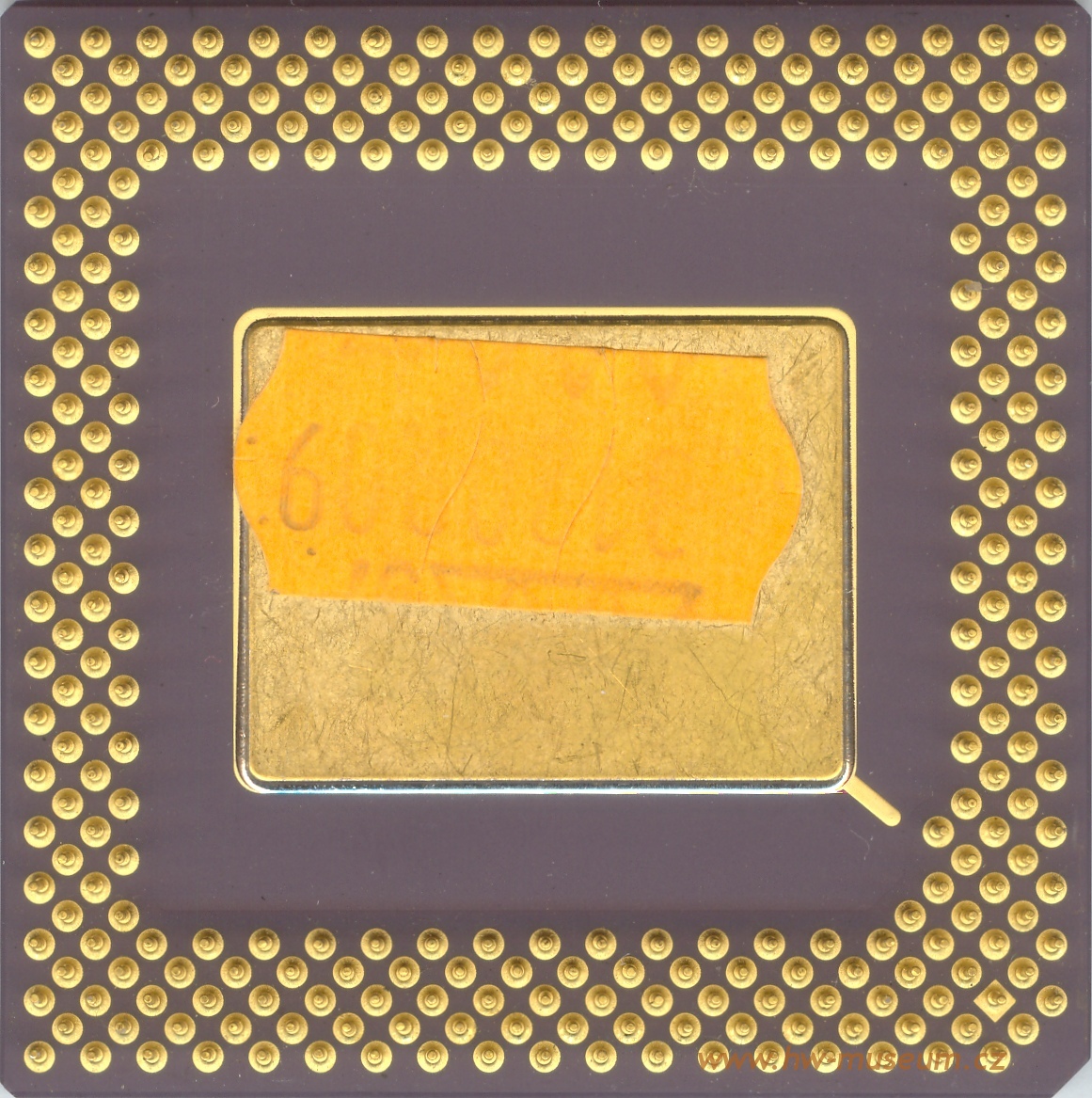

AMD K5 PR90 (back side)
