Gigabyte GeForce GTX 580 OC

Published: (last update )

GPU
GPU type GF110
Manufacturing process40 nm
Transistors3 000 million
Die size520 mm2
Density5.77 M / mm2
ROPs48
TMUs64
Pixel shaders-
Vertex shaders-
Unified shaders512
Clock855 MHz
Pixel fillrate41 040 MP/s
Texel fillrate54 720 MT/s
SP gigaflops1 751
DP gigaflops219
DirectX12
OpenGL4.6
OpenCL / Compute ver.1.2 / 2.0
Memory
Capacity1 536 MB
TypeGDDR5
Clock4 100 MHz
Bus width384 bit
Bandwith196 800 MB/s
Rated speed-
Brand-
The card
ManufacturerGigabyte
InterfacePCI-E 2.0 x16
Interface bandwith8 192 MB/s
TDP244 W
Analog I/O ports2 × DVI-I
Digital I/O ports2 × DVI-I, 1 × HDMI
Independent screens2
Manufacture date23rd week of 2011
Release date2010

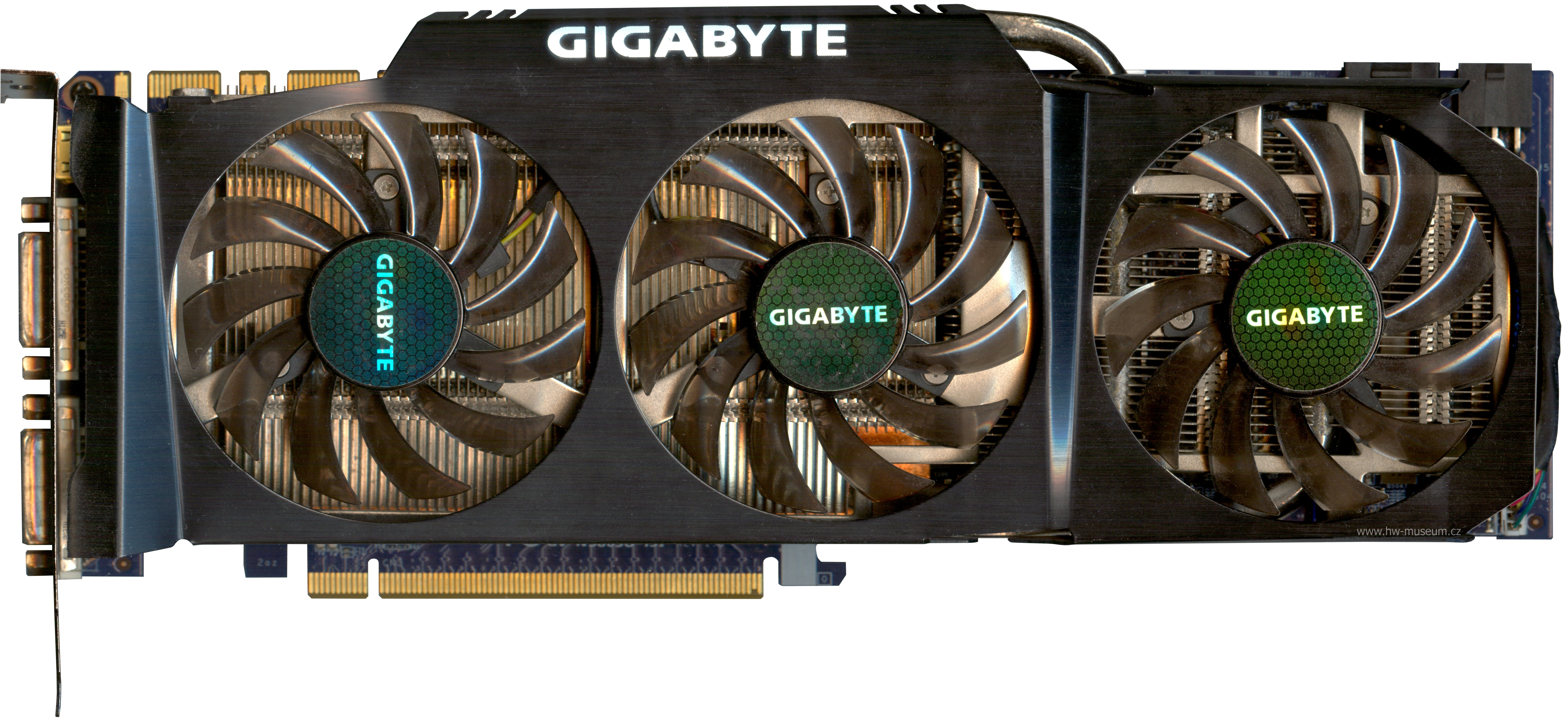

Gigabyte GeForce GTX 580 OC (front side)

Gigabyte GeForce GTX 580 OC (front side)

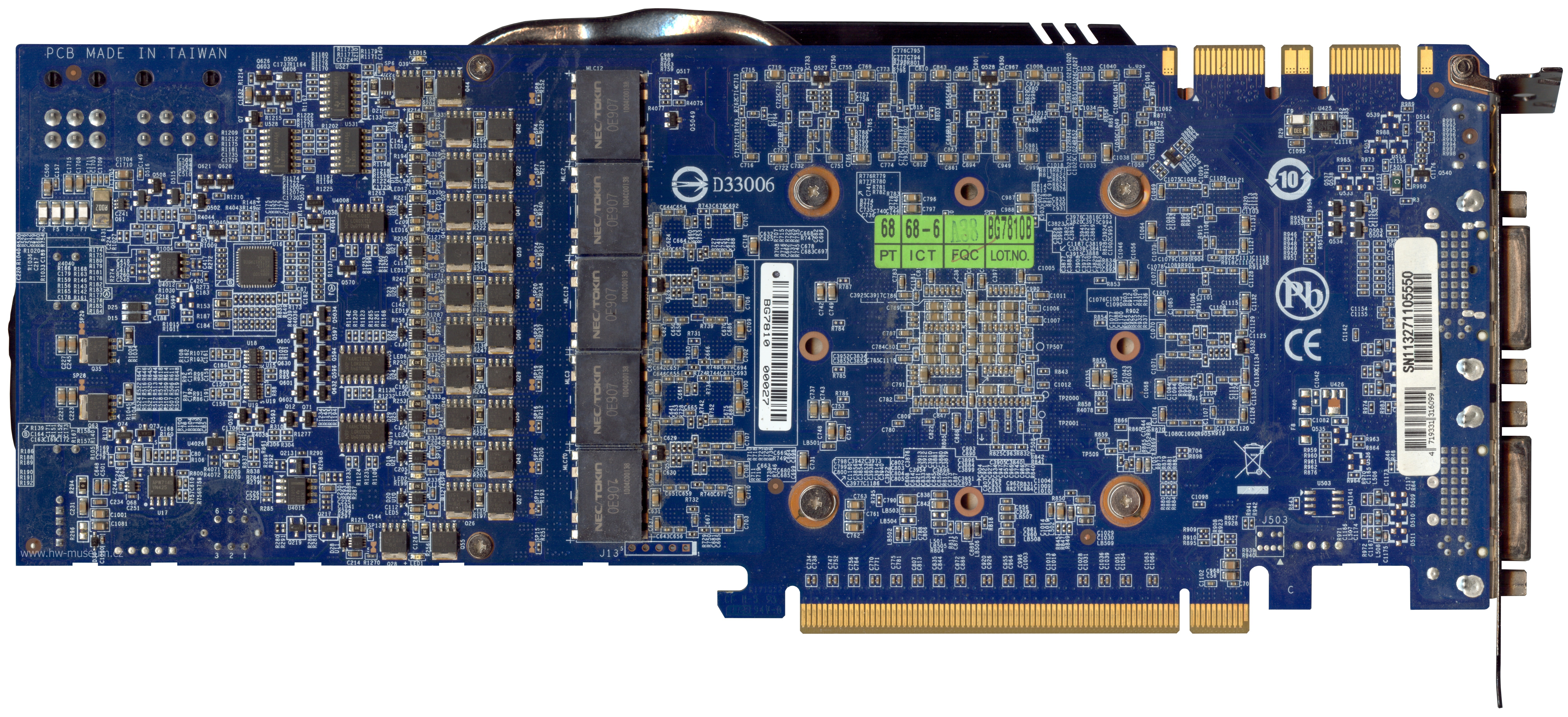

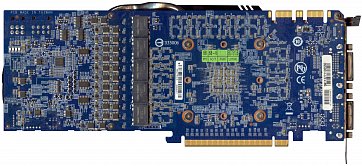

Gigabyte GeForce GTX 580 OC (back side)

Gigabyte GeForce GTX 580 OC (back side)
