Gigabyte Radeon HD 6950 OC (1 GB)

Published: (last update )

GPU
GPU type Cayman
Manufacturing process40 nm
Transistors2640 milion
Die size389 mm2
ROPs32
TMUs88
Pixel shaders-
Vertex shaders-
Unified shaders1408
Clock870 MHz
Pixel fillrate27840 MP/s
Texel fillrate76560 MT/s
SP gigaflops2450
DP gigaflops612
DirectX11
OpenGL4.3
OpenCL / Compute ver.1.2 / -
Memory
Capacity1024 MB
TypeGDDR5
Clock5000 MHz
Bus width256 bit
Bandwith160000 MB/s
Rated speed-
BrandHynix
The card
ManufacturerGigabyte
InterfacePCI-E 2.0 x16
Interface bandwith8192 MB/s
TDP200 W
Analog I/O ports1 × DVI-I
Digital I/O ports1 × DVI-D, 1 × DVI-I, 1 × HDMI, 1 × DP
Independent screens3
Rev
Release date2010

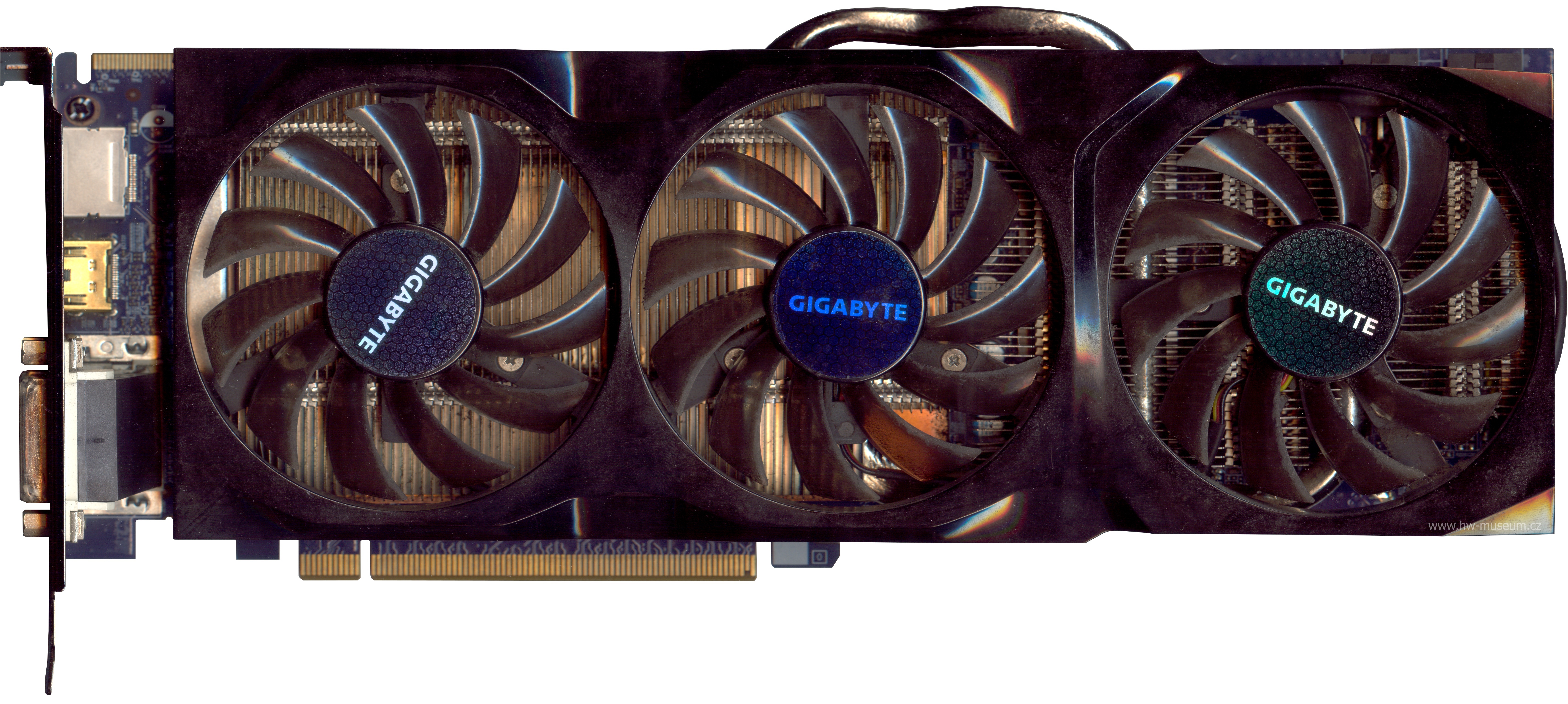

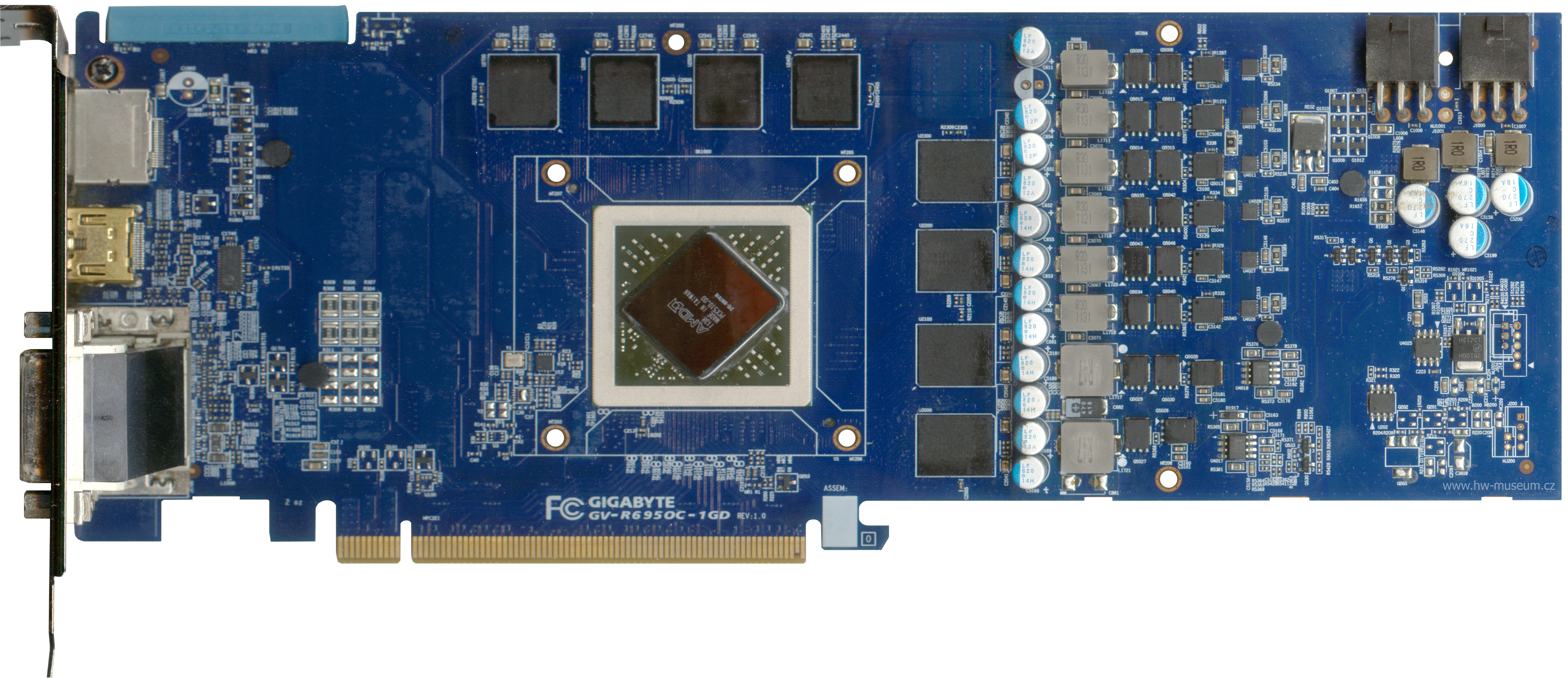

Gigabyte Radeon HD 6950 OC (1 GB) (front side)

Gigabyte Radeon HD 6950 OC (1 GB) (front side)

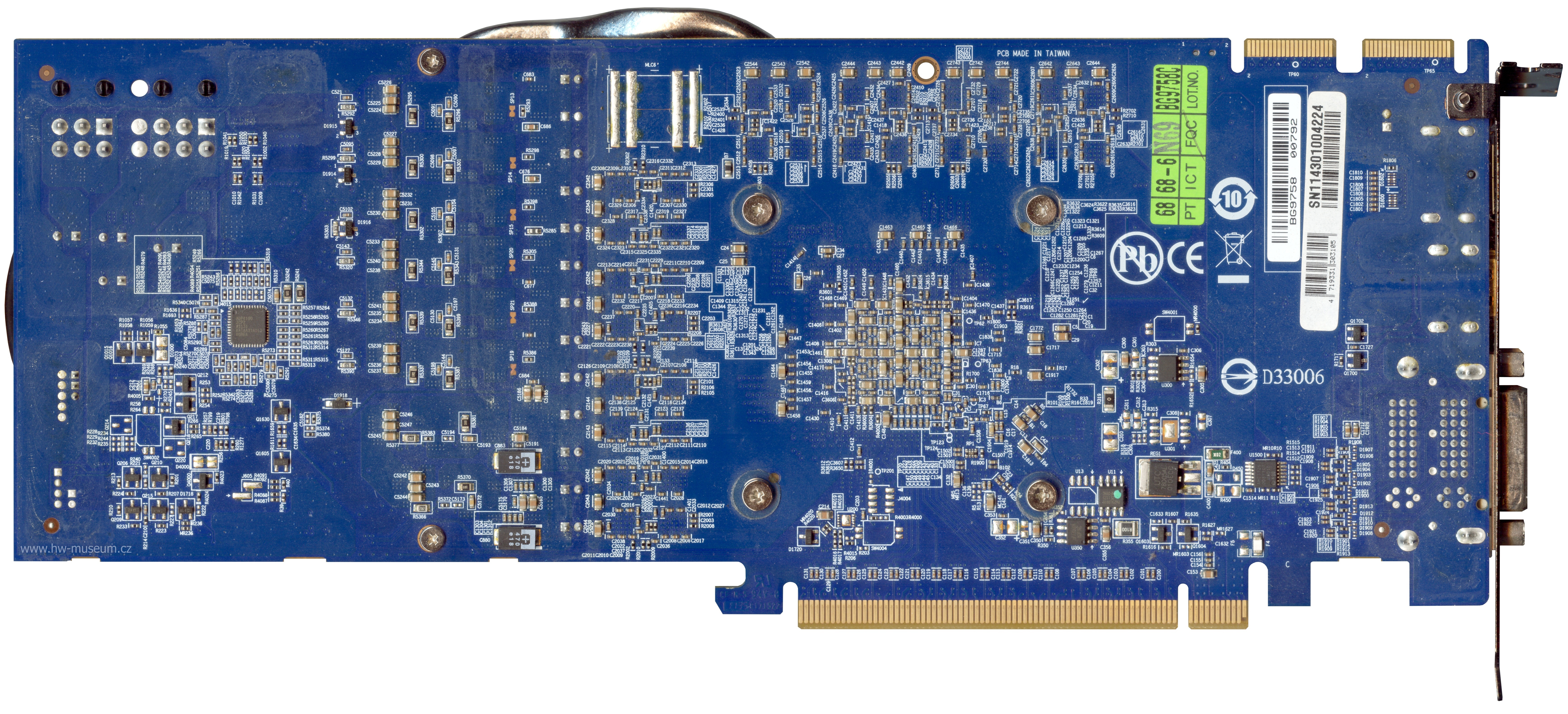

Gigabyte Radeon HD 6950 OC (1 GB) (back side)

Gigabyte Radeon HD 6950 OC (1 GB) (back side)

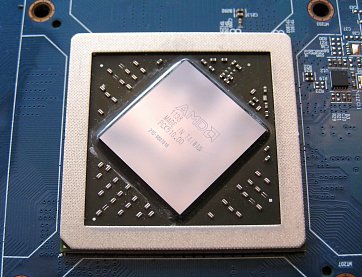

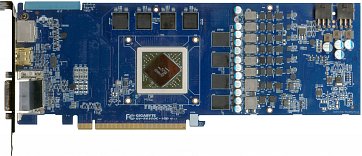

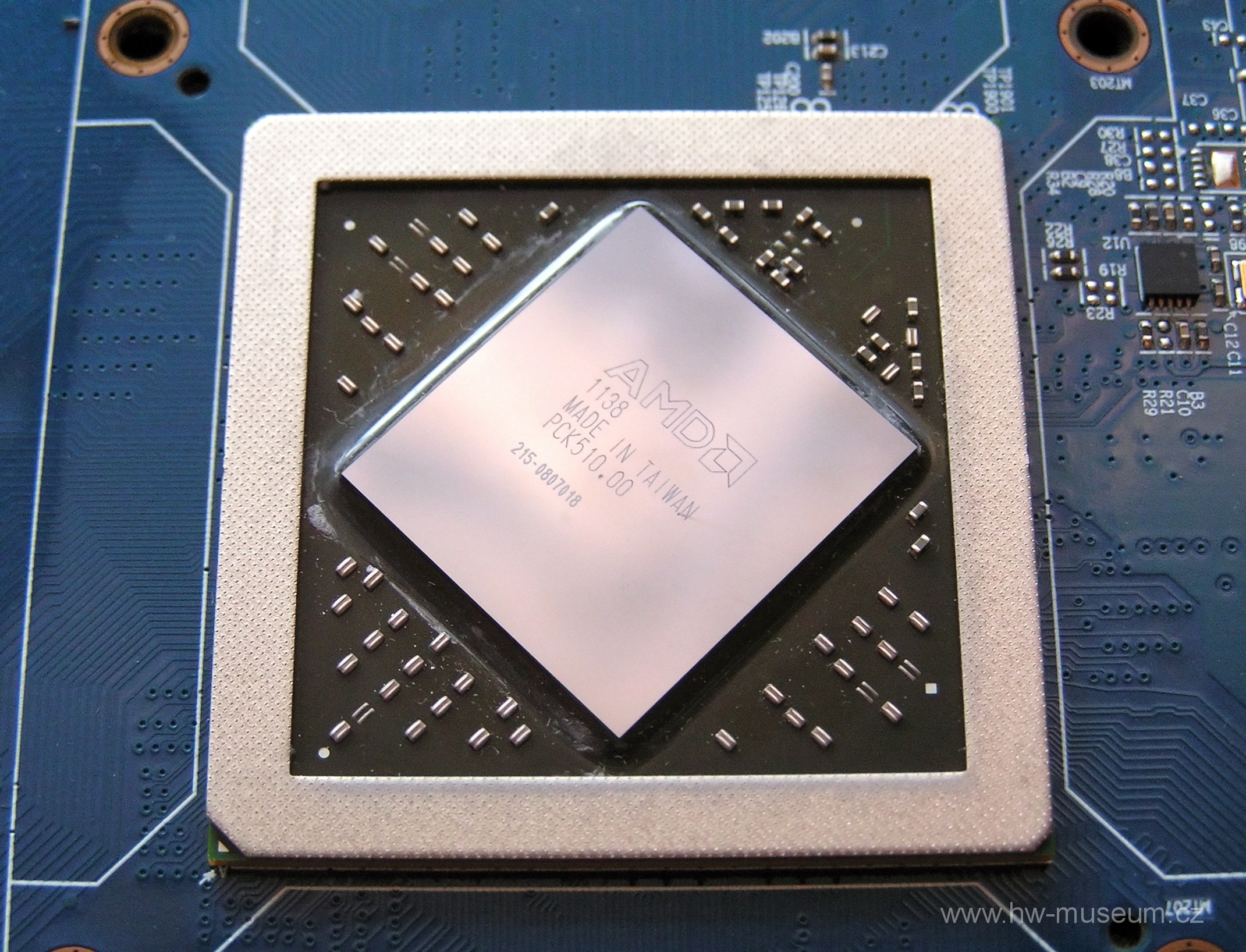

Gigabyte Radeon HD 6950 OC (1 GB) gallery
Gigabyte Radeon HD 6950 OC (1 GB) gallery
Gigabyte Radeon HD 6950 OC (1 GB) gallery
Gigabyte Radeon HD 6950 OC (1 GB) gallery
