AMD Duron 750

Published: (last update )

Core
Code nameSpitfire
Base clock750 MHz
Turbo full / half / single-
Base multiplier7.5×
Technology180 nm
Transistors25 million
Die size100 mm2
Density0.25 M / mm2
Cores / threads1 / 1
Stepping-
Cache
L1 data cache64 kB
L1 inst. cache64 kB
L2 cache64 kB
L2 cache typeOn-die, full speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87, MMX(+)
Extended inst.3DNow!
Extended inst. 2
Extended inst. 3
Extended inst. 4
Extended inst. 5
The CPU
Bus typeDDR, 200 MHz, 64 bit
Bus bandwith1 600 MB/s
SocketSocket 462
Package453 pin CPGA
Package size50 x 50 mm
Manufacture date52nd week of 2000
Voltage1.6 V
TDP31 W
Memory controller-
Integrated VGA-
Release date2000
AMD Duron 750 (front side)

AMD Duron 750 (front side)

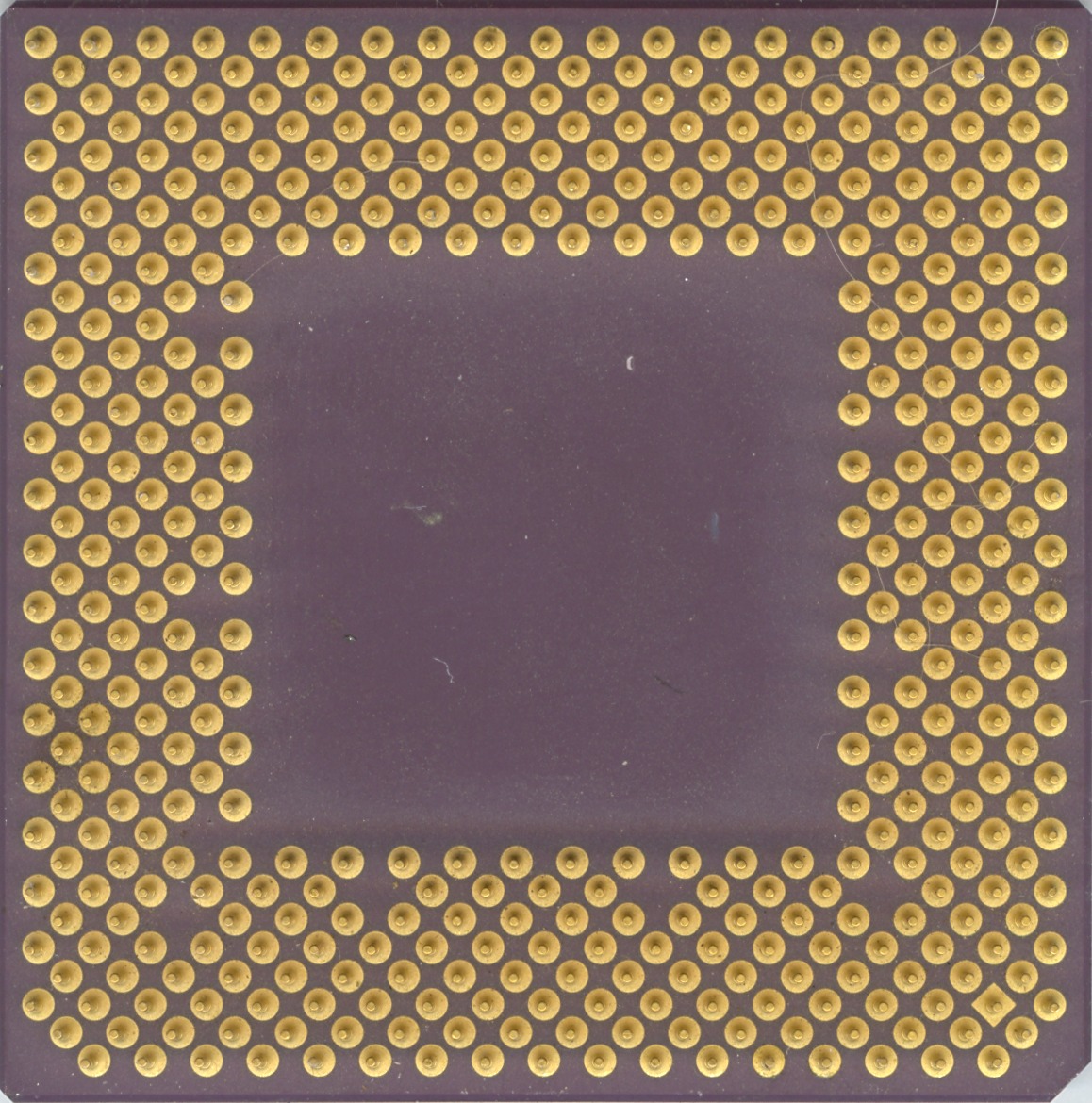

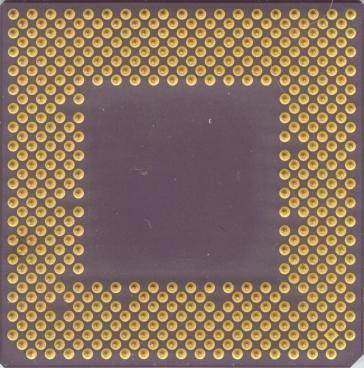

AMD Duron 750 (back side)

AMD Duron 750 (back side)
