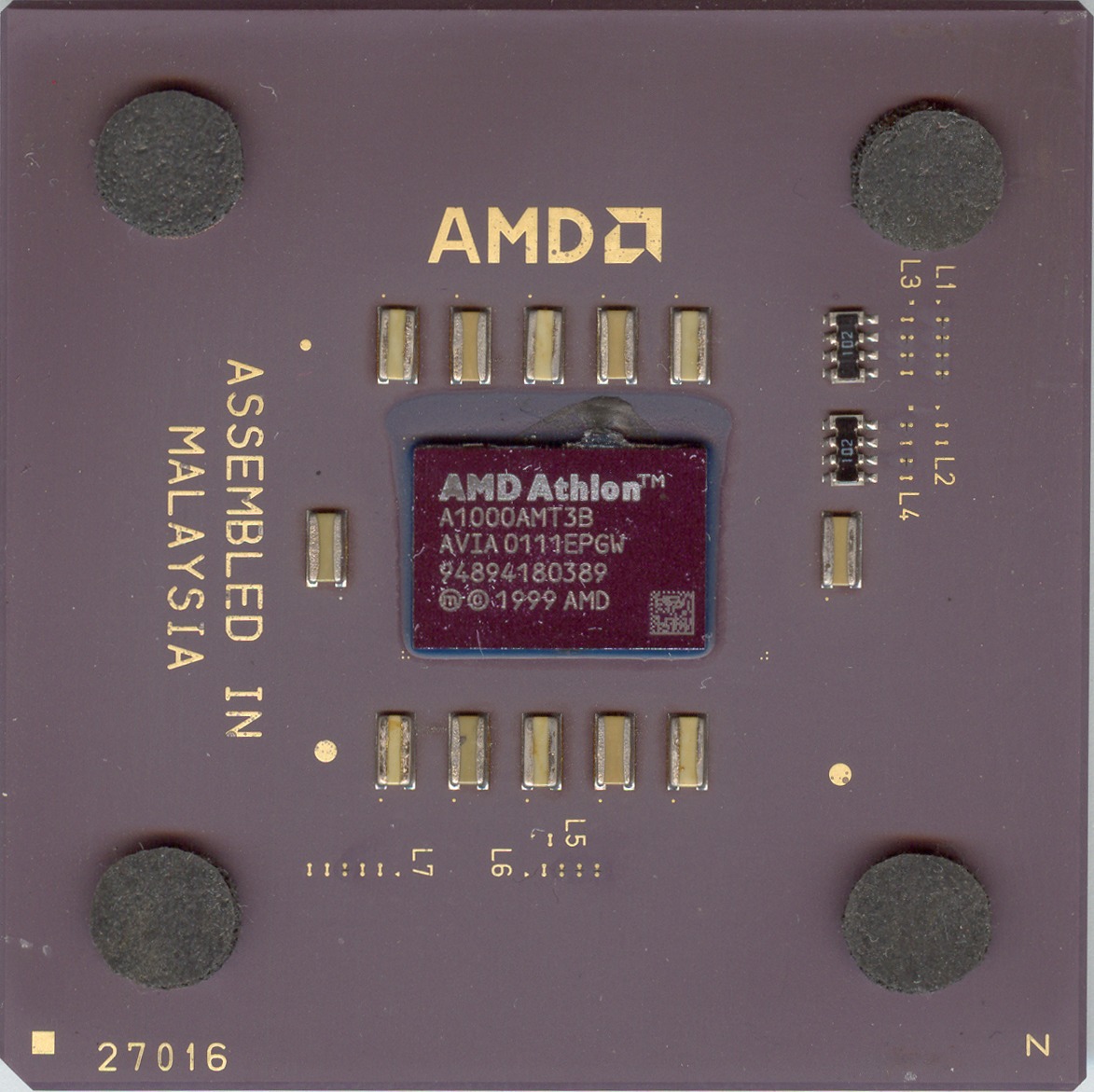

AMD Athlon 1000
Published: (last update )
| Core | |
|---|---|
| Code name | Thunderbird |
| Base clock | 1000 MHz |
| Turbo full / half / single | - |
| Base multiplier | 10× |
| Technology | 180 nm |
| Transistors | 37 million |
| Die size | 120 mm2 |
| Density | 0.31 M / mm2 |
| Cores / threads | 1 / 1 |
| Stepping | A4 |
| Cache | |
| L1 data cache | 64 kB |
| L1 inst. cache | 64 kB |
| L2 cache | 256 kB |
| L2 cache type | On-die, full speed |
| L3 cache | - |
| L3 cache type | - |
| Instructions | |
|---|---|
| Basic inst. | x86, x87, MMX(+) |
| Extended inst. | 3DNow! |
| Extended inst. 2 | |
| Extended inst. 3 | |
| Extended inst. 4 | |
| Extended inst. 5 | |
| The CPU | |
| Bus type | DDR, 200 MHz, 64 bit |
| Bus bandwith | 1 600 MB/s |
| Socket | Socket 462 |

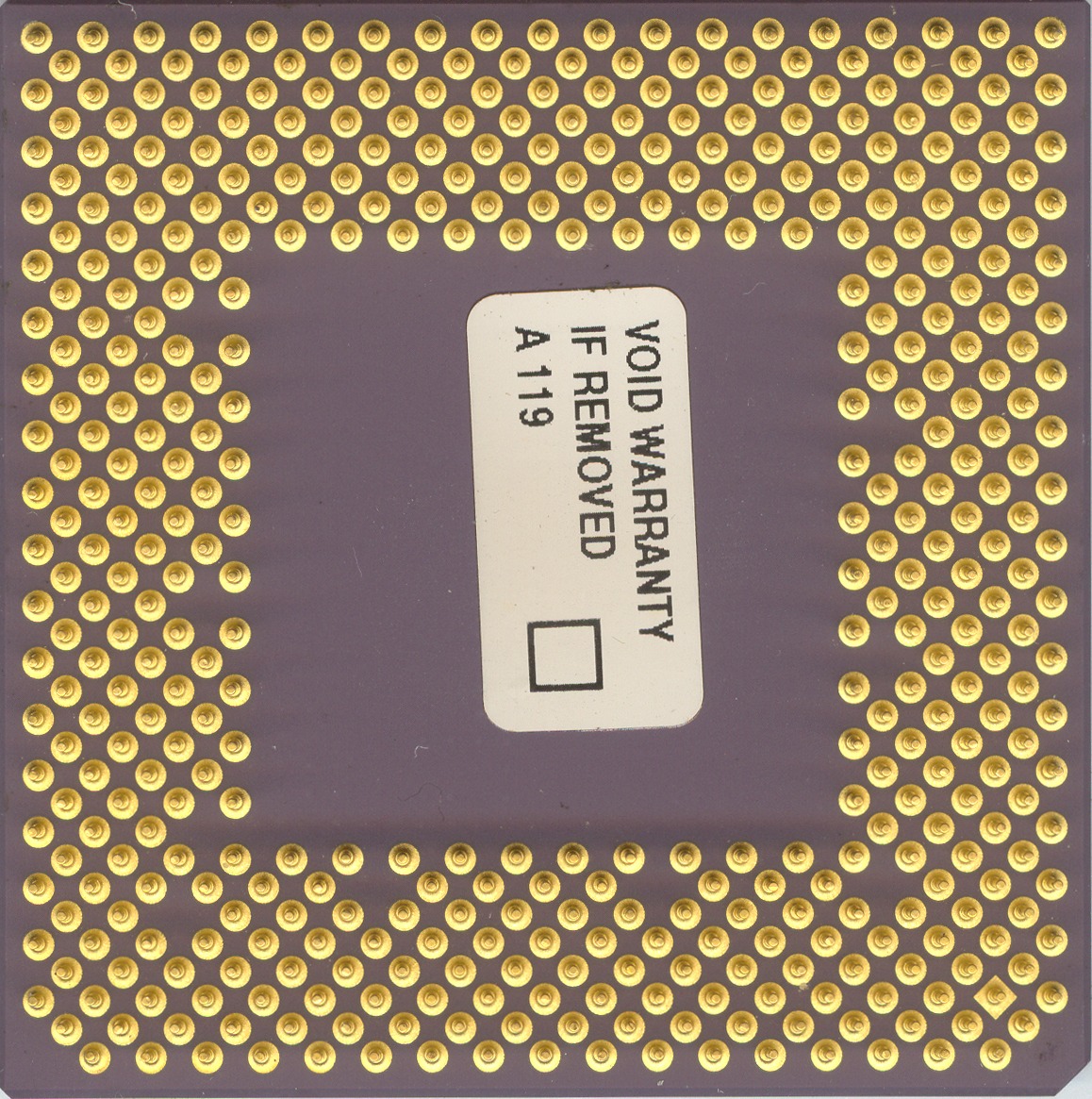

| Package | 453 pin CPGA |
| Package size | 50 x 50 mm |
| Manufacture date | 11th week of 2001 |
| Voltage | 1.7 V |
| TDP | 54 W |
| Memory controller | - |
| Integrated VGA | - |
| Release date | 2000 |
