AMD K6 200

Published: (last update )

Core
Code nameModel 6
Base clock200 MHz
Turbo full / half / single-
Base multiplier
Technology350 nm
Transistors8.8 milion
Die size162 mm2
Cores / threads1 / 1
Stepping-
Cache
L1 data cache32 kB
L1 inst. cache32 kB
L2 cache-
L2 cache typeExternal, 66 MHz
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87, MMX
Extended inst.
Extended inst. 2
Extended inst. 3
Extended inst. 4
The CPU
Bus typeSDR, 66 MHz, 64 bit
Bus bandwith528 MB/s
SocketSocket 7
Package321 pin Ceramic PGA
Package size50 x 50 mm
Manufacture date4397
Voltage2.9 V
TDP20 W
Memory controller-
Integrated VGA-
Release date1997

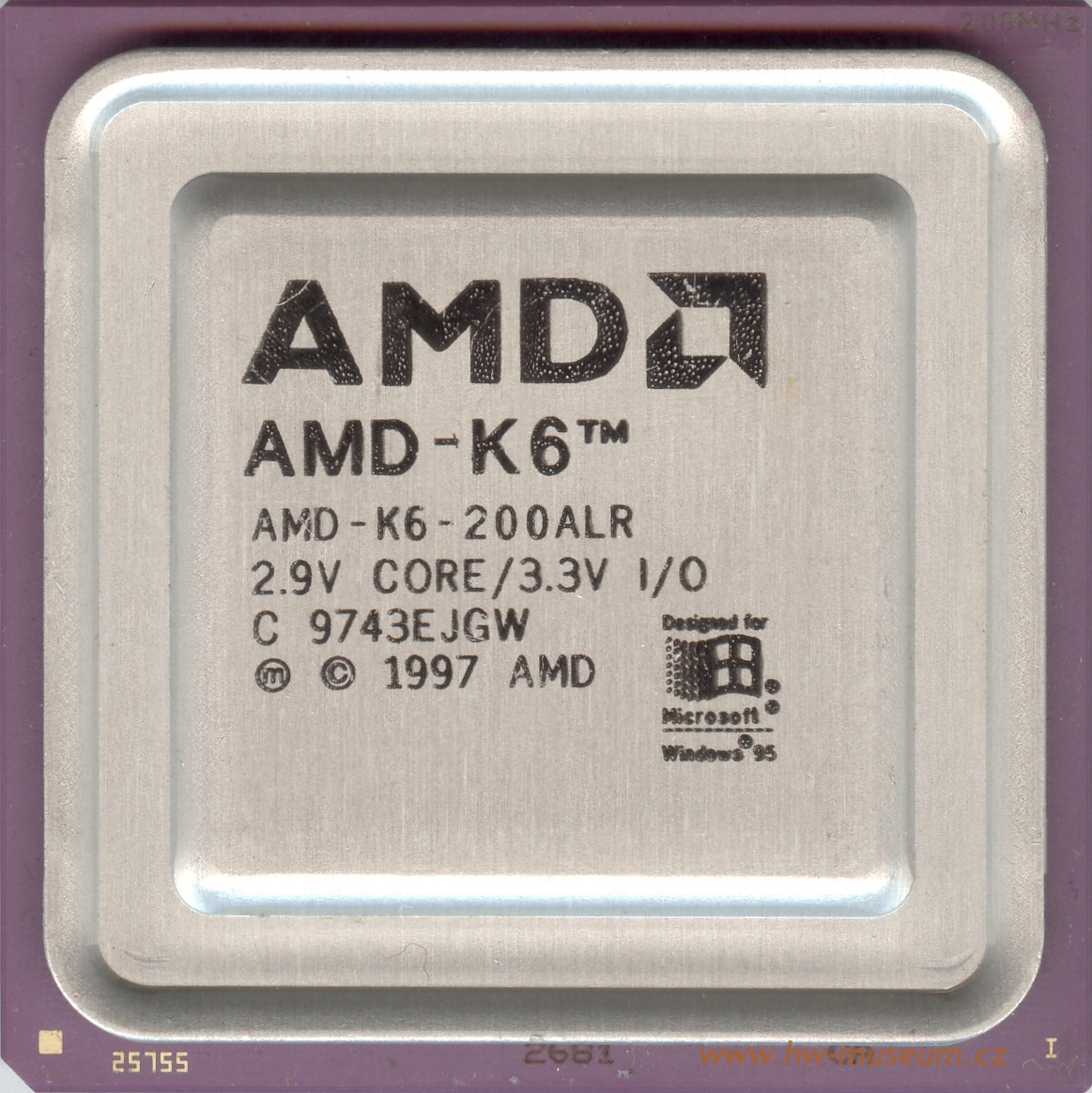

AMD K6 200 (front side)

AMD K6 200 (front side)

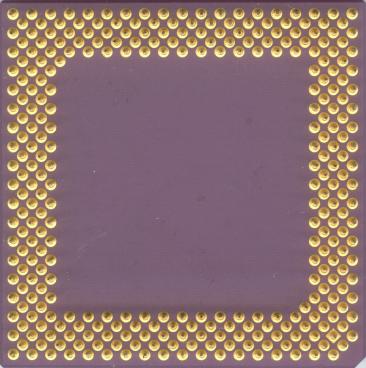

AMD K6 200 (back side)

AMD K6 200 (back side)
