AMD Ryzen 5 2600

Published: (last update )

Note: The Pinnacle Ridge die contains two CCX - 4C/8T and 8 MB L3 cache each. Ryzen 5 2600 has 3 cores enabled per CCX. SMT is active.

Core
Code namePinnacle Ridge
Base clock3400 MHz
Turbo full / half / single3900 | 3900 | 3900 MHz
Base multiplier34×
Technology12 nm
Transistors4800 million
Die size213 mm2
Density22.5 M / mm2
Cores / threads6 / 12
SteppingPiR-B2
Cache
L1 data cache6 × 32 kB
L1 inst. cache6 × 64 kB
L2 cache6 × 512 kB
L2 cache typeOn-die, full speed
L3 cache2 × 8192 kB
L3 cache typeOn-die, full speed
Instructions
Basic inst.x86, x87, MMX(+), SSE
Extended inst.SSE2, (S)SSE3
Extended inst. 2x86-64, SSE(4.1, 4.2, 4a)
Extended inst. 3AMD-V, AES-NI, AVX
Extended inst. 4AVX2, FMA3
Extended inst. 5
The CPU
Bus typeUMI, 100 MHz
Bus bandwith-
SocketSocket AM4
Package1331 pin lidded micro PGA
Package size40 x 40 mm
Manufacture date36th week of 2018
Voltage-
TDP65 W
Memory controllerDDR4 2933, 128 bit
Integrated VGA-
Release date2018

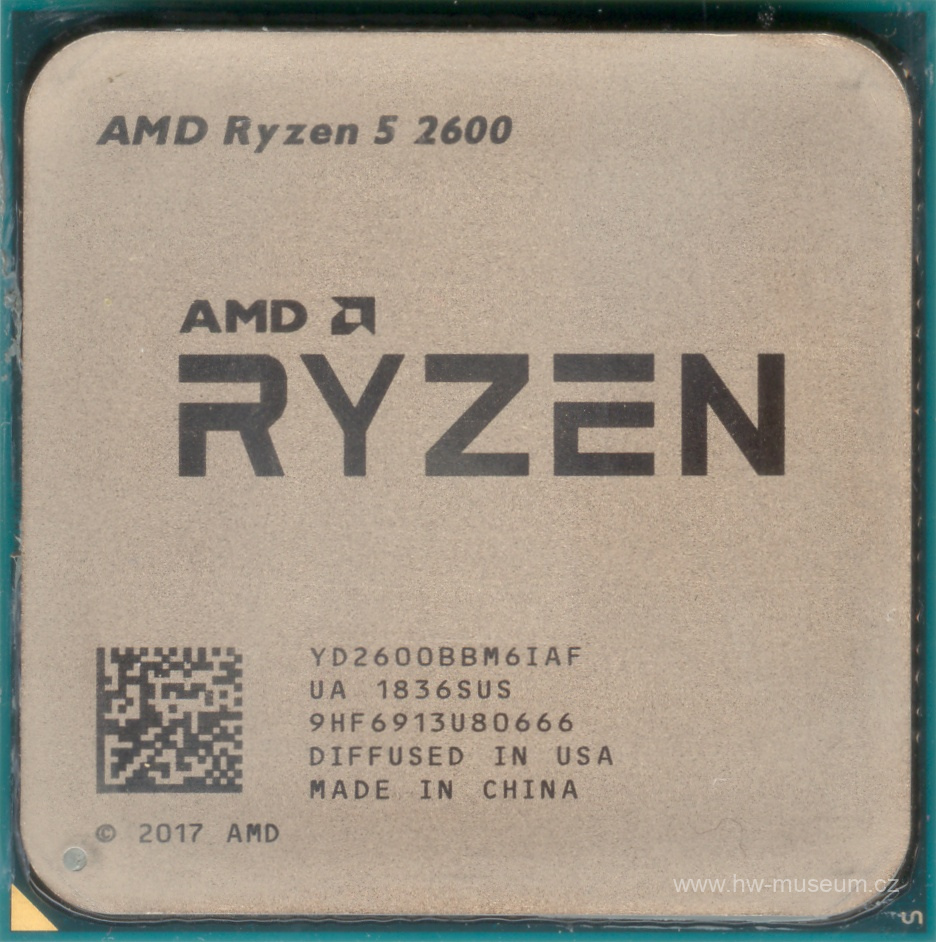

AMD Ryzen 5 2600 (front side)

AMD Ryzen 5 2600 (front side)

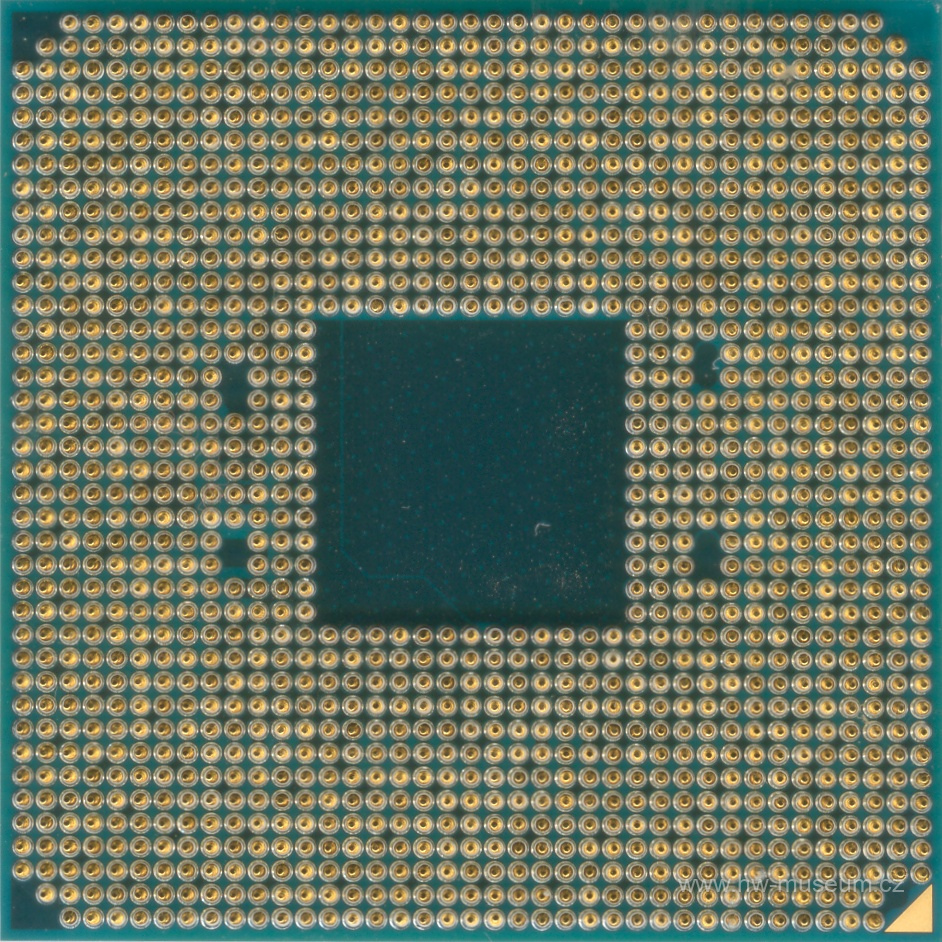

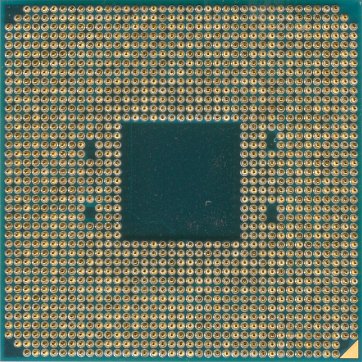

AMD Ryzen 5 2600 (back side)

AMD Ryzen 5 2600 (back side)

AMD Ryzen 5 2600 gallery
AMD Ryzen 5 2600 gallery
