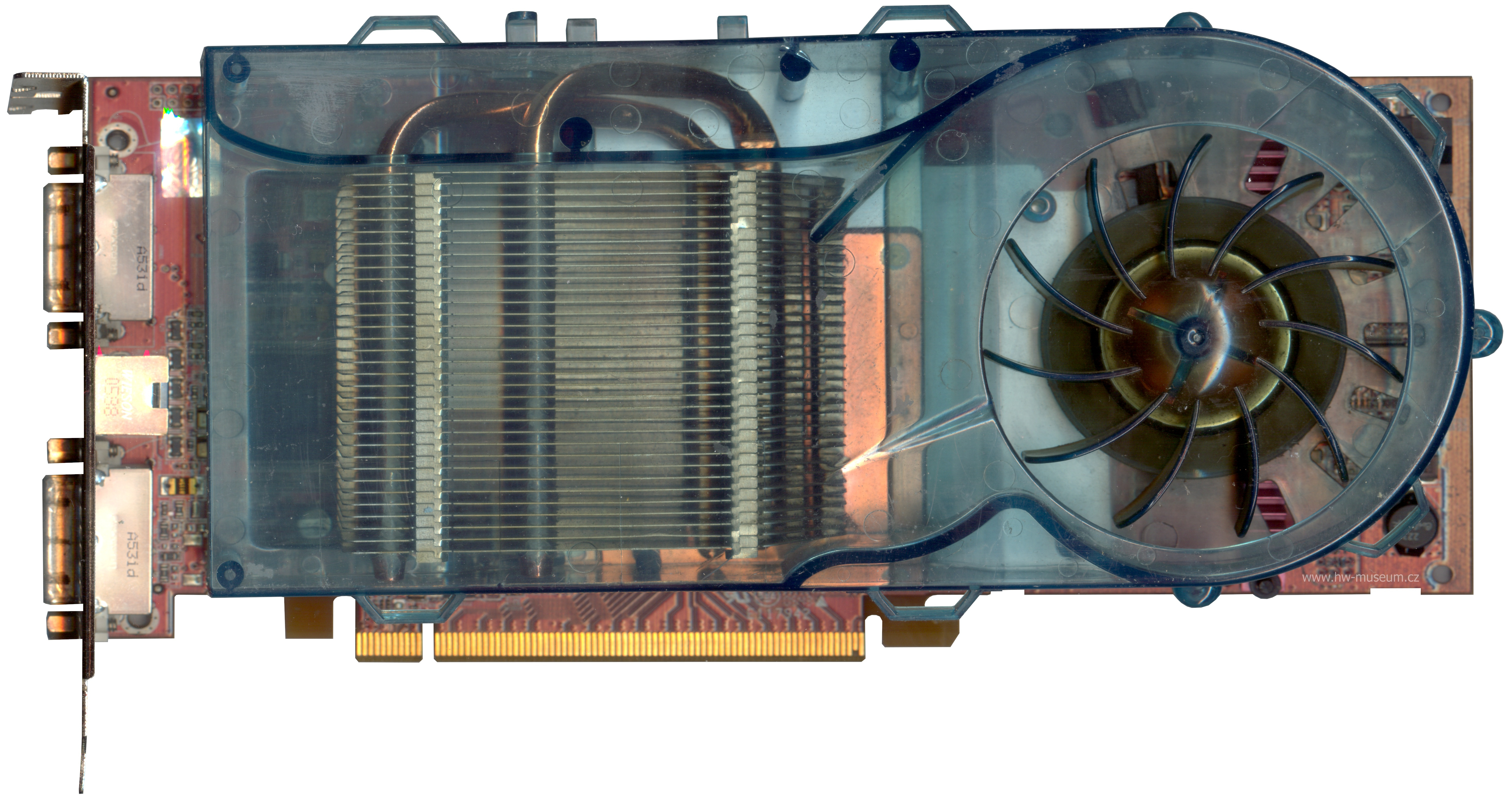

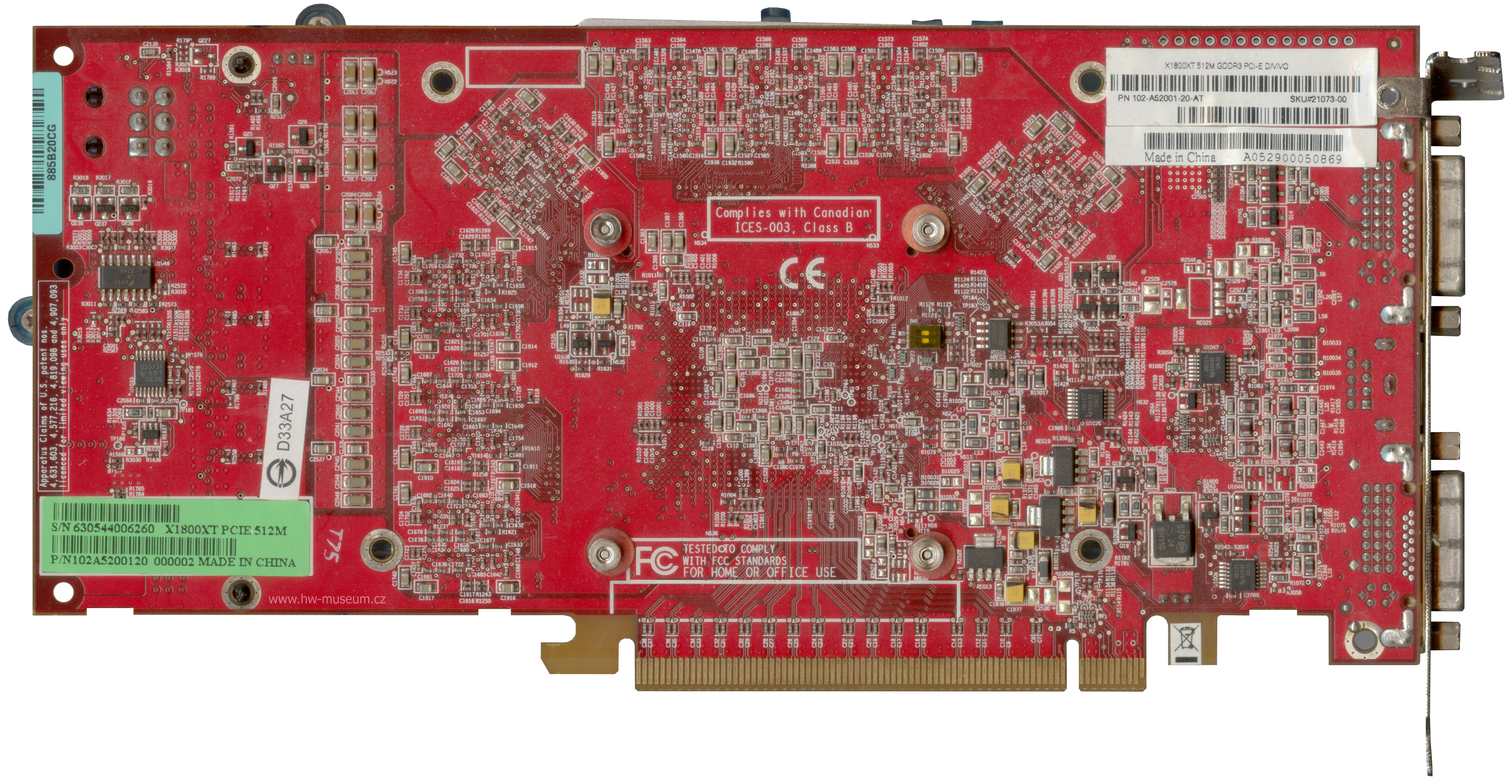

ATi Radeon X1800 XT 512 MB
Published: (last update )
| GPU | |
|---|---|
| GPU type | R520 |
| Manufacturing process | 90 nm |
| Transistors | 321 million |
| Die size | 288 mm2 |
| Density | 1.11 M / mm2 |
| ROPs | 16 |
| TMUs | 16 |
| Pixel shaders | 16 |
| Vertex shaders | 8 |
| Unified shaders | - |
| Clock | 600 MHz |
| Pixel fillrate | 9 600 MP/s |
| Texel fillrate | 9 600 MT/s |
| SP gigaflops | - |
| DP gigaflops | - |
| DirectX | 9c |
| OpenGL | 2.0 |
| OpenCL / Compute ver. | - |
| Memory | |
|---|---|
| Capacity | 512 MB |
| Type | GDDR3 |
| Clock | 1 400 MHz |
| Bus width | 256 bit |
| Bandwith | 44 800 MB/s |
| Rated speed | - |
| Brand | - |
| The card | |
| Manufacturer | ATi |
| Interface | PCI-E x16 |
| Interface bandwith | 4 096 MB/s |
| TDP | 113 W |
| Analog I/O ports | 1 × S-Video in, 1 × S-Video out, 2 × DVI-I |
| Digital I/O ports | 2 × DVI-I |
| Independent screens | 2 |
| Manufacture date | 43rd week of 2005 |
| Release date | 2005 |
