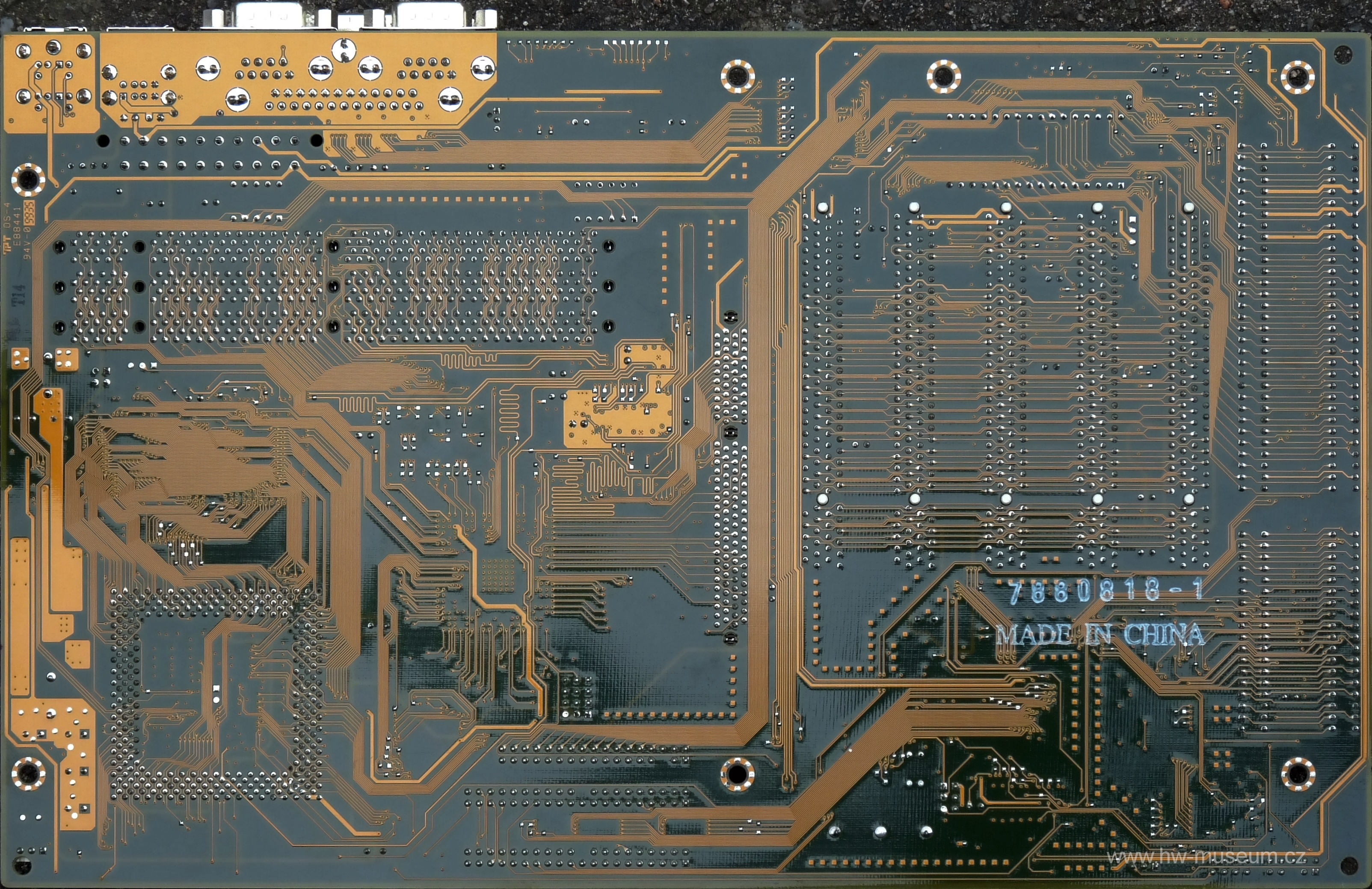

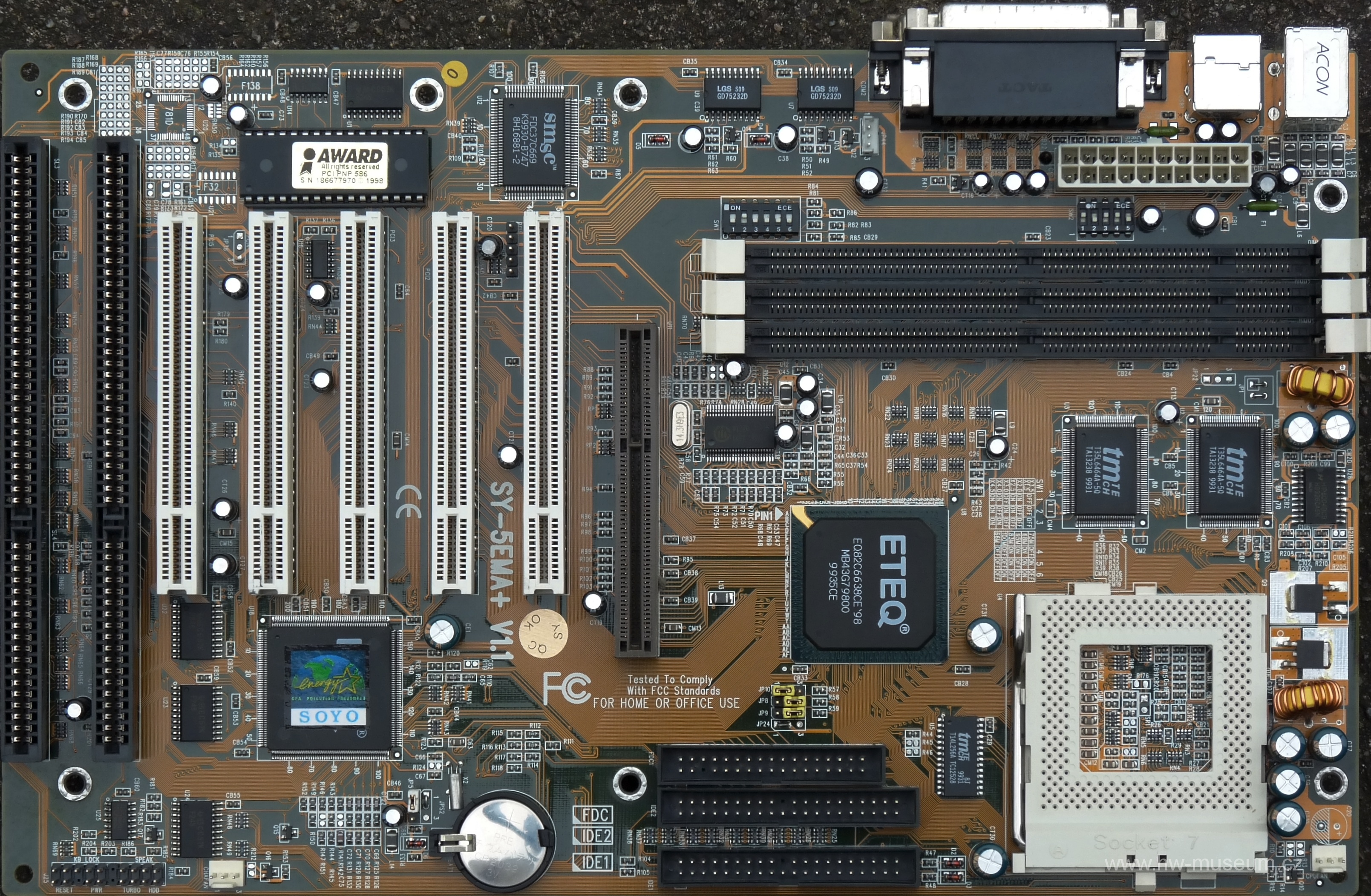

Soyo SY-5EMA+
Published: (last update )
| Chipset | |
|---|---|
| Model | VIA MVP3 |
| Northbridge | VT82C598MVP |
| Southbridge | VT82C586B |
| Bus type | SDR, 100 MHz, 64 bit |
| Bus bandwith | 800 MB/s |
| RAM type (1) | SDR 100 MHz, 64 bit |
| RAM type (2) | - |
| RAM bandwidth | 800 MB/s |
| Maximum RAM | 768 MB |
| Reg. / ECC support | no / no |
| NB PCI-E lanes | - |
| AGP | 2× |
| PCI support | 2.1 |
| Integrated VGA | - |
| The board | |
|---|---|
| Socket | socket 7 |
| Supported CPUs | Pentium, K5, K6 - K6-III |
| Fastest CPU | K6-III+ 550 Mhz |
| RAM slots | 3 × SDR |
| AGP | 1× - 2× ; 3.3V - 3.3V |
| PCI-E x16, x8, x4, x1 | , -, -, -, - |
| PCI-X / PCI / ISA | -, 5, 2 |
| IDE | 2 × ATA 33 |
| SATA | - |
| USB / Firewire | 2 × (1.1) |
| LAN | - |
| Format | ATX (305x191) |
| Release date | 1999 |
