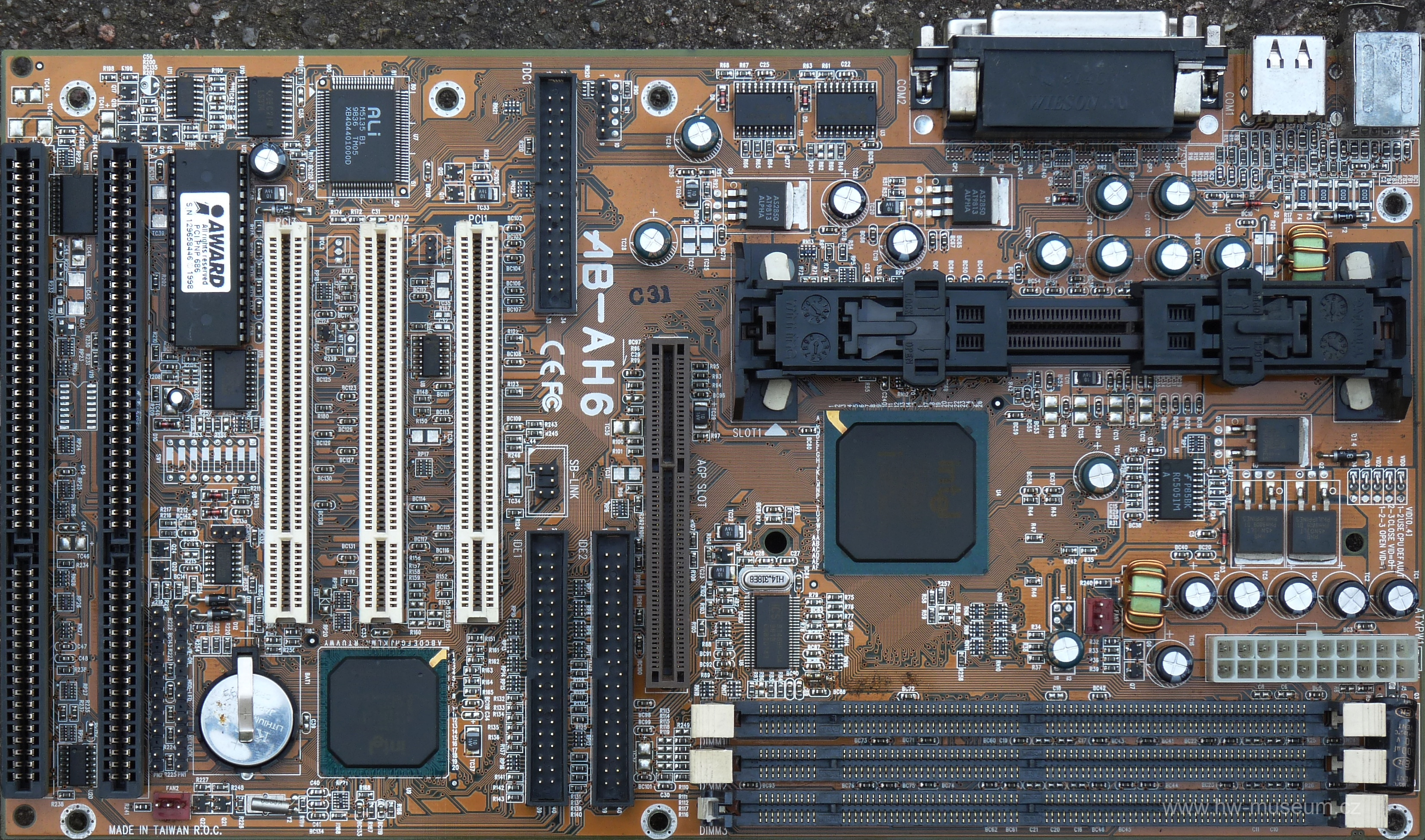

Abit AB-AH6
Published: (last update )
Note: Official CPU support up to Pentium II 300 MHz (Klamath). PII Deschutes (FSB 66), Celeron Covington and Mendocino might work... as they do on most i440LX boards.
| Chipset | |
|---|---|
| Model | Intel 440LX |
| Northbridge | 82443LX |
| Southbridge | PIIX4 |
| Bus type | SDR, 66 MHz, 64 bit |
| Bus bandwith | 528 MB/s |
| RAM type (1) | SDR 66 MHz, 64 bit |
| RAM type (2) | - |
| RAM bandwidth | 528 MB/s |
| Maximum RAM | 384 MB |
| Reg. / ECC support | no / yes |
| NB PCI-E lanes | - |
| AGP | 2× |
| PCI support | 2.1 |
| Integrated VGA | - |
| The board | |
|---|---|
| Socket | slot 1 |
| Supported CPUs | Pentium II, Celeron |
| Fastest CPU | Celeron 533 |
| RAM slots | 3 × SDR |
| AGP | 1× - 2× ; 3.3V - 3.3V |
| PCI-E x16, x8, x4, x1 | , -, -, -, - |
| PCI-X / PCI / ISA | -, 3, 2 |
| IDE | 2 × ATA 33 |
| SATA | - |
| USB / Firewire | 2 × (1.1) |
| LAN | - |
| Format | ATX (305x170) |
| Release date | 1997 |
