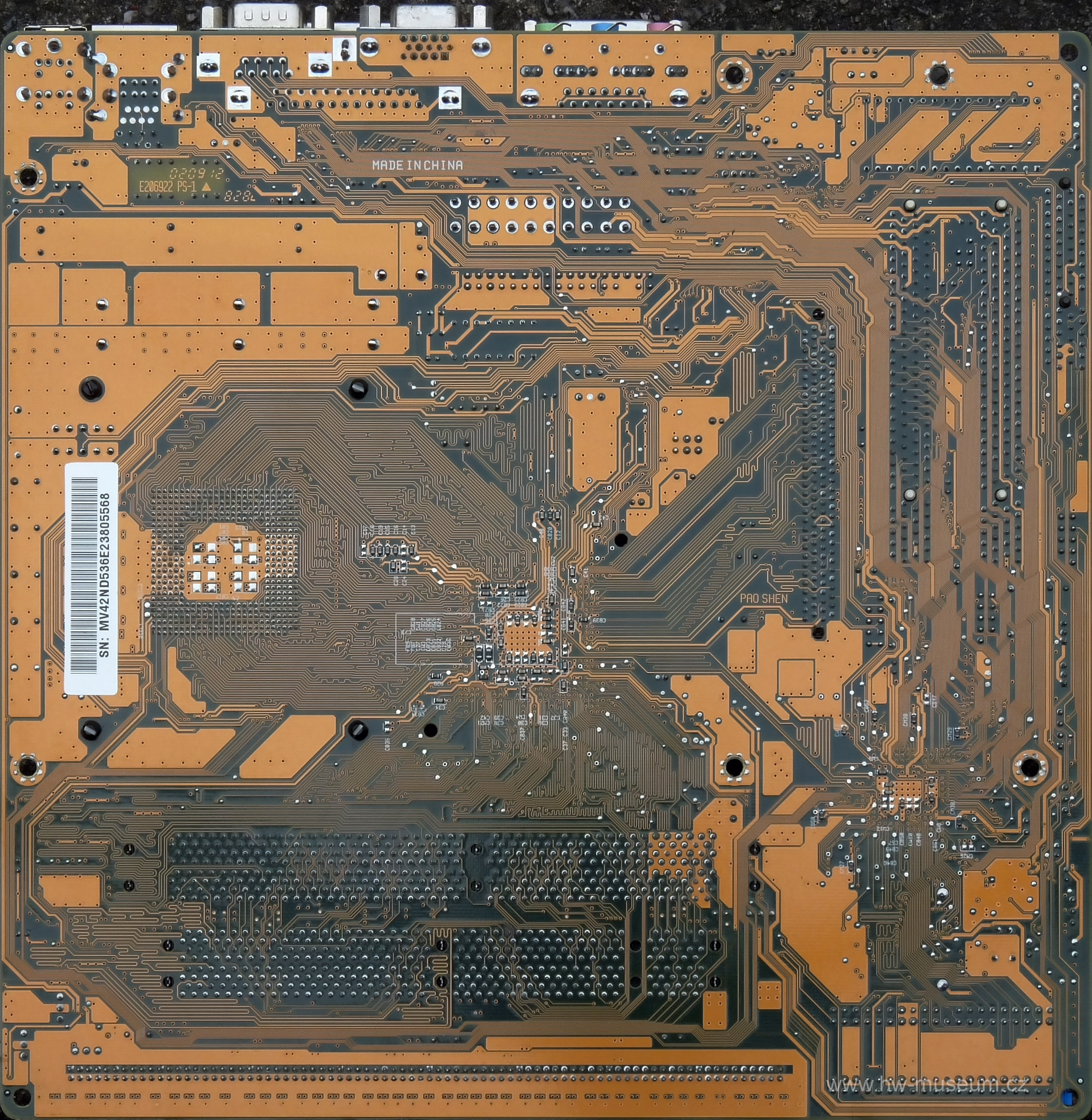

Shuttle MV42N
Published: (last update )
| Chipset | |
|---|---|
| Model | VIA P4M266 |
| Northbridge | VT8751 |
| Southbridge | VT8233 |
| Bus type | QDR, 400 MHz, 64 bit |
| Bus bandwith | 3 200 MB/s |
| RAM type (1) | DDR 266 MHz, 64 bit |
| RAM type (2) | SDR 133 MHz, 64 bit |
| RAM bandwidth | 2128 MB/s ; 1064 MB/s |
| Maximum RAM | 2 048 MB |
| Reg. / ECC support | no / no |
| NB PCI-E lanes | - |
| AGP | 4× |
| PCI support | 2.2 |
| Integrated VGA | ProSavage8 DDR |
| The board | |
|---|---|
| Socket | socket 478 |
| Supported CPUs | Pentium 4, Celeron |
| Fastest CPU | Pentium 4 2.5 GHz |
| RAM slots | 2 × DDR, 2 × SDR |
| AGP | 1× - 4× ; 3.3V - 1.5V |
| PCI-E x16, x8, x4, x1 | , -, -, -, - |
| PCI-X / PCI / ISA | -, 2, - |
| IDE | 2 × ATA 133 |
| SATA | - |
| USB / Firewire | 6 × (1.1) |
| LAN | 1 × 100 Mb/s |
| Format | microATX (244x244) |
| Release date | 2002 |
