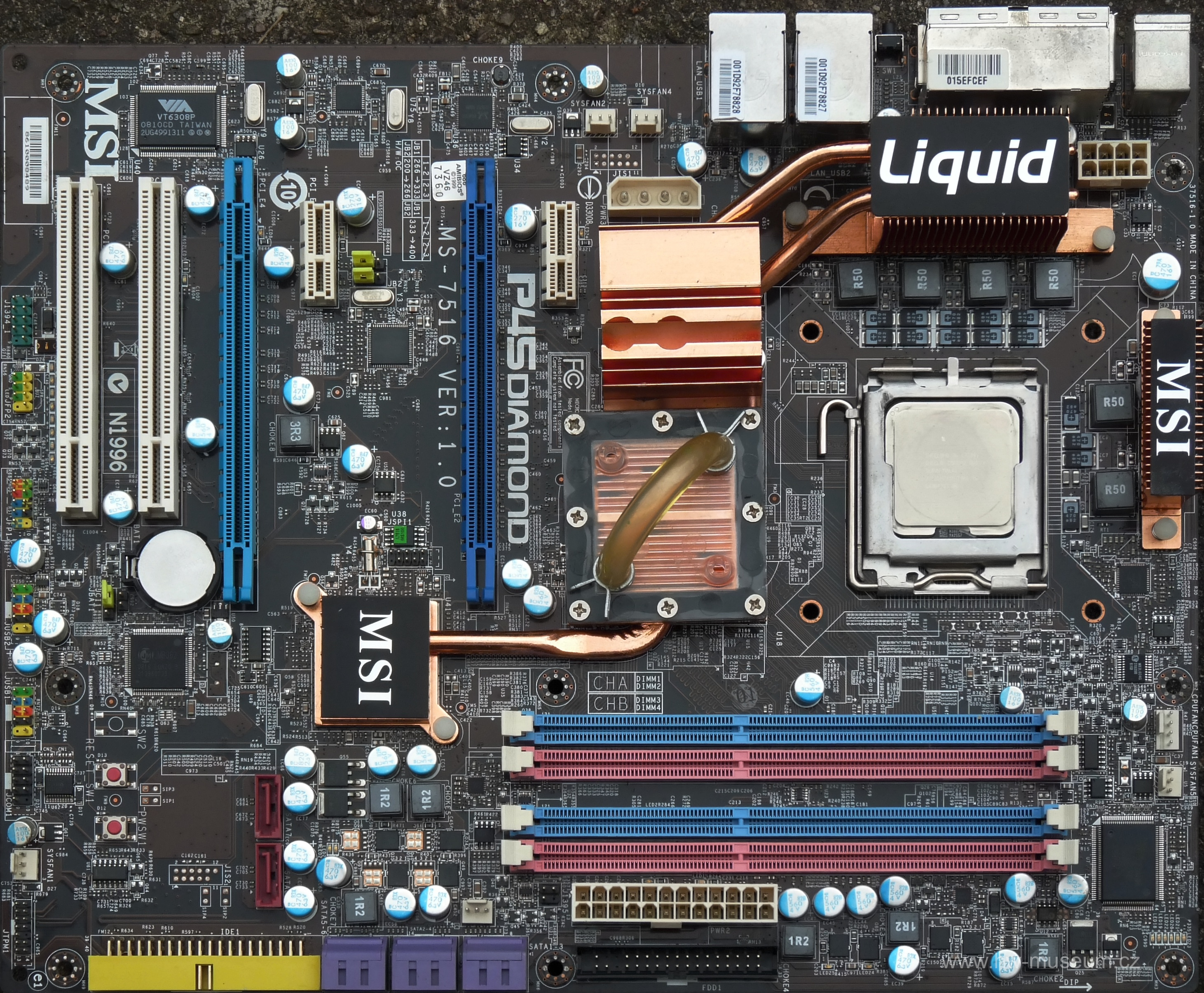

MSI P45 Diamond
Published: (last update )
| Chipset | |
|---|---|
| Model | Intel P45 |
| Northbridge | 82P45 |
| Southbridge | ICH10R |
| Bus type | QDR, 1600 MHz, 64 bit |
| Bus bandwith | 12 800 MB/s |
| RAM type (1) | DDR3 1600 MHz, 128 bit |
| RAM type (2) | - |
| RAM bandwidth | 25 600 MB/s |
| Maximum RAM | 16 384 MB |
| Reg. / ECC support | no / no |
| NB PCI-E lanes | 16 (2.0) |
| AGP | - |
| PCI support | 2.3 |
| Integrated VGA | - |
| The board | |
|---|---|
| Socket | socket 775 |
| Supported CPUs | C2Q, C2D, Pentium DC |
| Fastest CPU | Core 2 Quad QX9770 |
| RAM slots | 4 × DDR3 |
| AGP | - |
| PCI-E x16, x8, x4, x1 | 2, -, -, 2 |
| PCI-X / PCI / ISA | -, 2, - |
| IDE | 1 × ATA 133 |
| SATA | 6 × (300) + 2 × (300) |
| USB / Firewire | 12 × (2.0) / 2 |
| LAN | 2 × 1000 Mb/s |
| Format | ATX (305x245) |
| Release date | 2008 |
