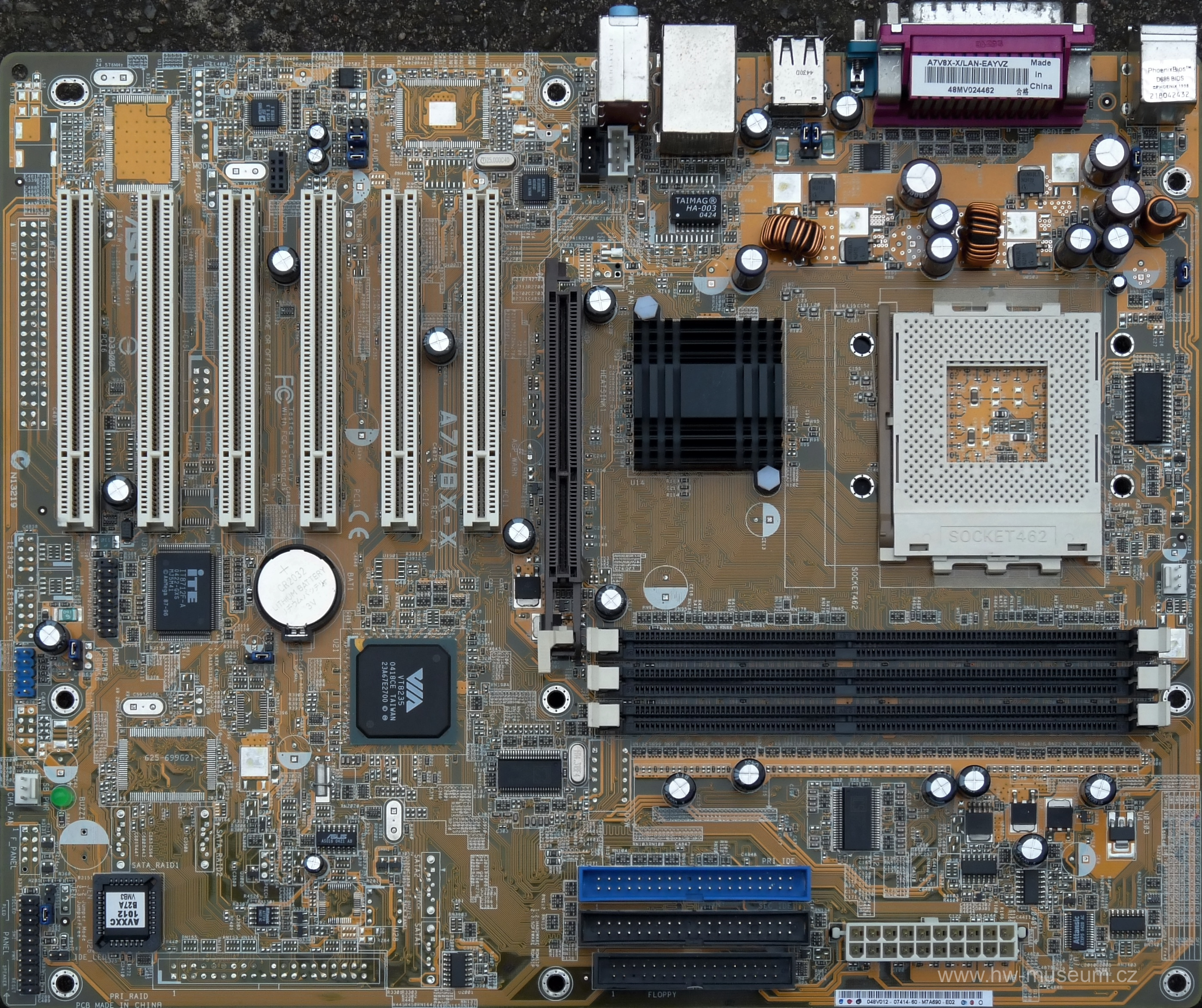

Asus A7V8X-X
Published: (last update )
| Chipset | |
|---|---|
| Model | VIA KT400 |
| Northbridge | VT8368 |
| Southbridge | VT8235 |
| Bus type | DDR, 333 MHz, 64 bit |
| Bus bandwith | 2 664 MB/s |
| RAM type (1) | DDR 333 MHz, 64 bit |
| RAM type (2) | - |
| RAM bandwidth | 2 664 MB/s |
| Maximum RAM | 3 072 MB |
| Reg. / ECC support | no / no |
| NB PCI-E lanes | - |
| AGP | 8× |
| PCI support | 2.2 |
| Integrated VGA | - |
| The board | |
|---|---|
| Socket | socket A |
| Supported CPUs | Duron, Athlon, Athlon XP |
| Fastest CPU | Athlon XP 3000+ |
| RAM slots | 3 × DDR |
| AGP | 4× - 8× ; 1.5V - 0.8V |
| PCI-E x16, x8, x4, x1 | , -, -, -, - |
| PCI-X / PCI / ISA | -, 6, - |
| IDE | 2 × ATA 133 |
| SATA | - |
| USB / Firewire | 6 × (2.0) |
| LAN | 1 × 100 Mb/s |
| Format | ATX (305x244) |
| Release date | 2003 |
