ATi Radeon 9800 XT

Published: (last update )

GPU
GPU type R360
Manufacturing process150 nm
Transistors117 milion
Die size218 mm2
ROPs8
TMUs8
Pixel shaders8
Vertex shaders4
Unified shaders-
Clock412 MHz
Pixel fillrate3296 MP/s
Texel fillrate3296 MT/s
SP gigaflops-
DP gigaflops-
DirectX9
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeDDR
Clock730 MHz
Bus width256 bit
Bandwith23360 MB/s
Rated speed-
Brand-
The card
ManufacturerATi
InterfaceAGP 8x
Interface bandwith2133 MB/s
TDP60 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Rev
Release date2003

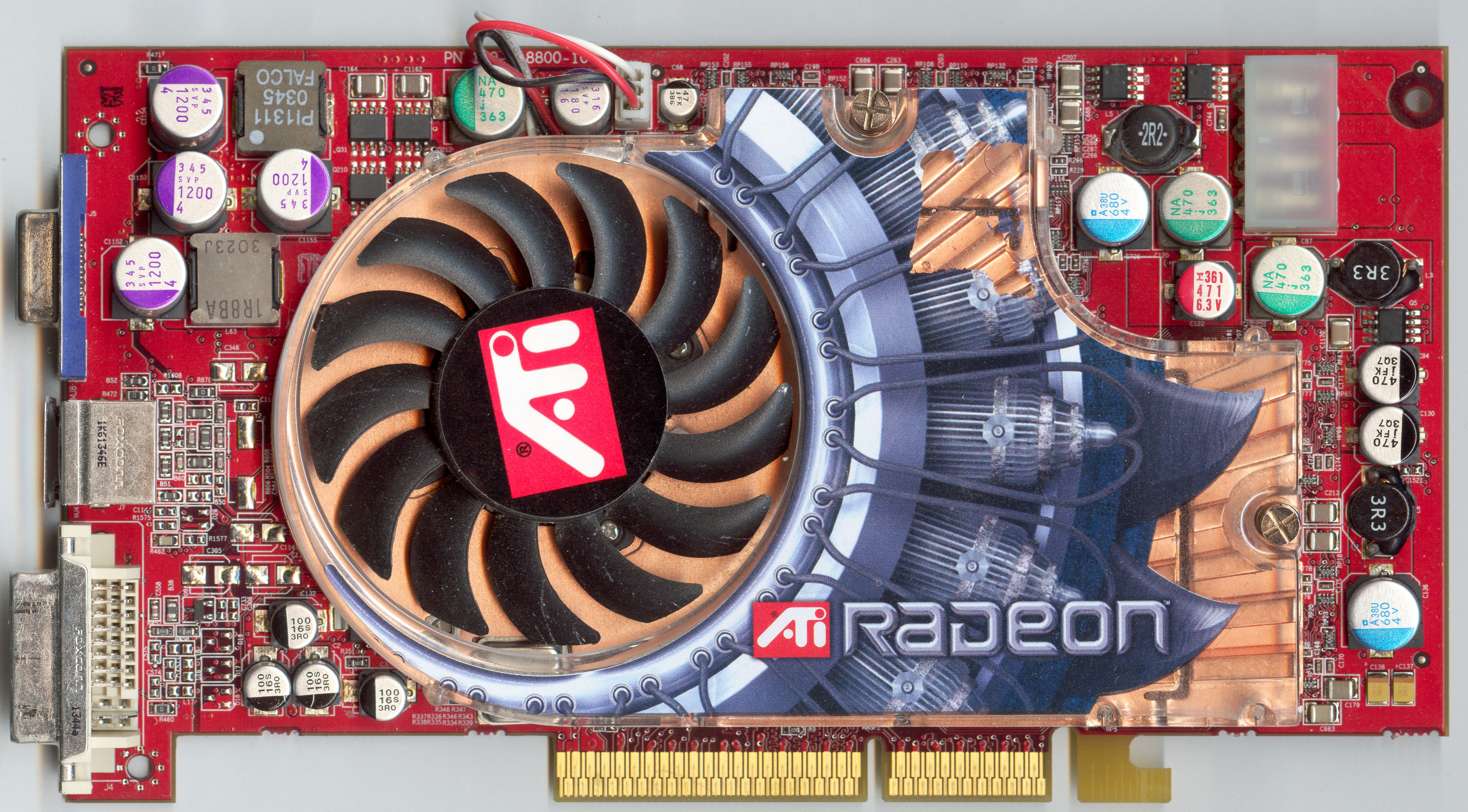

ATi Radeon 9800 XT (front side)

ATi Radeon 9800 XT (front side)

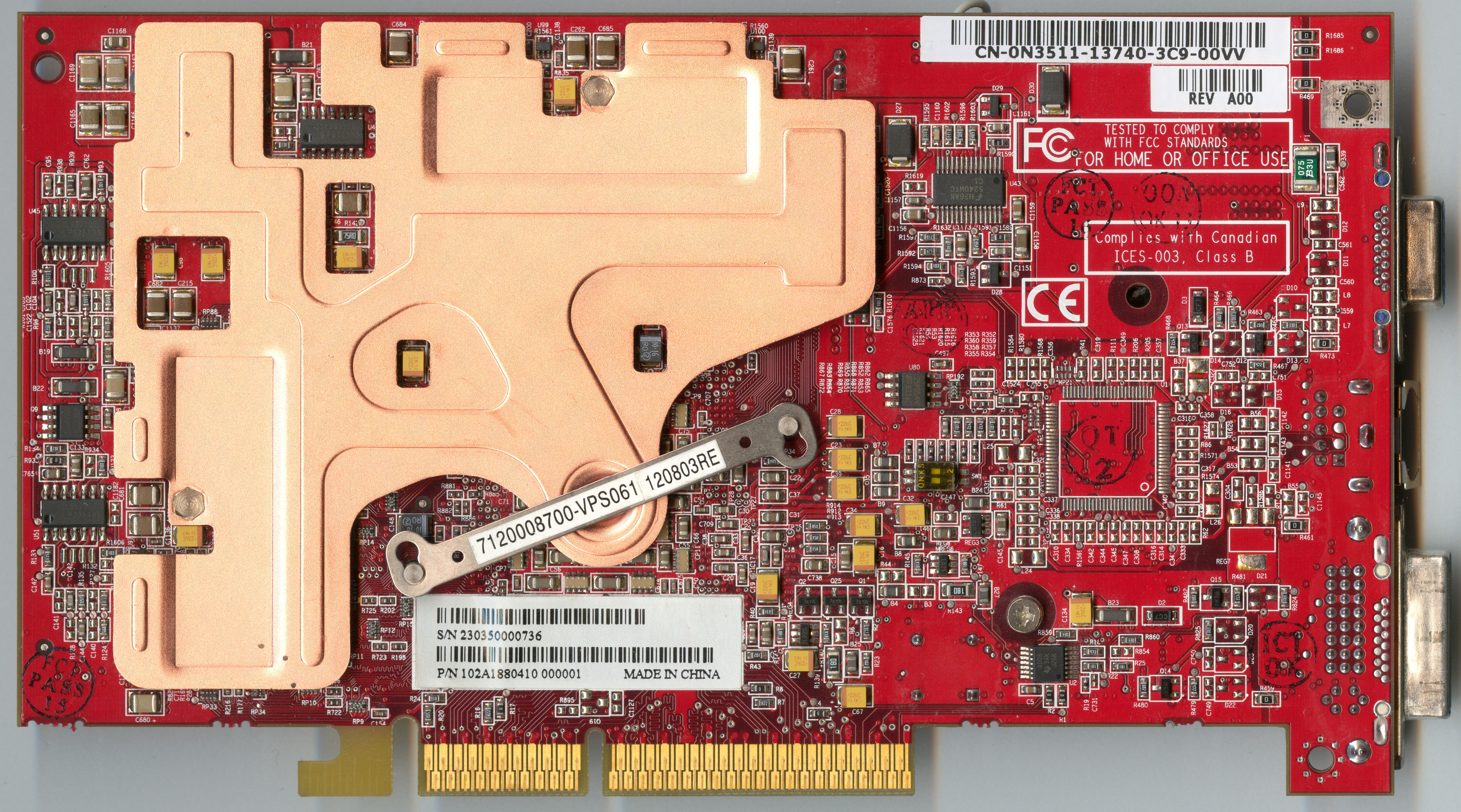

ATi Radeon 9800 XT (back side)

ATi Radeon 9800 XT (back side)
