ATi Radeon 7500

Published: (last update )

GPU
GPU type RV200
Manufacturing process150 nm
Transistors30 million
Die size84 mm2
Density0.36 M / mm2
ROPs2
TMUs6
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock270 MHz
Pixel fillrate540 MP/s
Texel fillrate1 620 MT/s
SP gigaflops-
DP gigaflops-
DirectX7
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeDDR
Clock366 MHz
Bus width128 bit
Bandwith5 856 MB/s
Rated speed500 MHz
BrandEtron Tech.
The card
ManufacturerATi
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP-
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date40th week of 2002
Release date2001
ATi Radeon 7500 (front side)

ATi Radeon 7500 (front side)

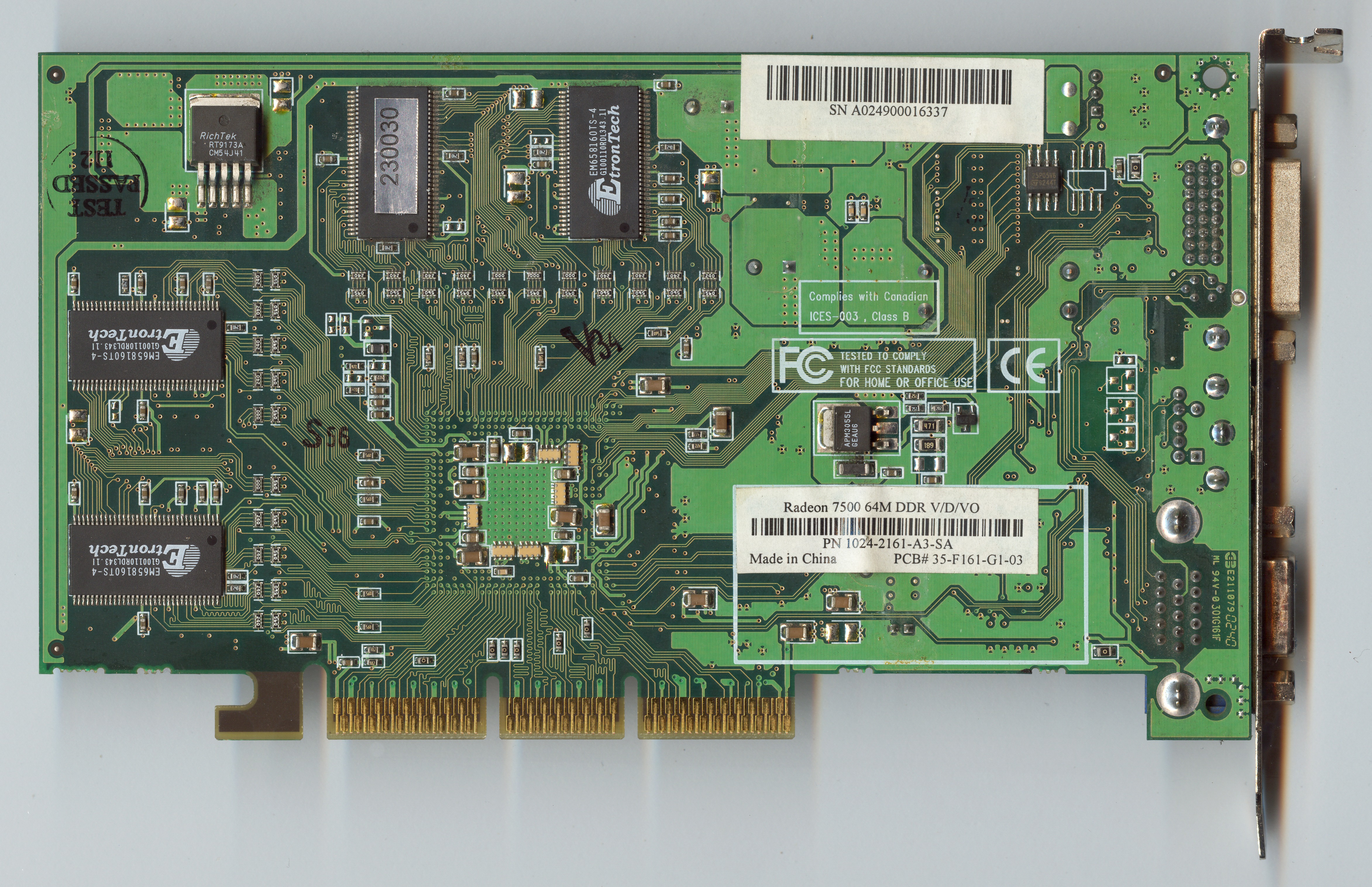

ATi Radeon 7500 (back side)

ATi Radeon 7500 (back side)
