Compaq Voodoo3 3500 TV-OUT

Published: (last update )

GPU
GPU type Avenger
Manufacturing process250 nm
Transistors8 million
Die size74 mm2
Density0.11 M / mm2
ROPs1
TMUs2
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock183 MHz
Pixel fillrate183 MP/s
Texel fillrate366 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity16 MB
TypeSDRAM
Clock183 MHz
Bus width128 bit
Bandwith2 928 MB/s
Rated speed183 MHz
BrandHyundai
The card
ManufacturerCompaq
InterfaceAGP 2x
Interface bandwith533 MB/s
TDP12 W
Analog I/O ports1 × VGA, 1 × S-Video out
Digital I/O ports-
Independent screens1
Manufacture date45th week of 1999
Release date1999

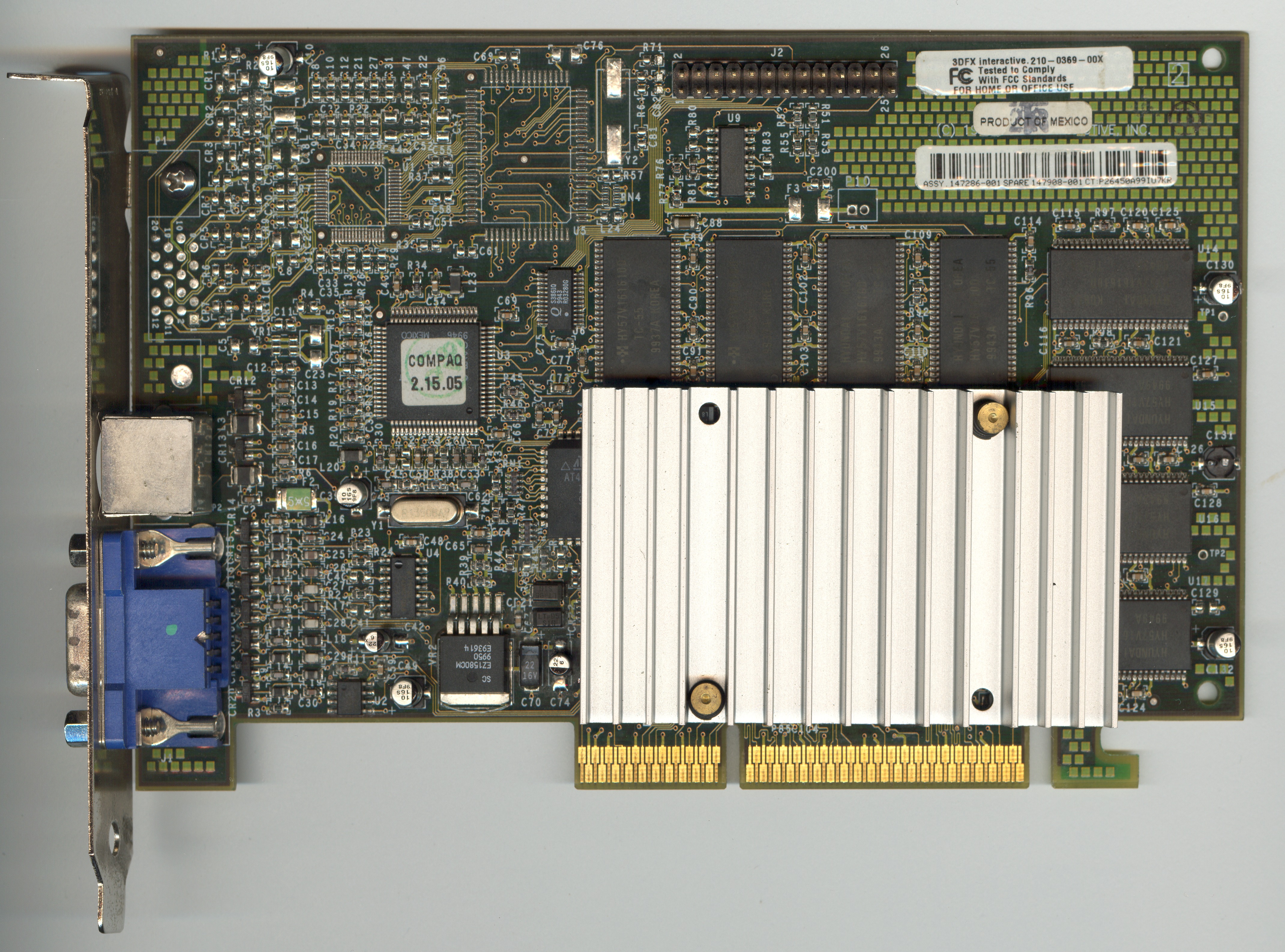

Compaq Voodoo3 3500 TV-OUT (front side)

Compaq Voodoo3 3500 TV-OUT (front side)

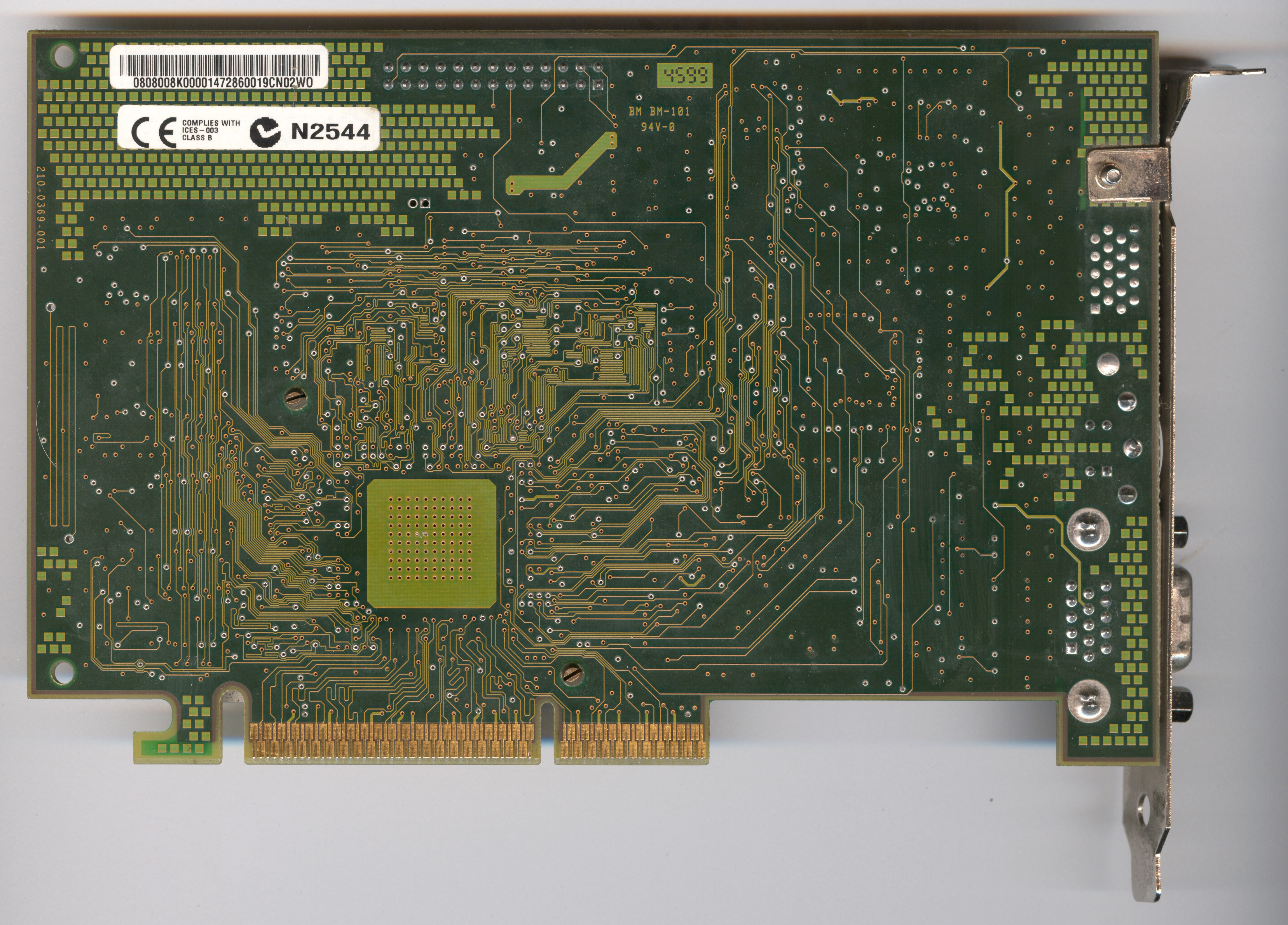

Compaq Voodoo3 3500 TV-OUT (back side)

Compaq Voodoo3 3500 TV-OUT (back side)
