3dfx Voodoo3 3500 TV

Published: (last update )

GPU
GPU type Avenger
Manufacturing process250 nm
Transistors8 milion
Die size74 mm2
ROPs1
TMUs2
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock183 MHz
Pixel fillrate183 MP/s
Texel fillrate366 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity16 MB
TypeSDRAM
Clock183 MHz
Bus width128 bit
Bandwith2928 MB/s
Rated speed183 MHz
BrandHyundai
The card
Manufacturer3dfx
InterfaceAGP 2x
Interface bandwith533 MB/s
TDP12 W
Analog I/O ports1 × VGA, 1 × Composite in, 1 × Composite out, 1 × S-Video in, 1 × S-Video out
Digital I/O ports-
Independent screens1
Rev
Release date1999

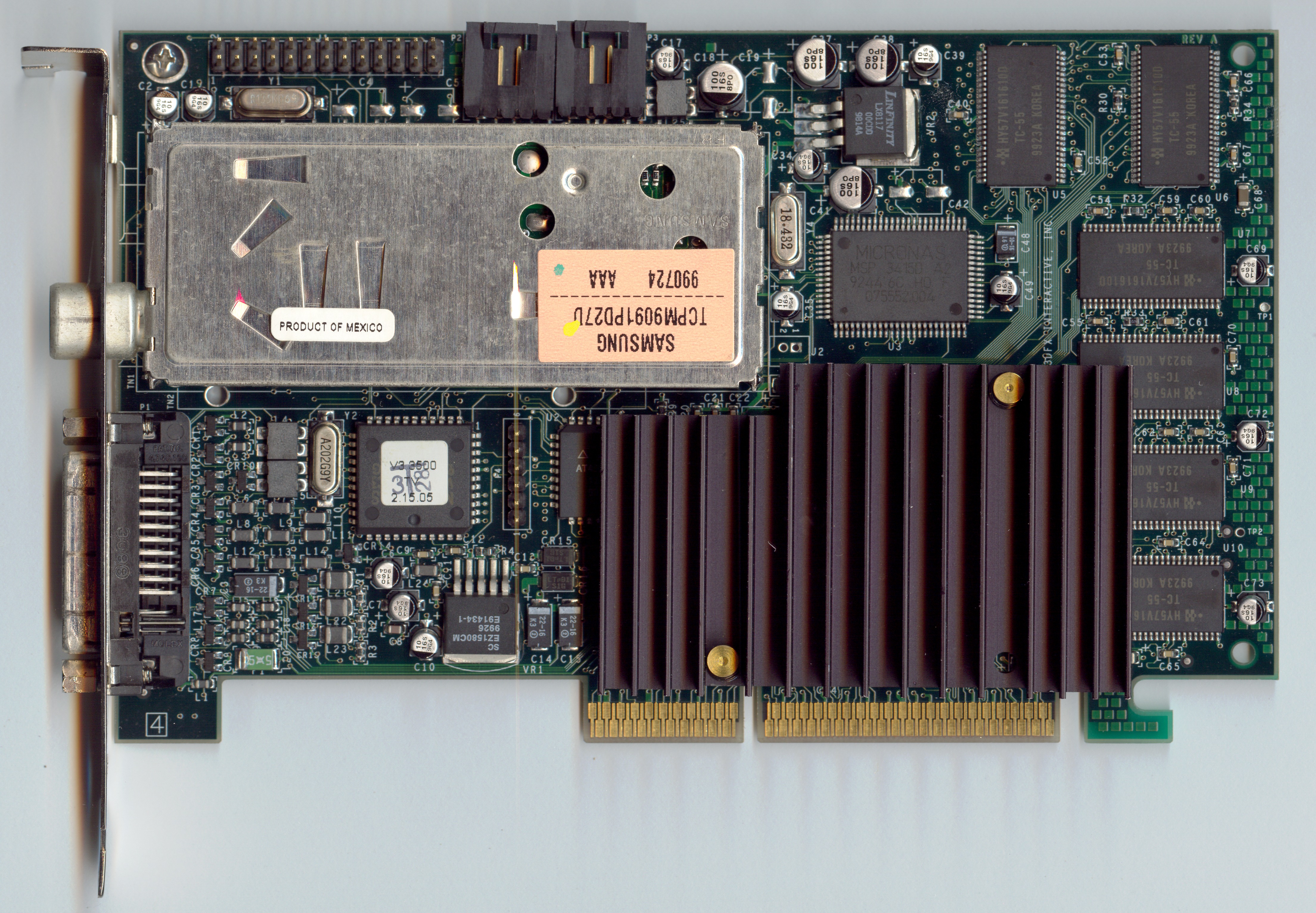

3dfx Voodoo3 3500 TV (front side)

3dfx Voodoo3 3500 TV (front side)

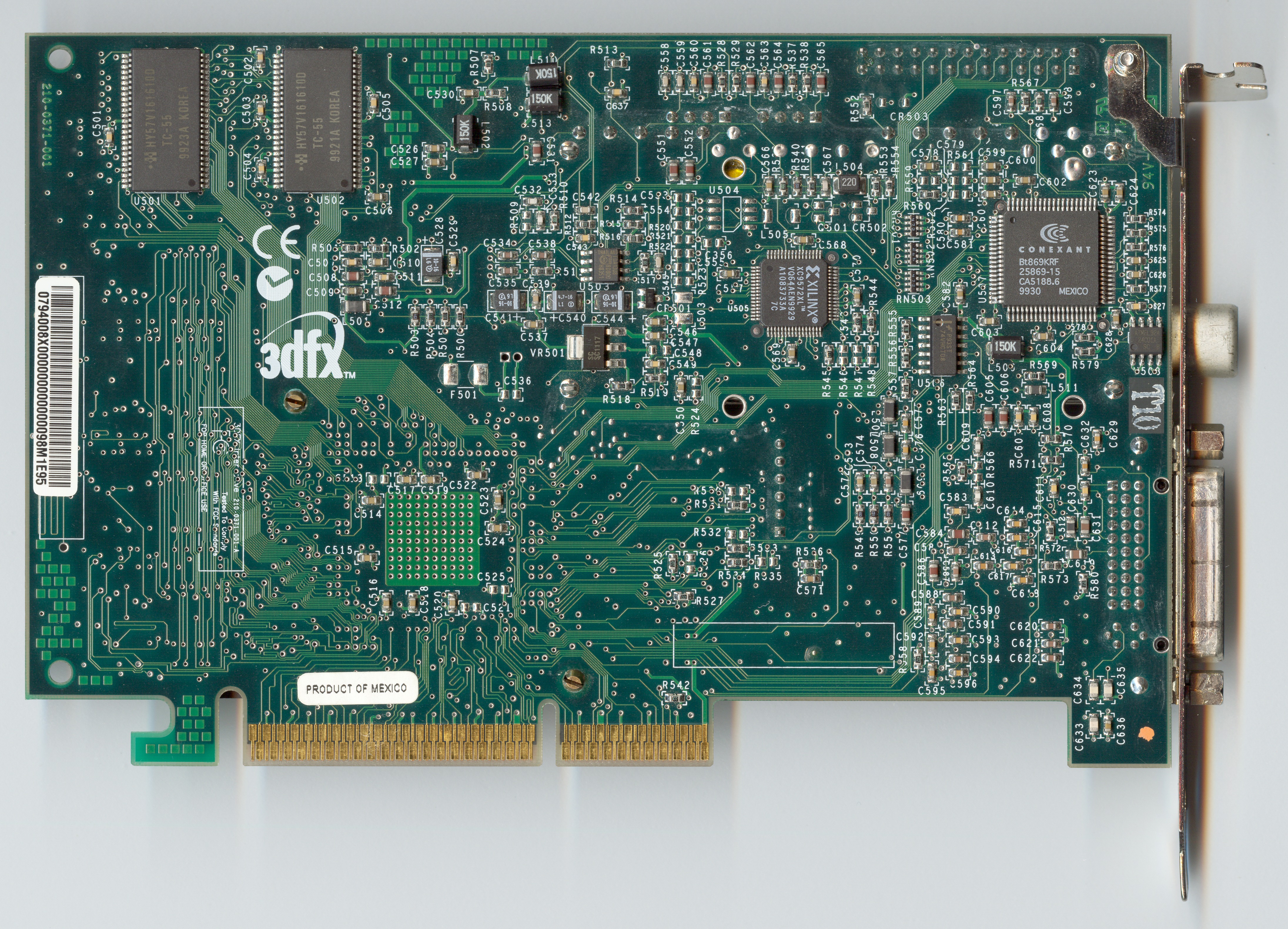

3dfx Voodoo3 3500 TV (back side)

3dfx Voodoo3 3500 TV (back side)

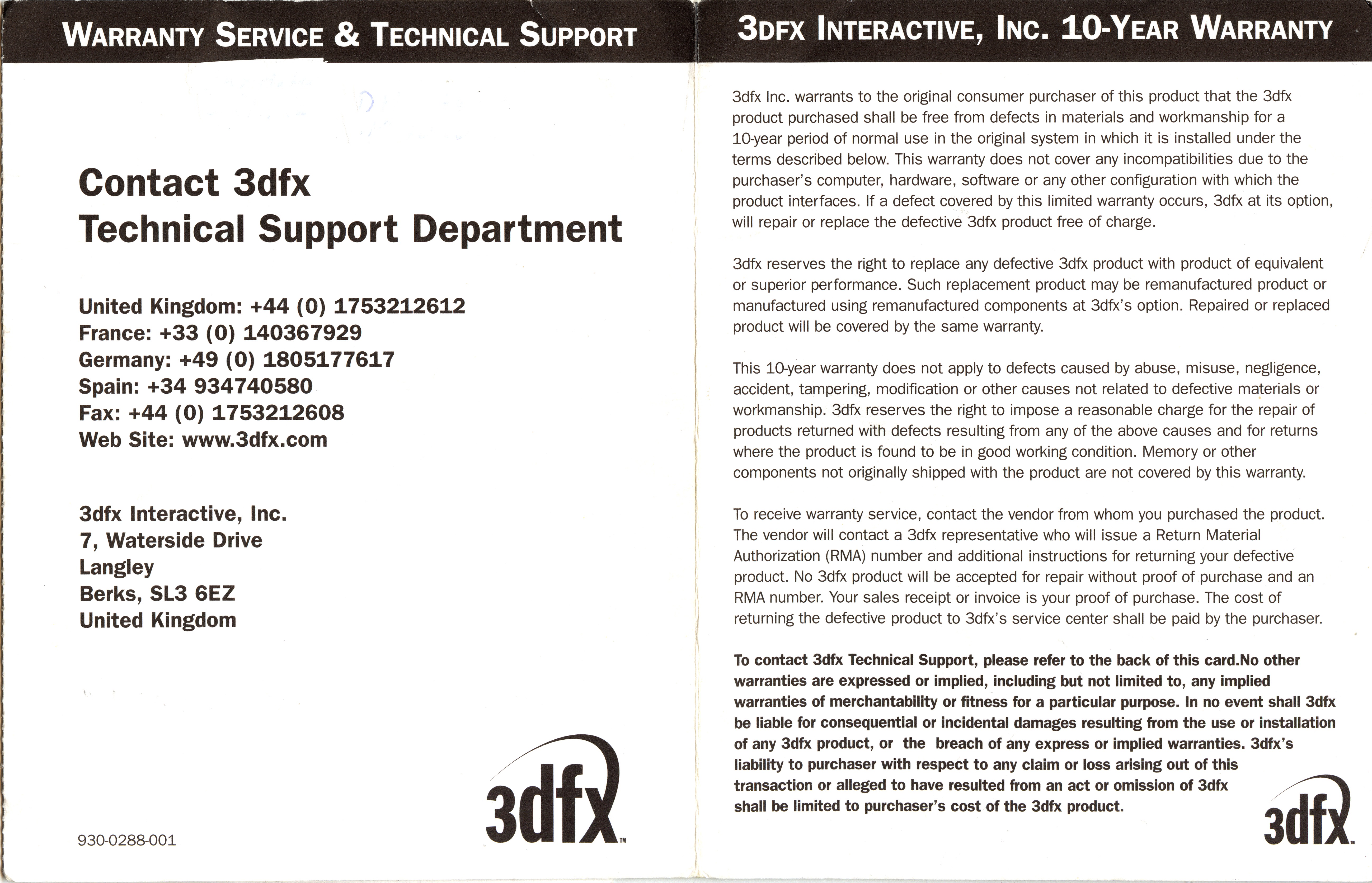

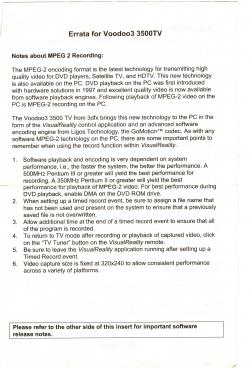

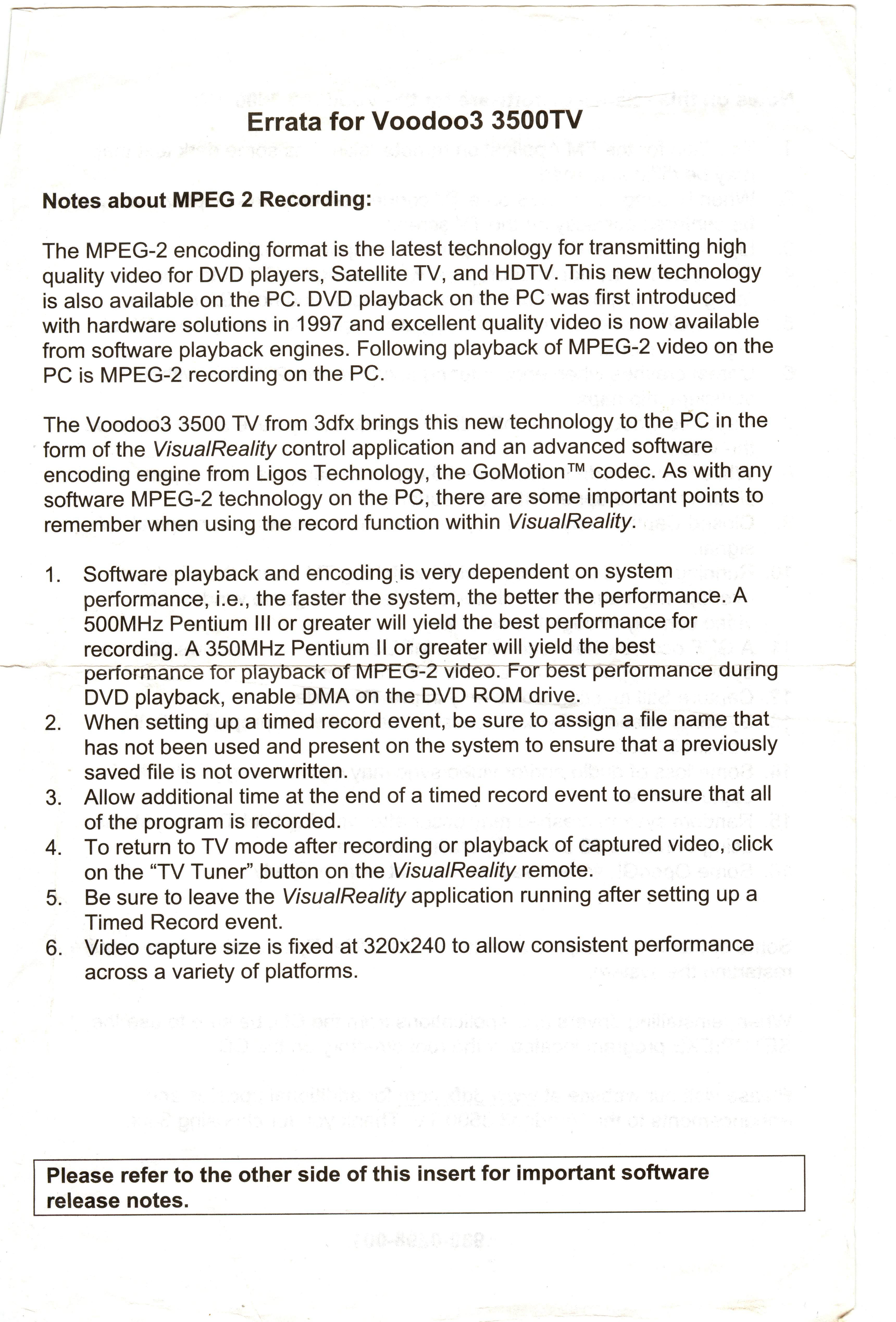

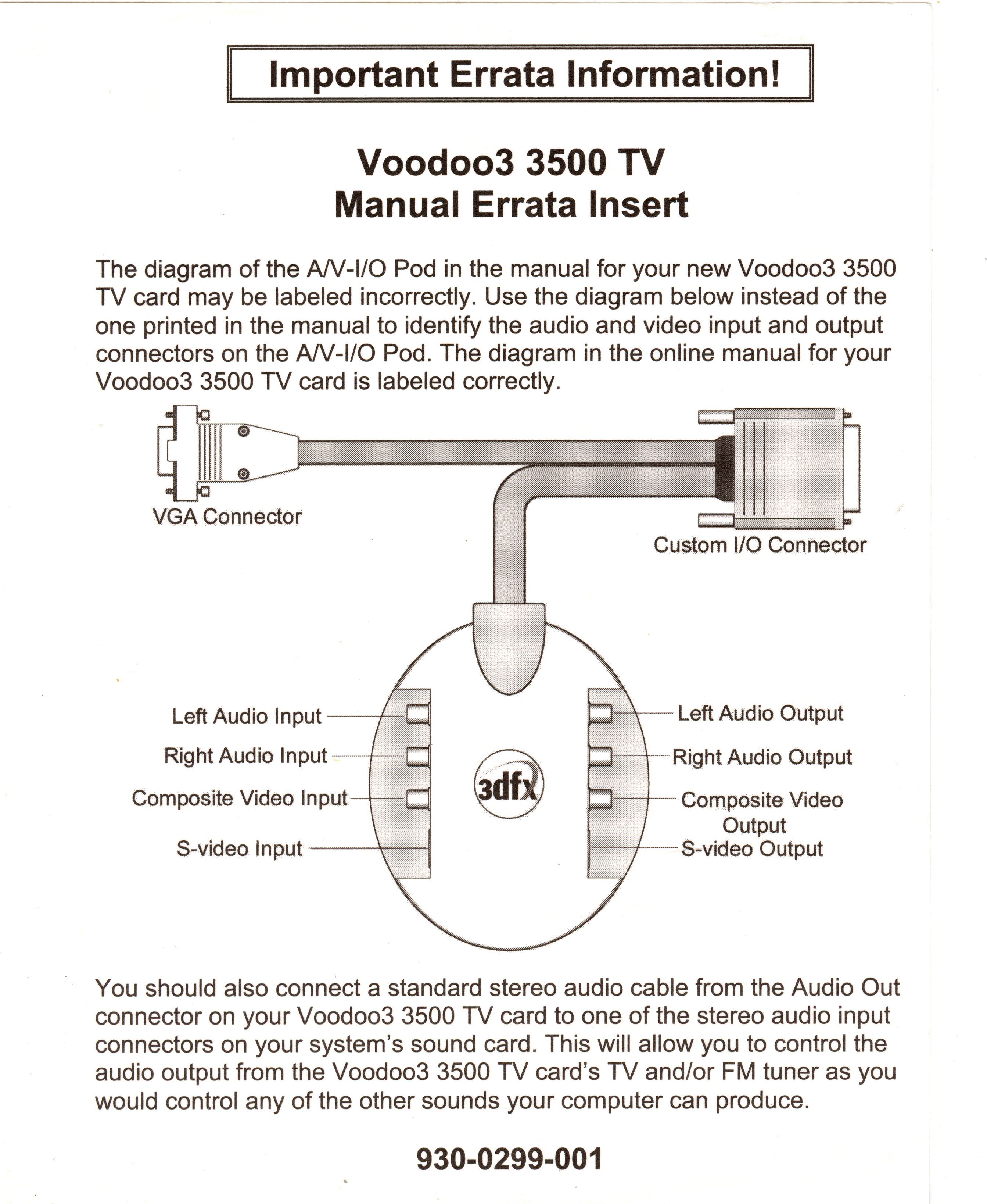

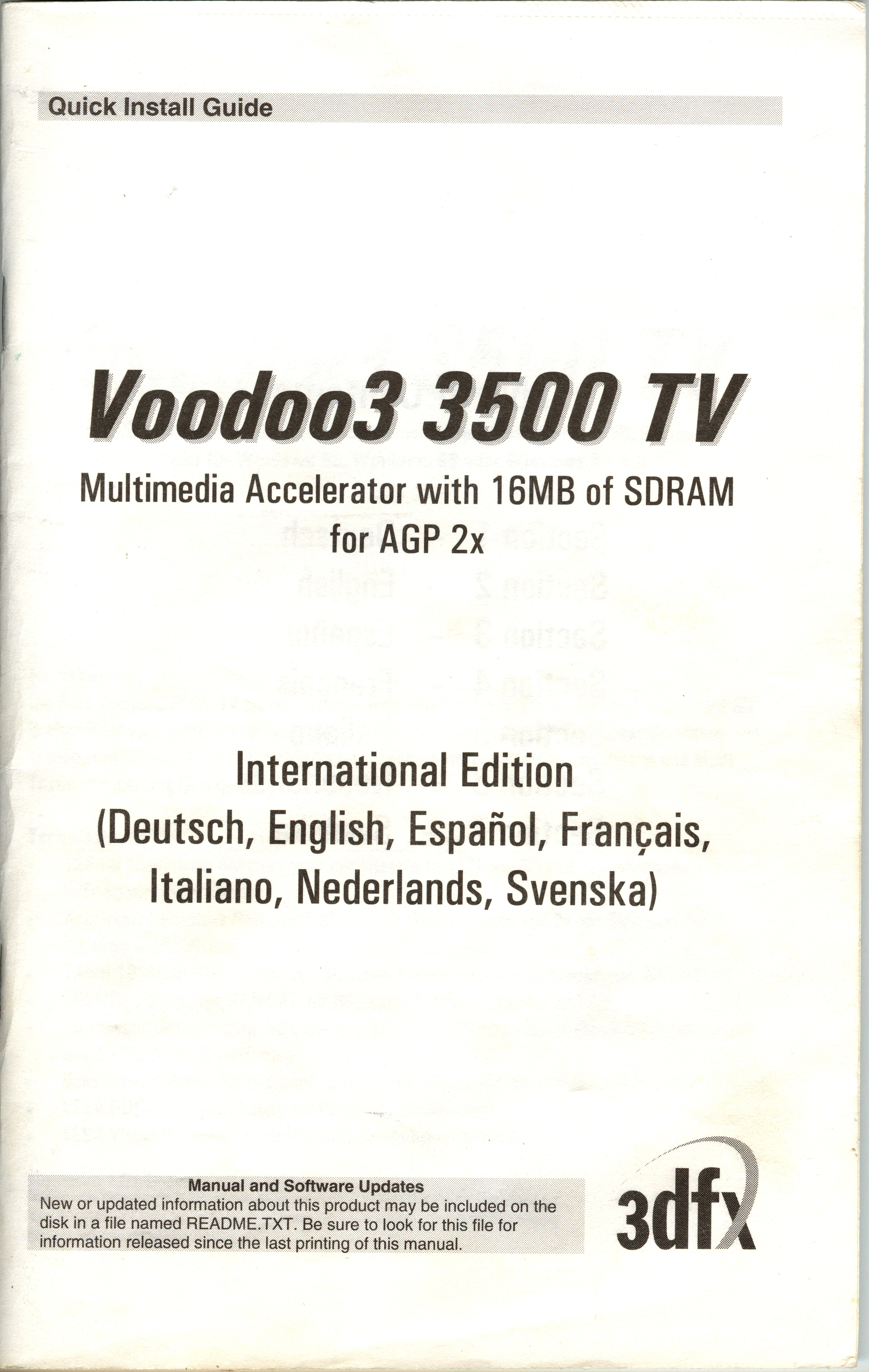

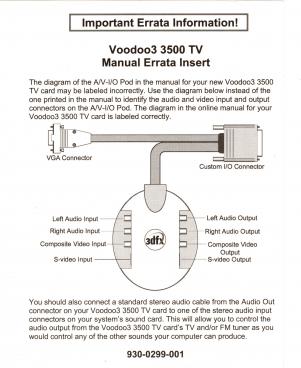

3dfx Voodoo3 3500 TV gallery
3dfx Voodoo3 3500 TV gallery
3dfx Voodoo3 3500 TV gallery
3dfx Voodoo3 3500 TV gallery
3dfx Voodoo3 3500 TV gallery
3dfx Voodoo3 3500 TV gallery
3dfx Voodoo3 3500 TV gallery
3dfx Voodoo3 3500 TV gallery
3dfx Voodoo3 3500 TV gallery
3dfx Voodoo3 3500 TV gallery
