Compaq Riva TNT2 Pro (16 MB)
Published: (last update )
| GPU | |
|---|---|
| GPU type | NV5 |
| Manufacturing process | 250 nm |
| Transistors | 15 million |
| Die size | 90 mm2 |
| Density | 0.17 M / mm2 |
| ROPs | 2 |
| TMUs | 2 |
| Pixel shaders | - |
| Vertex shaders | - |
| Unified shaders | - |
| Clock | 143 MHz |
| Pixel fillrate | 286 MP/s |
| Texel fillrate | 286 MT/s |
| SP gigaflops | - |
| DP gigaflops | - |
| DirectX | 6 |
| OpenGL | 1.2 |
| OpenCL / Compute ver. | - |
| Memory | |
|---|---|
| Capacity | 16 MB |
| Type | SGRAM |
| Clock | 166 MHz |
| Bus width | 128 bit |
| Bandwith | 2 656 MB/s |
| Rated speed | 166 MHz |
| Brand | EtronTech |
| The card | |
| Manufacturer | Compaq |
| Interface | AGP 4x |
| Interface bandwith | 1 066 MB/s |
| TDP | - |
| Analog I/O ports | 1 × VGA |
| Digital I/O ports | - |
| Independent screens | 1 |
| Manufacture date | 28th week of 2000 |
| Release date | 1999 |

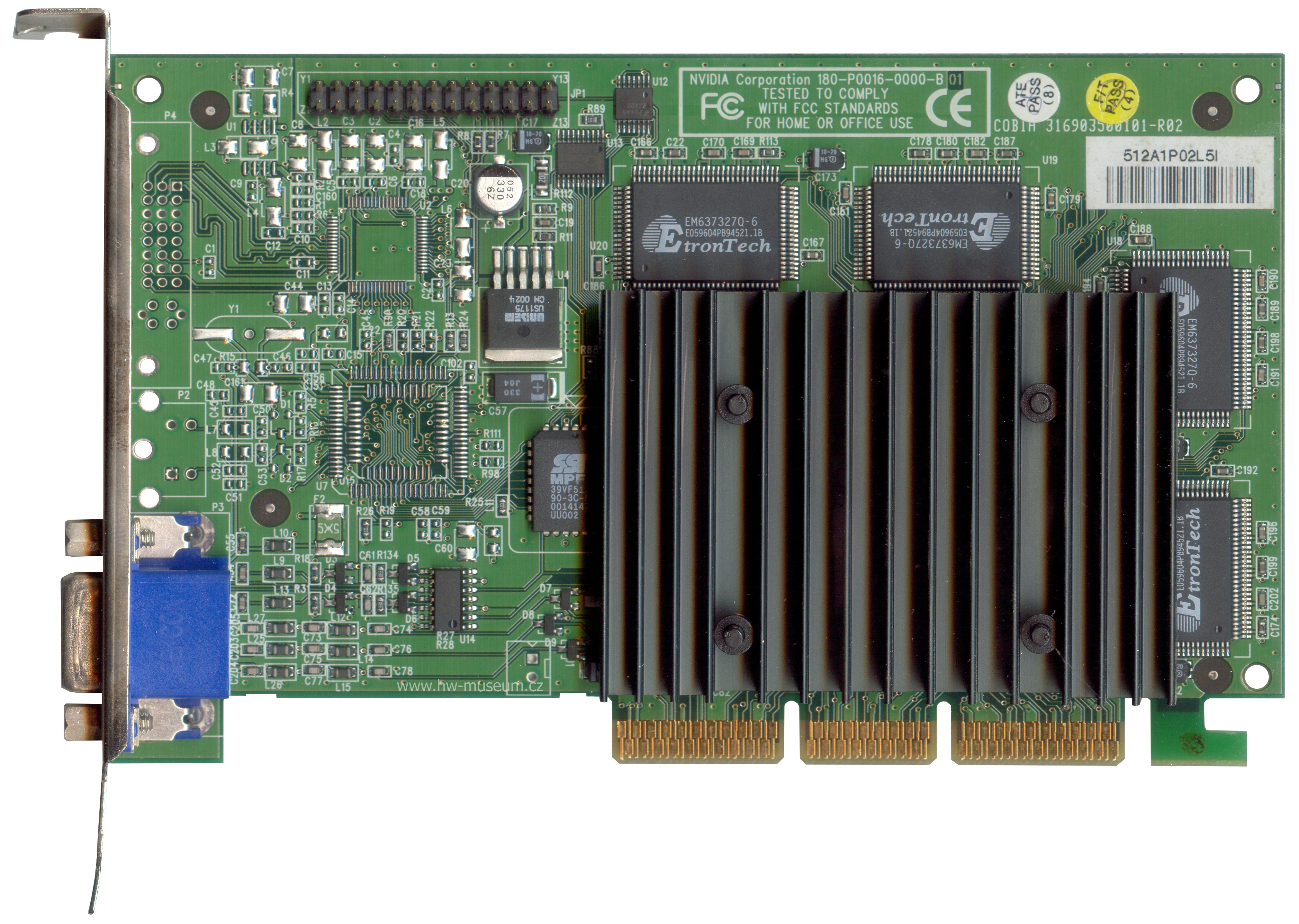

_F.jpg "Click to enlarge")

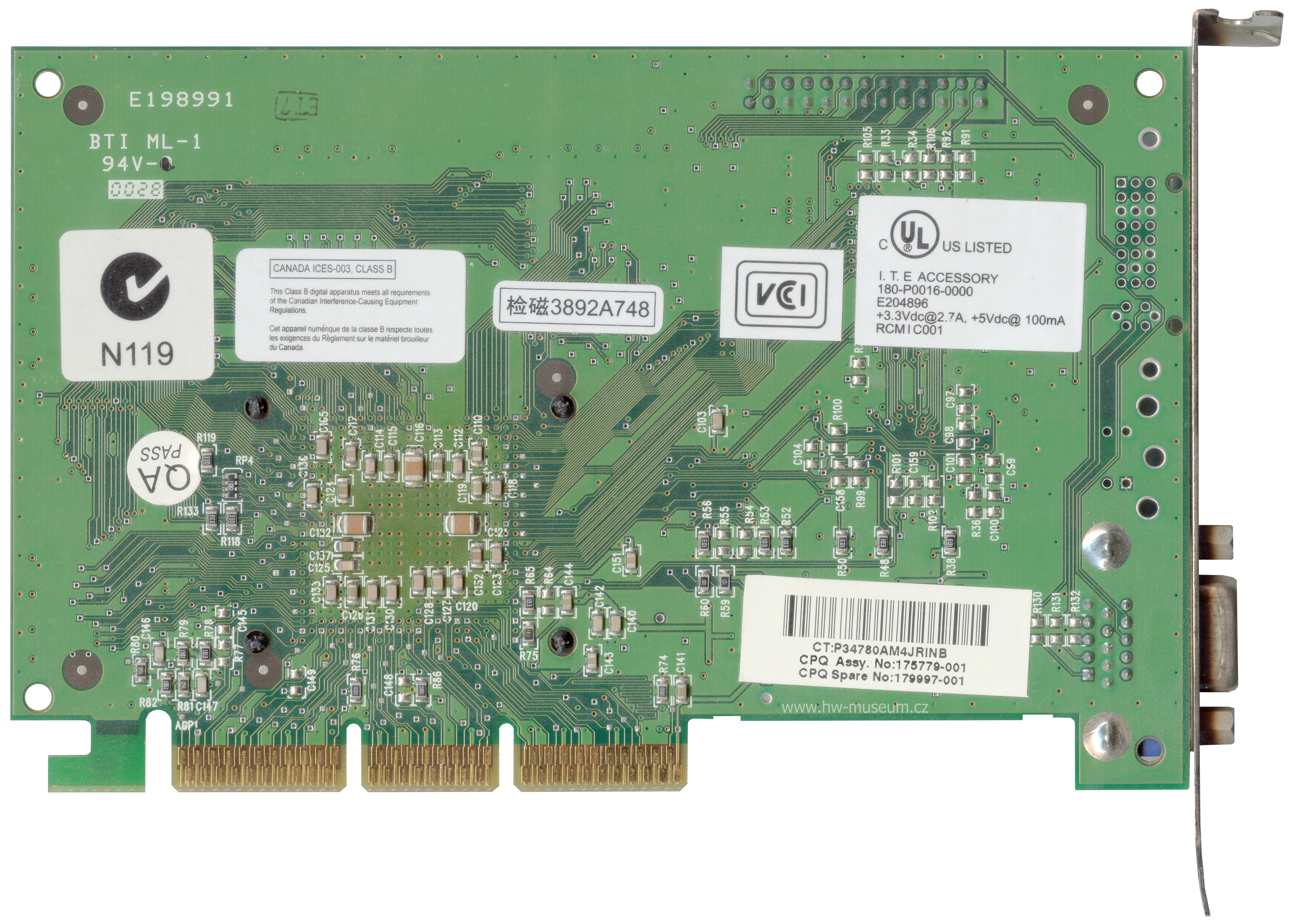

_B.jpg "Click to enlarge")
