A-Trend Helios 3D

Published: (last update )

GPU
GPU type SST1
Manufacturing process500 nm
Transistors1 million
Die size135 mm2
Density0.007 M / mm2
ROPs1
TMUs1
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock50 MHz
Pixel fillrate50 MP/s
Texel fillrate50 MT/s
SP gigaflops-
DP gigaflops-
DirectX5
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity4 MB
TypeEDO
Clock50 MHz
Bus width128 bit
Bandwith800 MB/s
Rated speed50 MHz
BrandAlliance
The card
ManufacturerA-Trend
InterfacePCI
Interface bandwith133 MB/s
TDP-
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date-
Release date1996

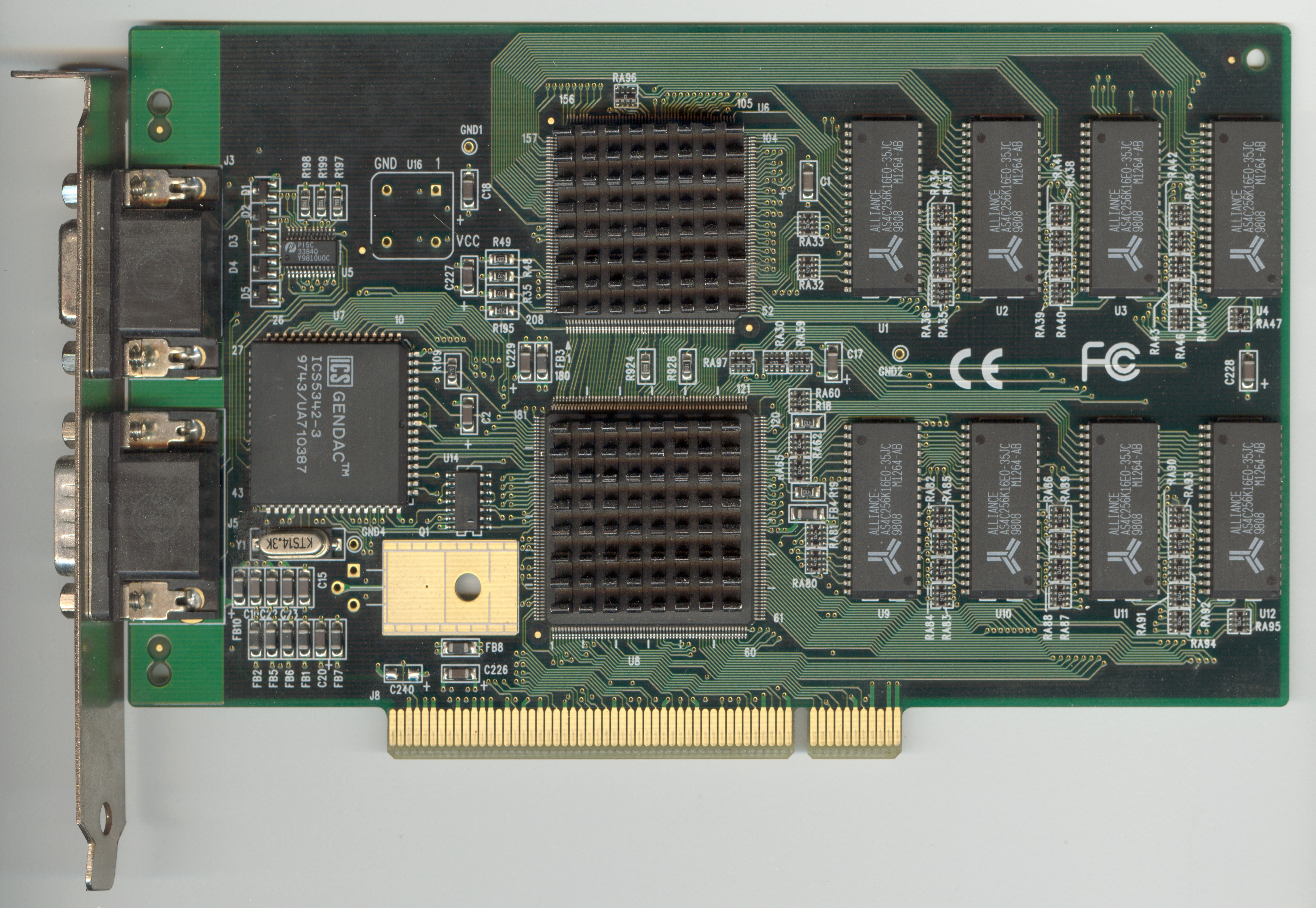

A-Trend Helios 3D (front side)

A-Trend Helios 3D (front side)

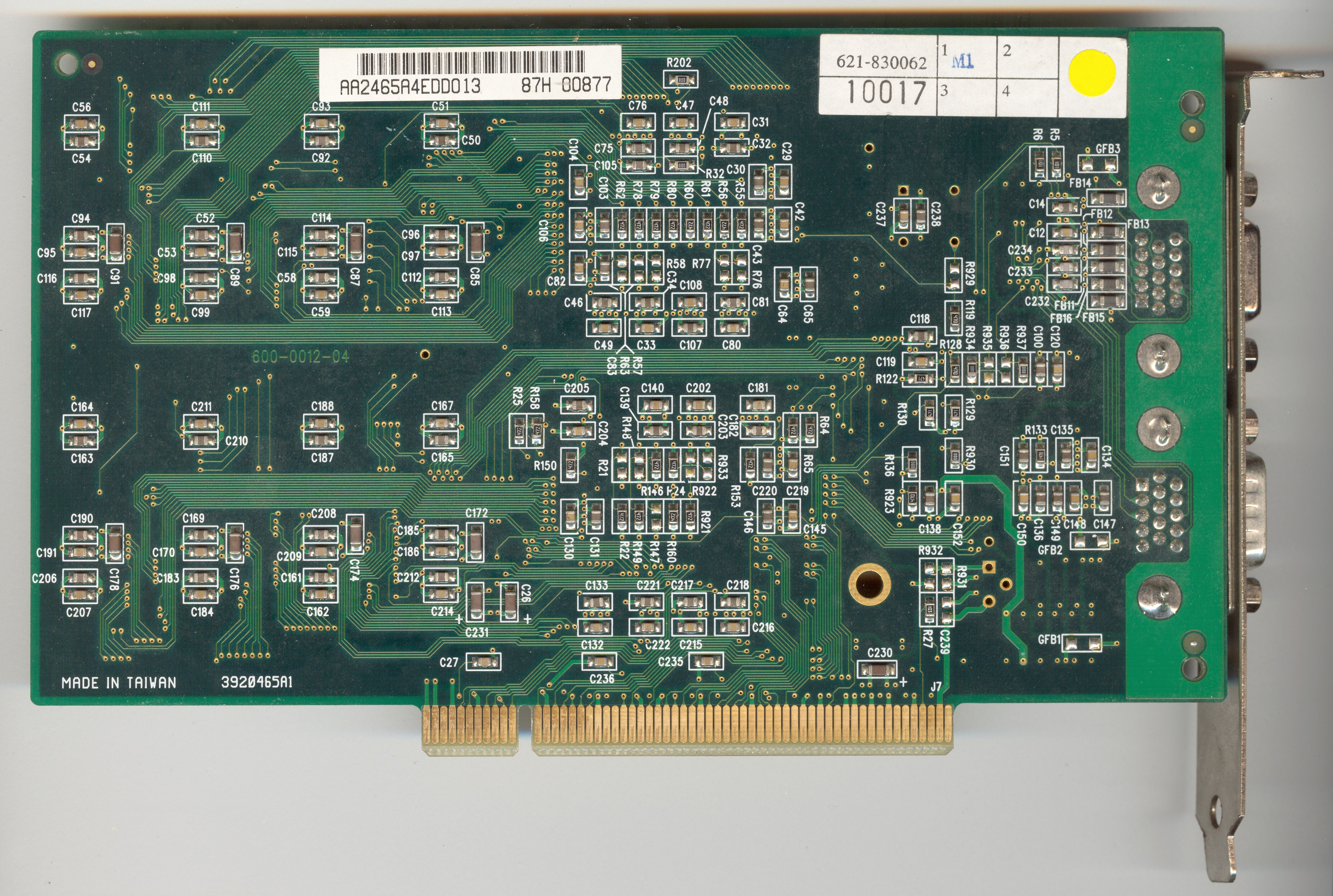

A-Trend Helios 3D (back side)

A-Trend Helios 3D (back side)
