Asus GeForce 8800 GTS 640

Published: (last update )

GPU
GPU type G80
Manufacturing process90 nm
Transistors681 million
Die size484 mm2
Density1.41 M / mm2
ROPs20
TMUs24
Pixel shaders-
Vertex shaders-
Unified shaders96
Clock513 MHz
Pixel fillrate10 260 MP/s
Texel fillrate12 312 MT/s
SP gigaflops346
DP gigaflops-
DirectX10
OpenGL3.3
OpenCL / Compute ver.1.1 / 1.0
Memory
Capacity640 MB
TypeGDDR3
Clock1 600 MHz
Bus width320 bit
Bandwith64 000 MB/s
Rated speed-
Brand-
The card
ManufacturerAsus
InterfacePCI-E x16
Interface bandwith4 096 MB/s
TDP143 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date49th week of 2006
Release date2006

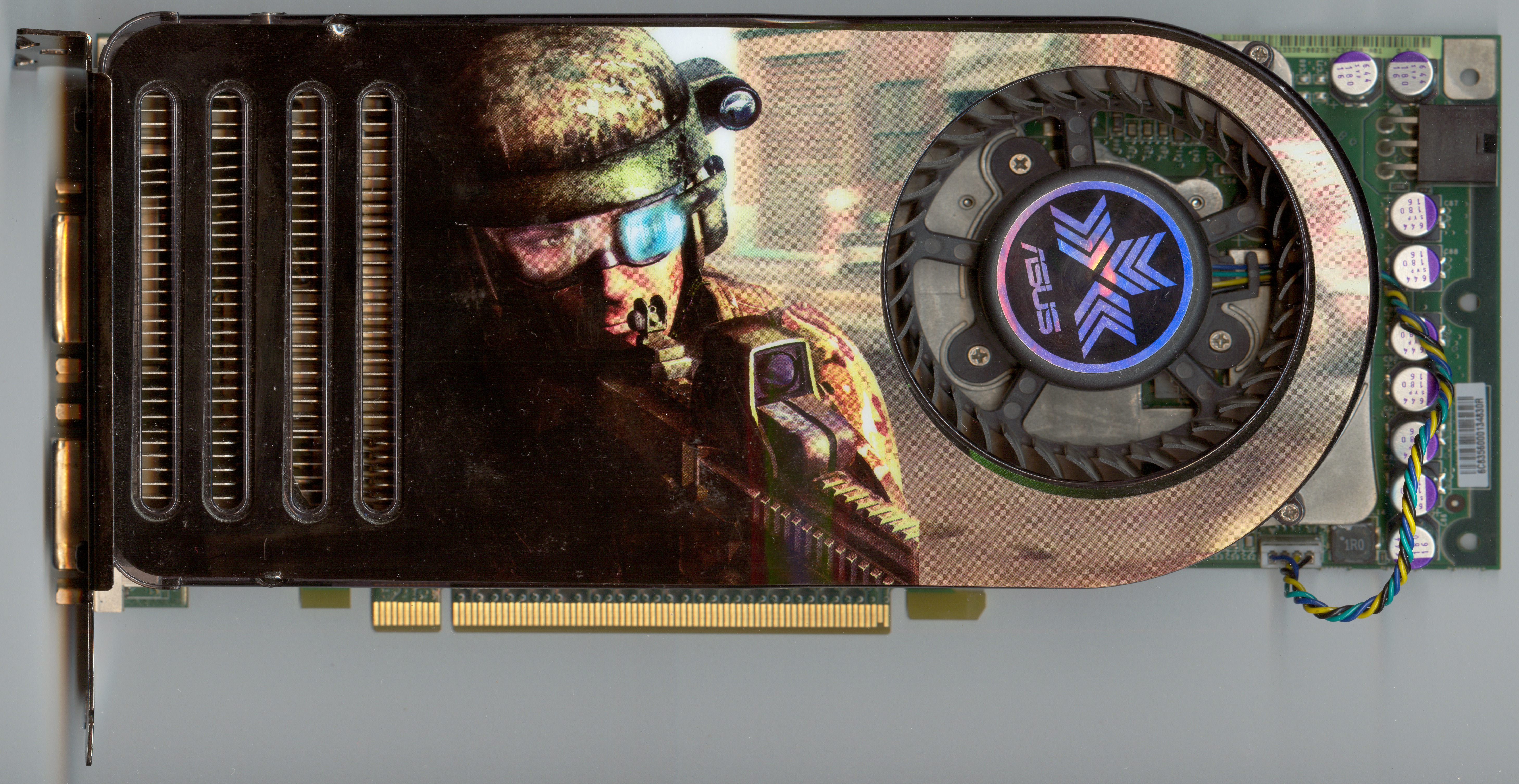

Asus GeForce 8800 GTS 640 (front side)

Asus GeForce 8800 GTS 640 (front side)

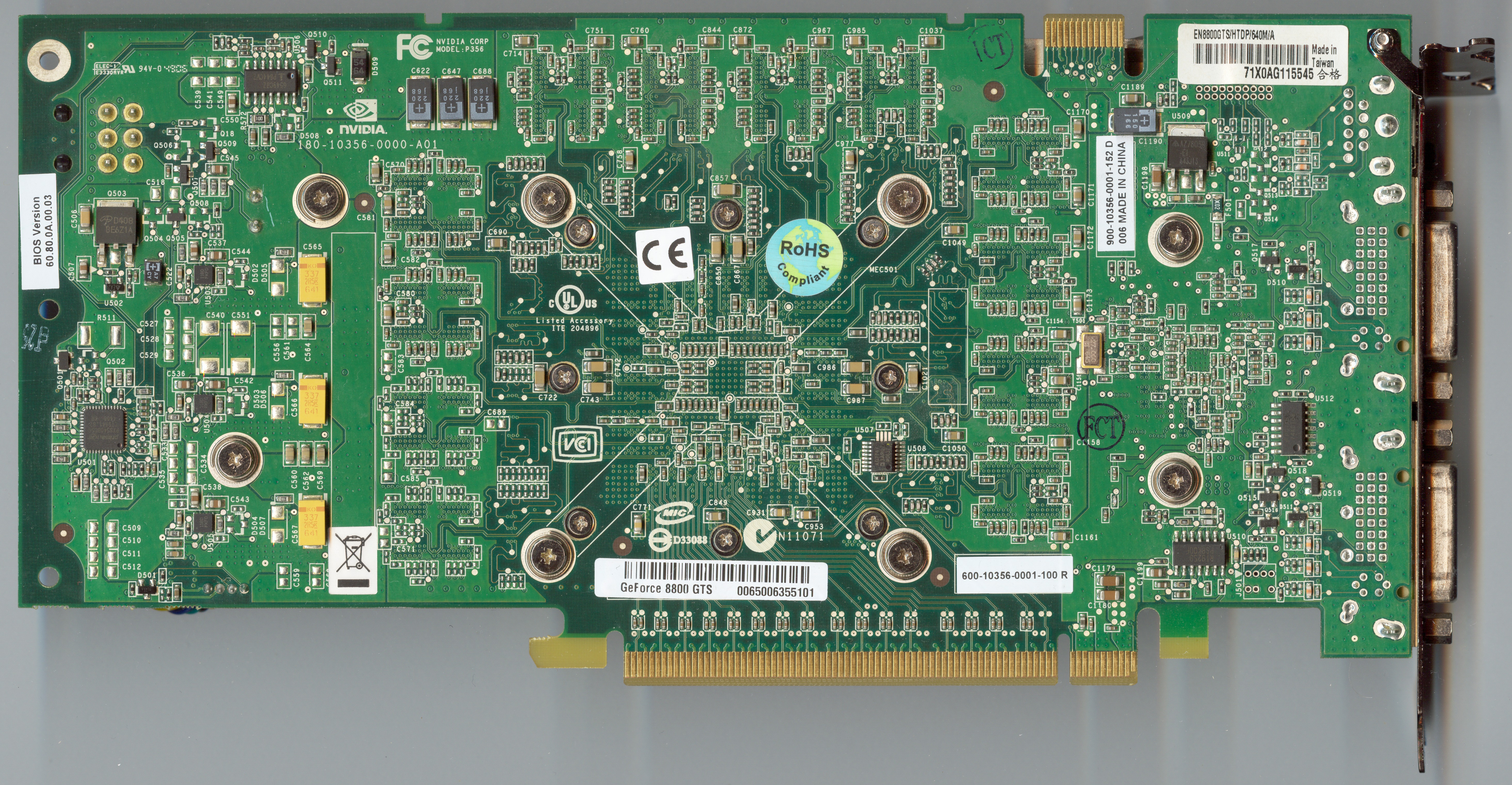

Asus GeForce 8800 GTS 640 (back side)

Asus GeForce 8800 GTS 640 (back side)
