Gigabyte GeForce 7600 GT (80nm)

Published: (last update )

GPU
GPU type G73 (80 nm)
Manufacturing process80 nm
Transistors177 million
Die size100 mm2
Density1.77 M / mm2
ROPs8
TMUs12
Pixel shaders12
Vertex shaders5
Unified shaders-
Clock560 MHz
Pixel fillrate4 480 MP/s
Texel fillrate6 720 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.1
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock1 400 MHz
Bus width128 bit
Bandwith22 400 MB/s
Rated speed1 400 MHz
BrandQimonda
The card
ManufacturerGigabyte
InterfacePCI-E x16
Interface bandwith4 096 MB/s
TDP40 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date32nd week of 2006
Release date2007

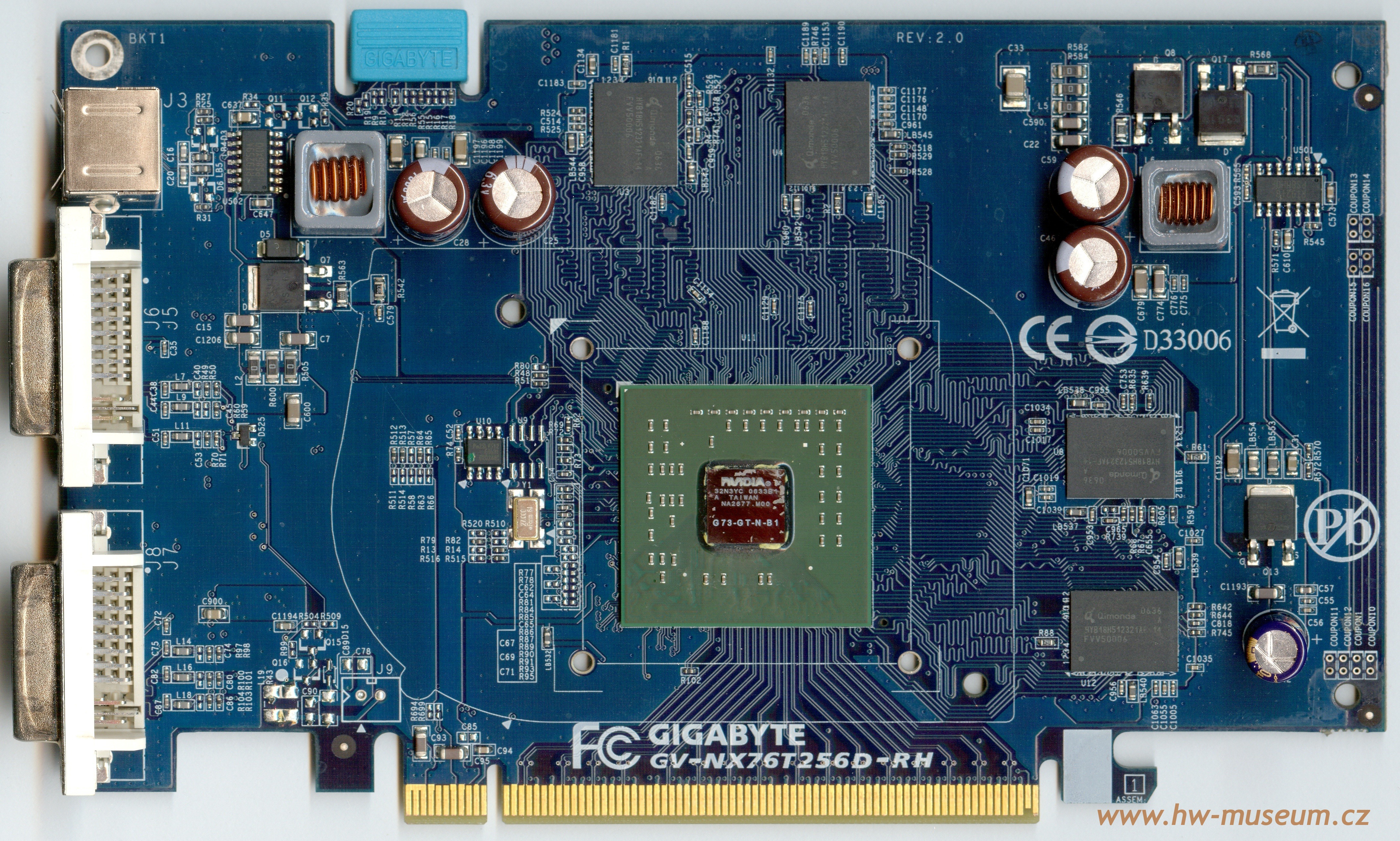

Gigabyte GeForce 7600 GT (80nm) (front side)

Gigabyte GeForce 7600 GT (80nm) (front side)

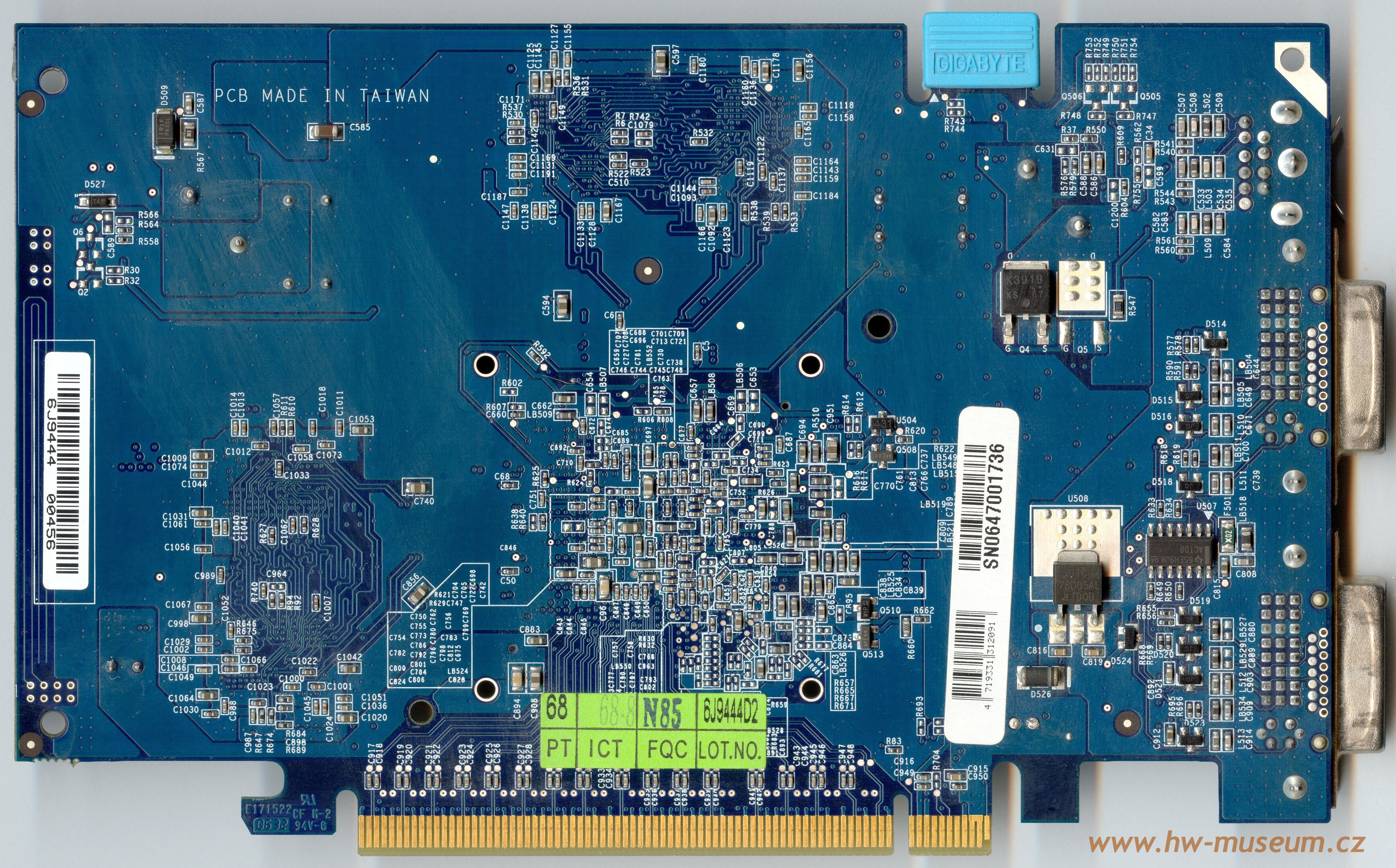

Gigabyte GeForce 7600 GT (80nm) (back side)

Gigabyte GeForce 7600 GT (80nm) (back side)

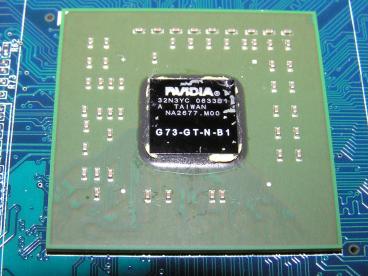

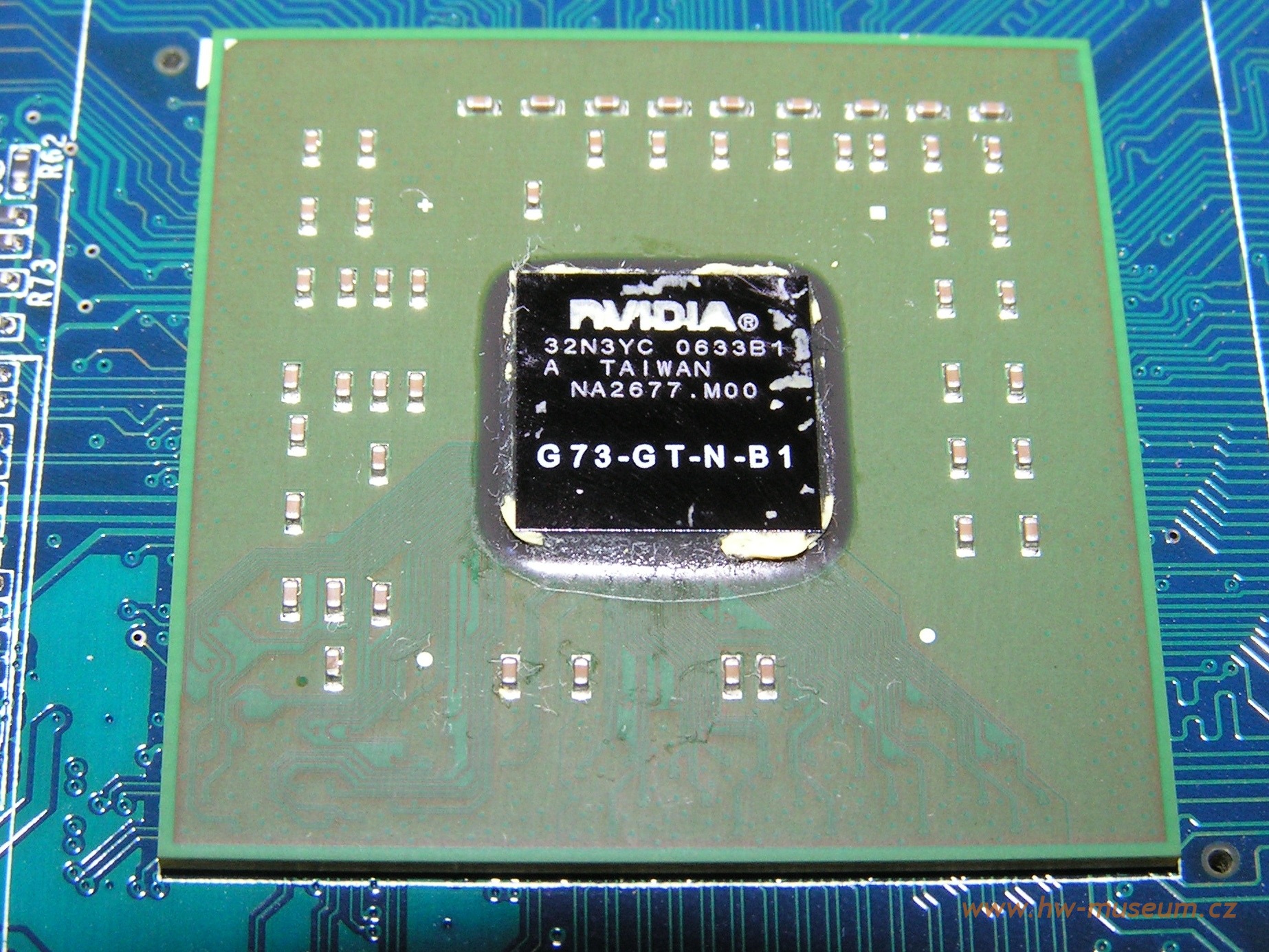

Gigabyte GeForce 7600 GT (80nm) gallery
Gigabyte GeForce 7600 GT (80nm) gallery
