nVidia Quadro4 980 XGL

Published: (last update )

GPU
GPU type NV28
Manufacturing process150 nm
Transistors63 million
Die size150 mm2
Density0.42 M / mm2
ROPs4
TMUs8
Pixel shaders4
Vertex shaders2
Unified shaders-
Clock300 MHz
Pixel fillrate1 200 MP/s
Texel fillrate2 400 MT/s
SP gigaflops-
DP gigaflops-
DirectX8.1
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity128 MB
TypeDDR
Clock650 MHz
Bus width128 bit
Bandwith10 400 MB/s
Rated speed800 MHz
BrandSamsung
The card
ManufacturernVidia
InterfaceAGP 8x
Interface bandwith2 133 MB/s
TDP45 W
Analog I/O ports2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date53rd week of 2003
Release date2002

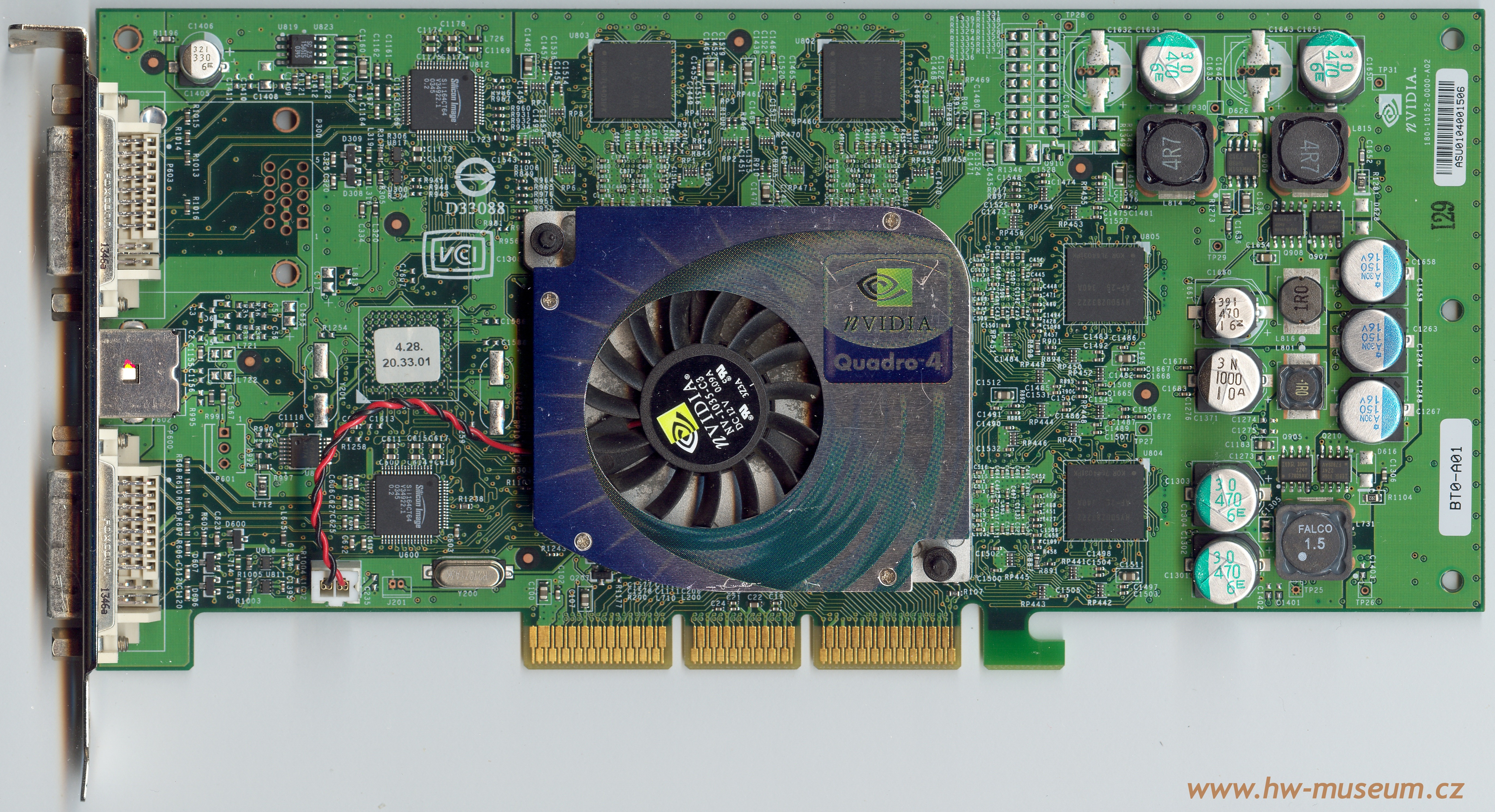

nVidia Quadro4 980 XGL (front side)

nVidia Quadro4 980 XGL (front side)

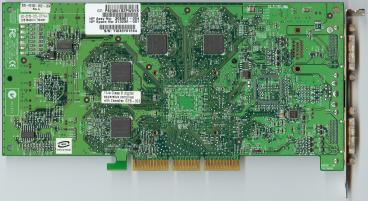

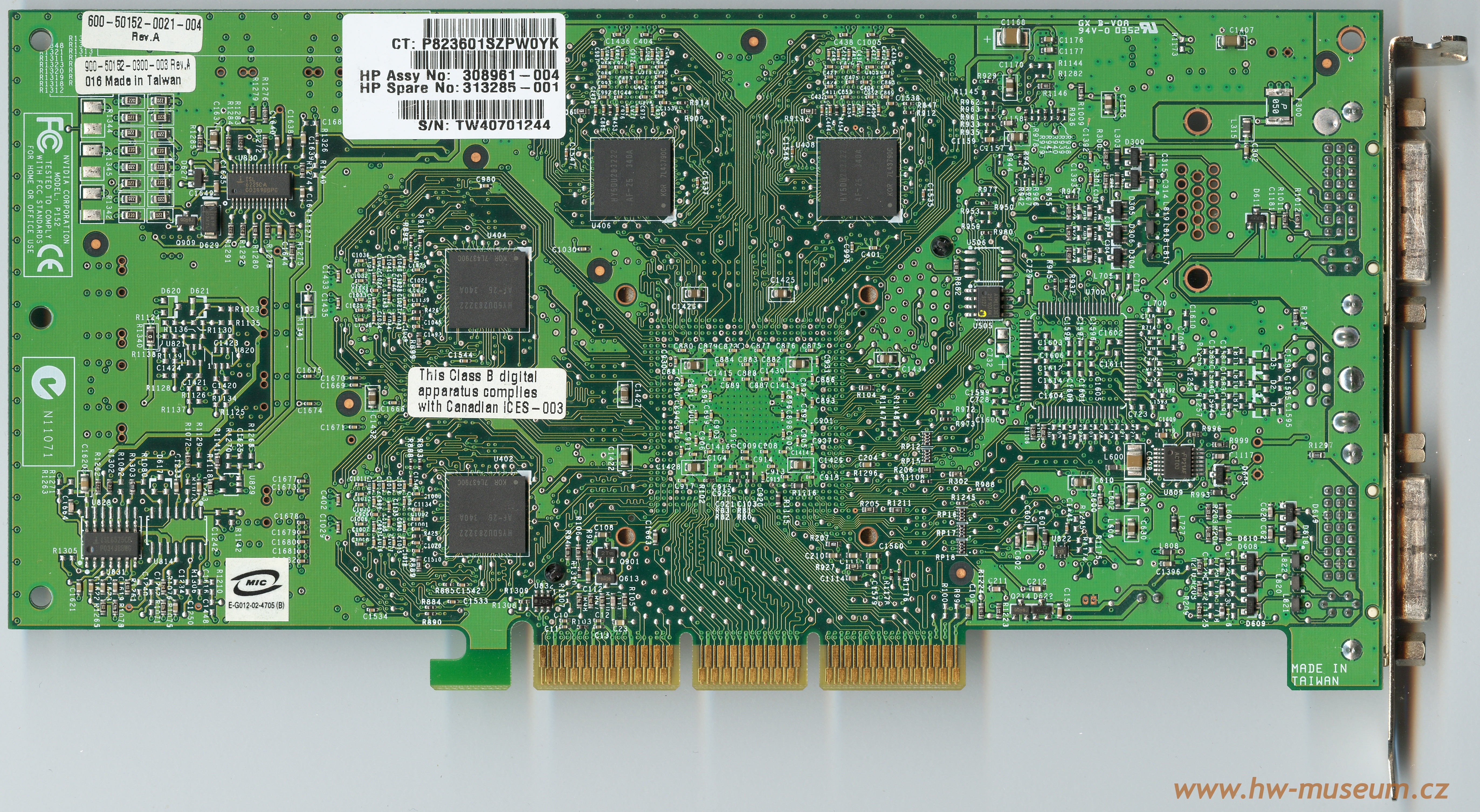

nVidia Quadro4 980 XGL (back side)

nVidia Quadro4 980 XGL (back side)
