Gainward GeForce4 Ti 4200 8x 128 MB

Published: (last update )

GPU
GPU type NV28
Manufacturing process150 nm
Transistors63 million
Die size150 mm2
Density0.42 M / mm2
ROPs4
TMUs8
Pixel shaders4
Vertex shaders2
Unified shaders-
Clock250 MHz
Pixel fillrate1 000 MP/s
Texel fillrate2 000 MT/s
SP gigaflops-
DP gigaflops-
DirectX8.1
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity128 MB
TypeDDR
Clock512 MHz
Bus width128 bit
Bandwith8 192 MB/s
Rated speed-
Brand-
The card
ManufacturerGainward
InterfaceAGP 8x
Interface bandwith2 133 MB/s
TDP35 W
Analog I/O ports1 × VGA, 1 × S-Video in, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date45th week of 2002
Release date2002

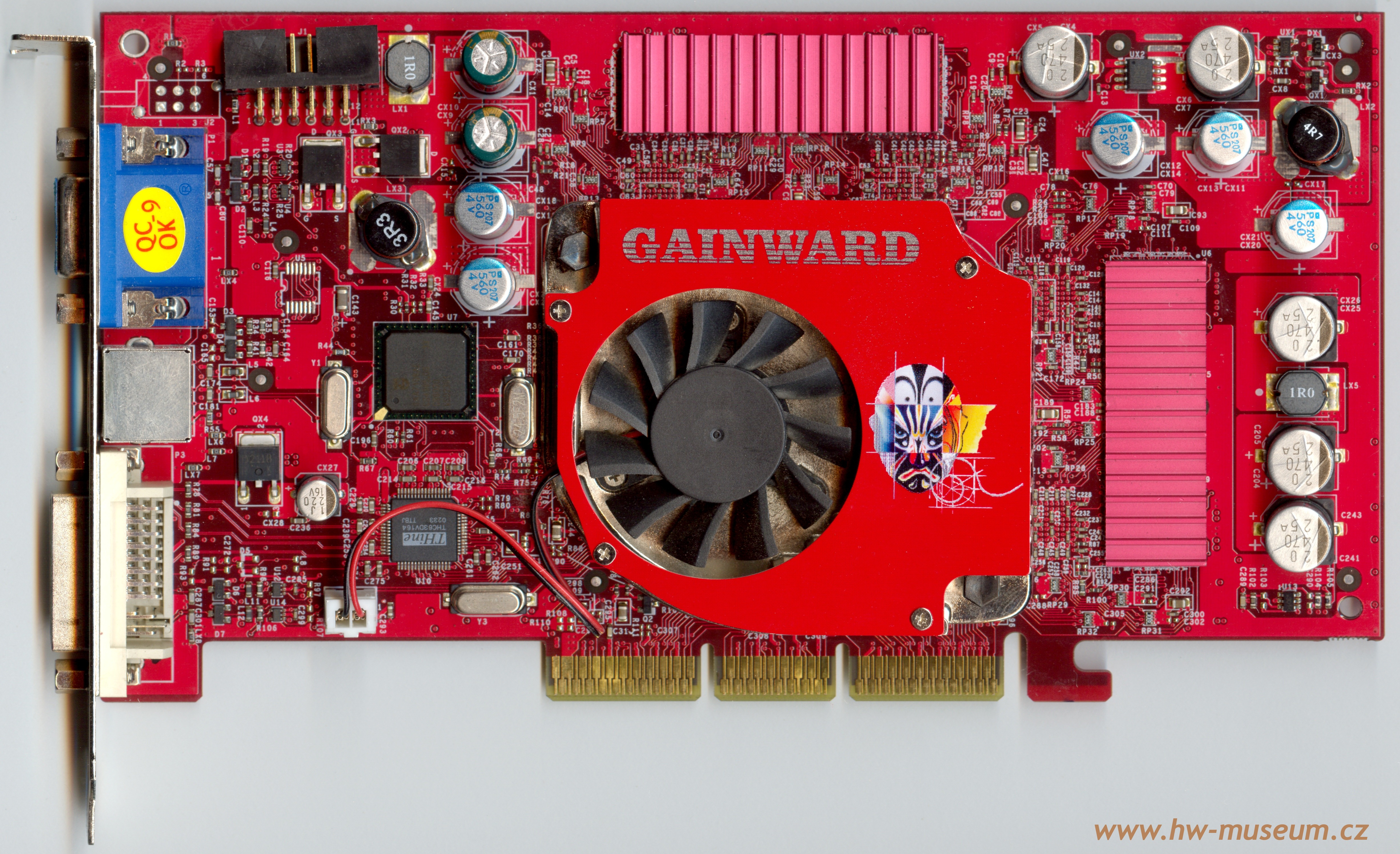

Gainward GeForce4 Ti 4200 8x 128 MB (front side)

Gainward GeForce4 Ti 4200 8x 128 MB (front side)

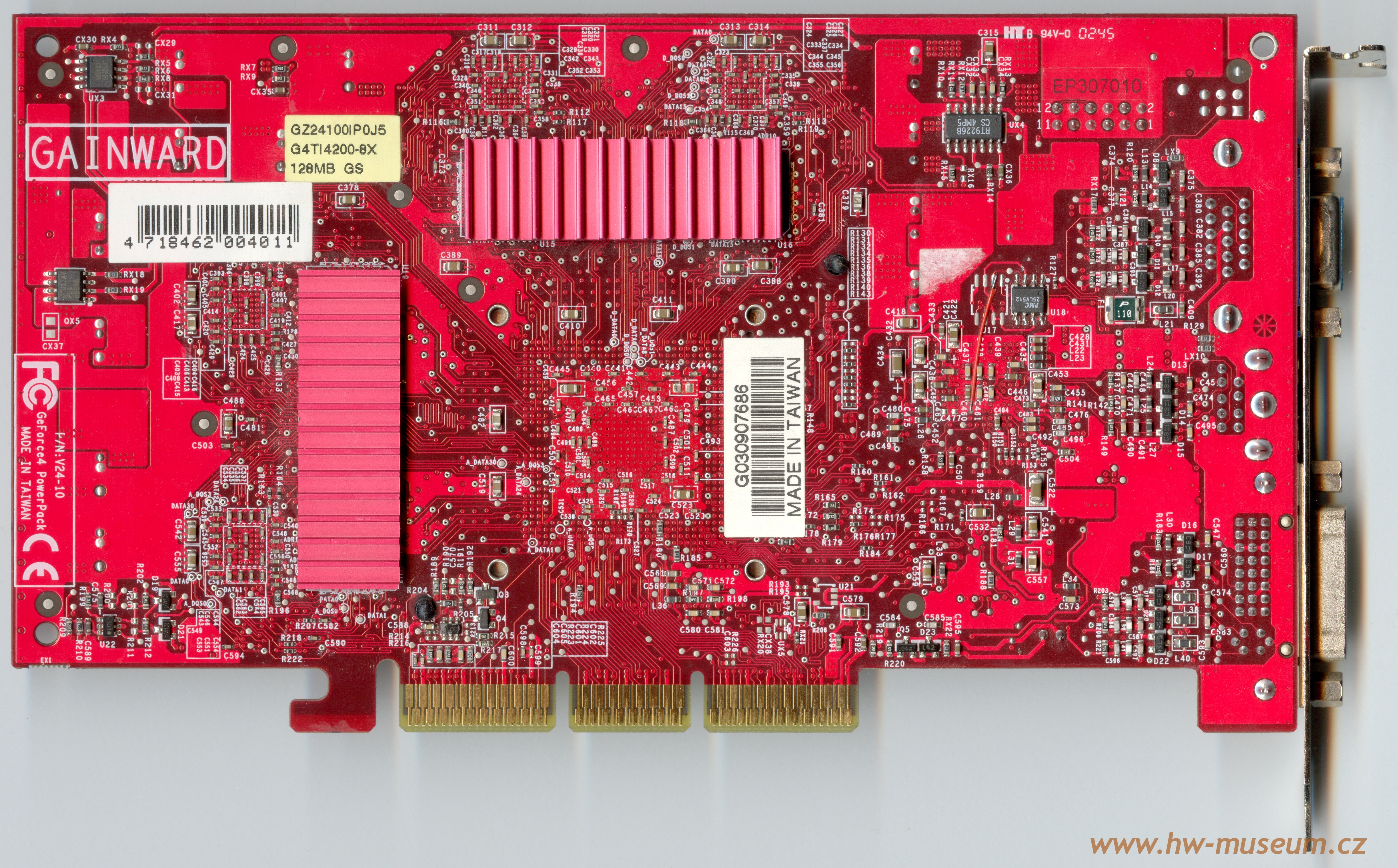

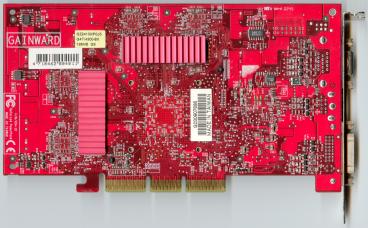

Gainward GeForce4 Ti 4200 8x 128 MB (back side)

Gainward GeForce4 Ti 4200 8x 128 MB (back side)
