MSI GeForce4 Ti 4200 8x

Published: (last update )

GPU
GPU type NV28
Manufacturing process150 nm
Transistors63 milion
Die size150 mm2
ROPs4
TMUs8
Pixel shaders4
Vertex shaders2
Unified shaders-
Clock250 MHz
Pixel fillrate1000 MP/s
Texel fillrate2000 MT/s
SP gigaflops-
DP gigaflops-
DirectX8.1
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeDDR
Clock500 MHz
Bus width128 bit
Bandwith8000 MB/s
Rated speed-
BrandHynix
The card
ManufacturerMSI
InterfaceAGP 8x
Interface bandwith2133 MB/s
TDP33 W
Analog I/O ports1 × VGA, 1 × S-Video in, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Rev
Release date2002

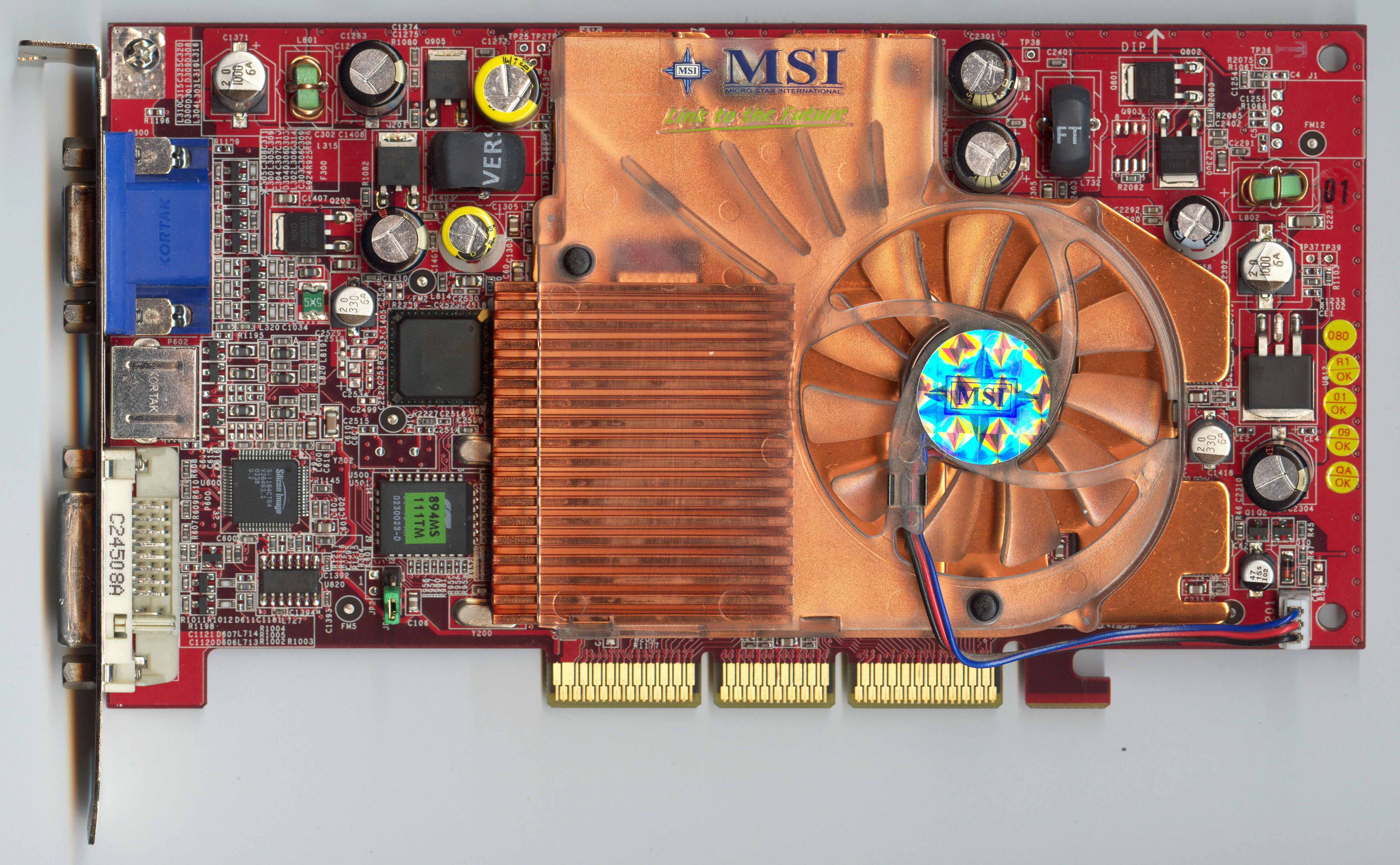

MSI GeForce4 Ti 4200 8x (front side)

MSI GeForce4 Ti 4200 8x (front side)

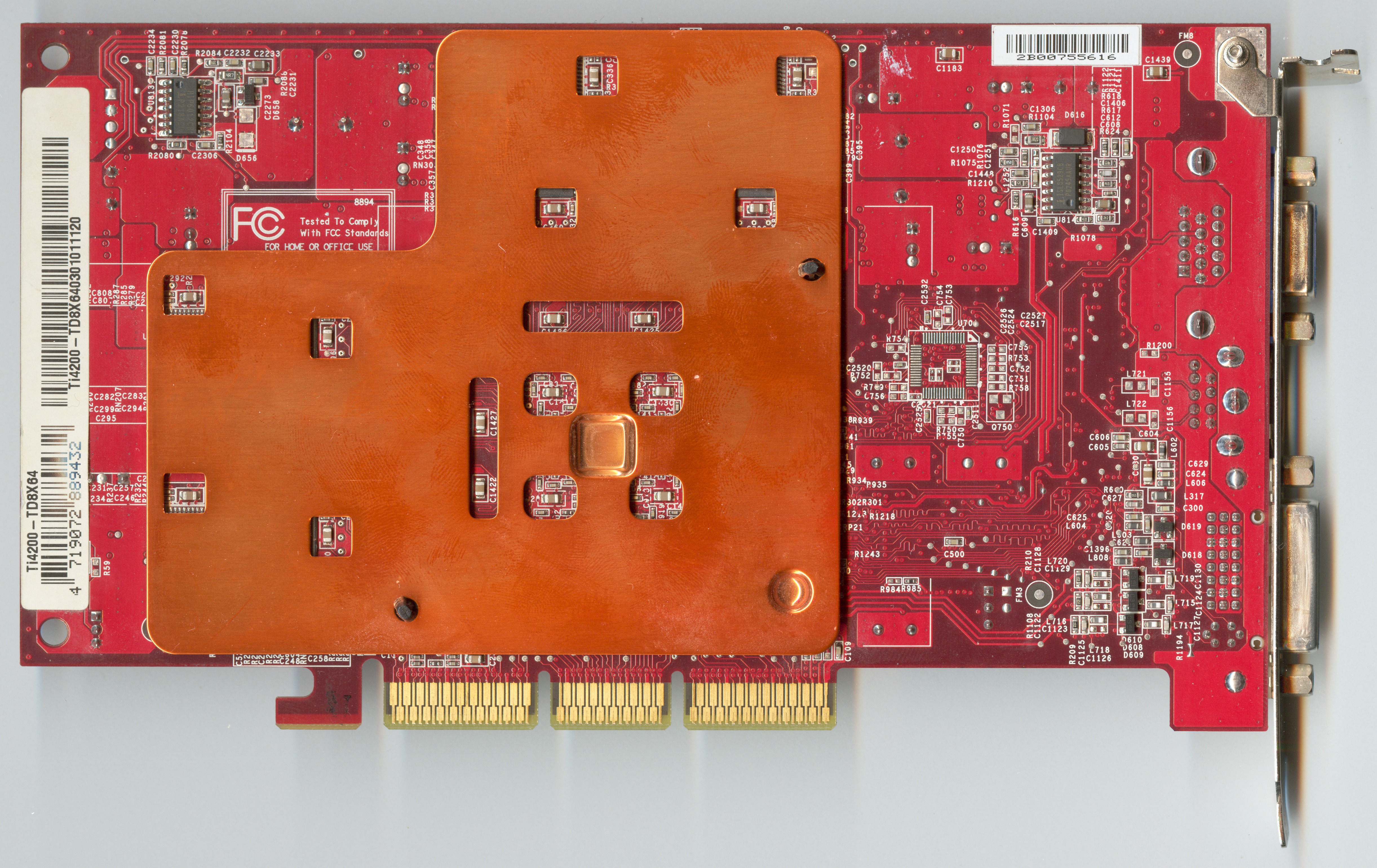

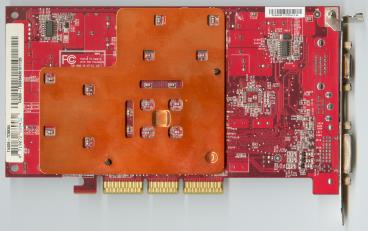

MSI GeForce4 Ti 4200 8x (back side)

MSI GeForce4 Ti 4200 8x (back side)
