Gainward GeForce3 Ti 200 128 MB

Published: (last update )

GPU
GPU type NV20
Manufacturing process150 nm
Transistors57 million
Die size145 mm2
Density0.39 M / mm2
ROPs4
TMUs8
Pixel shaders4
Vertex shaders1
Unified shaders-
Clock175 MHz
Pixel fillrate700 MP/s
Texel fillrate1 400 MT/s
SP gigaflops-
DP gigaflops-
DirectX8
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity128 MB
TypeDDR
Clock400 MHz
Bus width128 bit
Bandwith6 400 MB/s
Rated speed-
Brand-
The card
ManufacturerGainward
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP40 W
Analog I/O ports1 × VGA, 1 × S-Video out
Digital I/O ports-
Independent screens2
Manufacture date52nd week of 2001
Release date2001

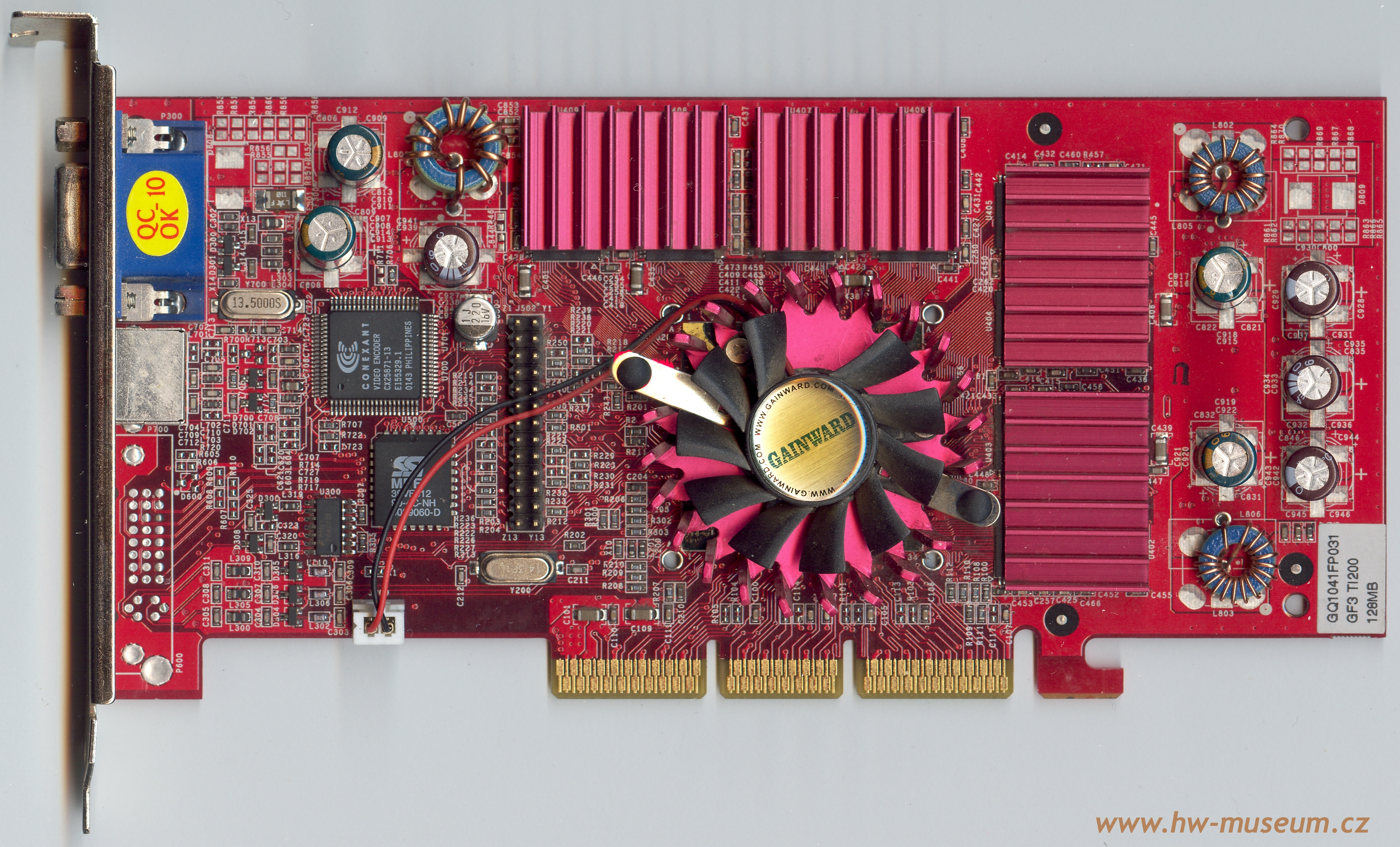

Gainward GeForce3 Ti 200 128 MB (front side)

Gainward GeForce3 Ti 200 128 MB (front side)

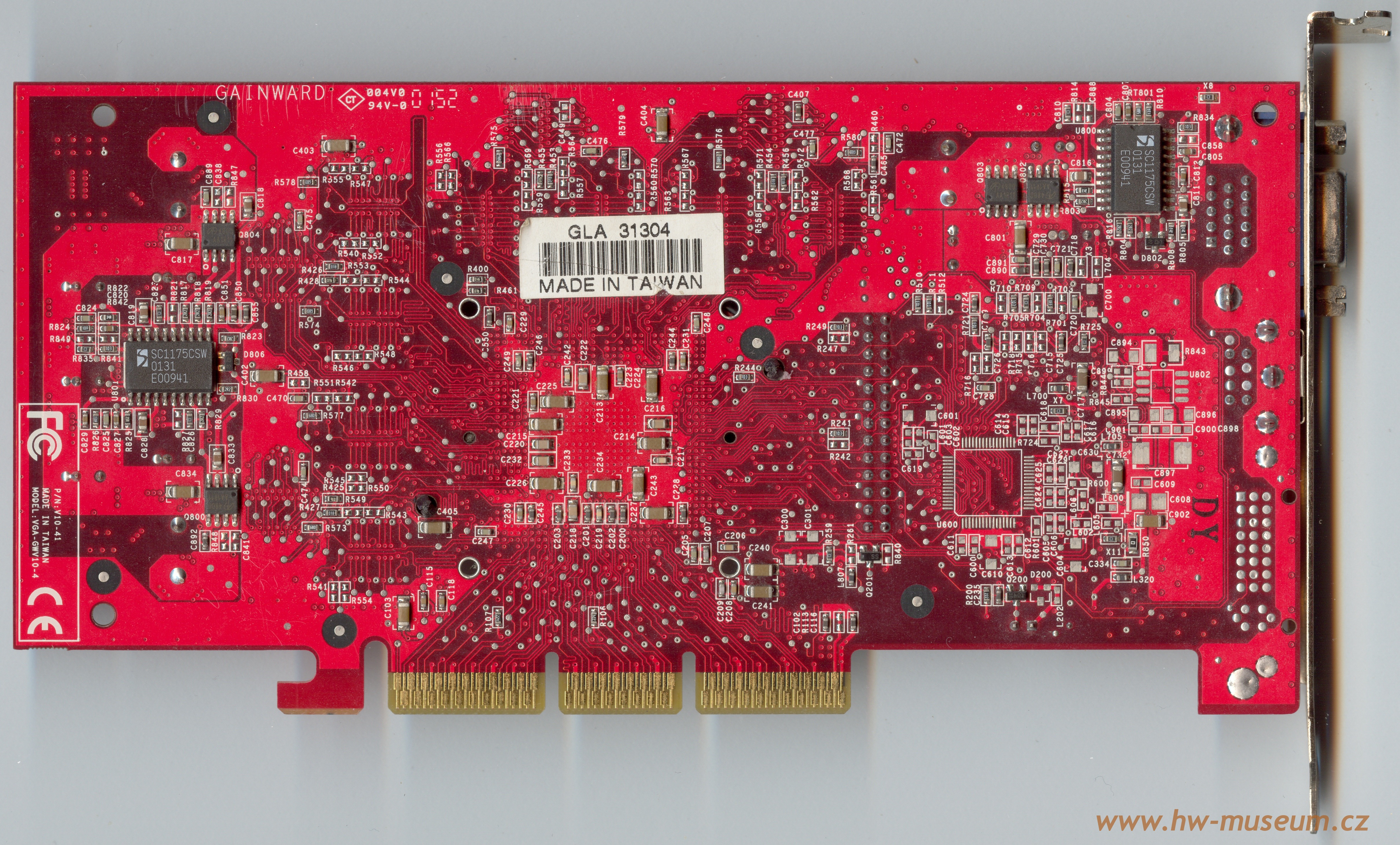

Gainward GeForce3 Ti 200 128 MB (back side)

Gainward GeForce3 Ti 200 128 MB (back side)
