Medion GeForce3 Ti 200

Published: (last update )

GPU
GPU type NV20
Manufacturing process150 nm
Transistors57 milion
Die size145 mm2
ROPs4
TMUs8
Pixel shaders4
Vertex shaders1
Unified shaders-
Clock175 MHz
Pixel fillrate700 MP/s
Texel fillrate1400 MT/s
SP gigaflops-
DP gigaflops-
DirectX8
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeDDR
Clock400 MHz
Bus width128 bit
Bandwith6400 MB/s
Rated speed500 MHz
BrandElite MT
The card
ManufacturerMedion
InterfaceAGP 4x
Interface bandwith1066 MB/s
TDP35 W
Analog I/O ports1 × VGA, 1 × Composite out, 1 × S-Video out
Digital I/O ports-
Independent screens2
Rev
Release date2001

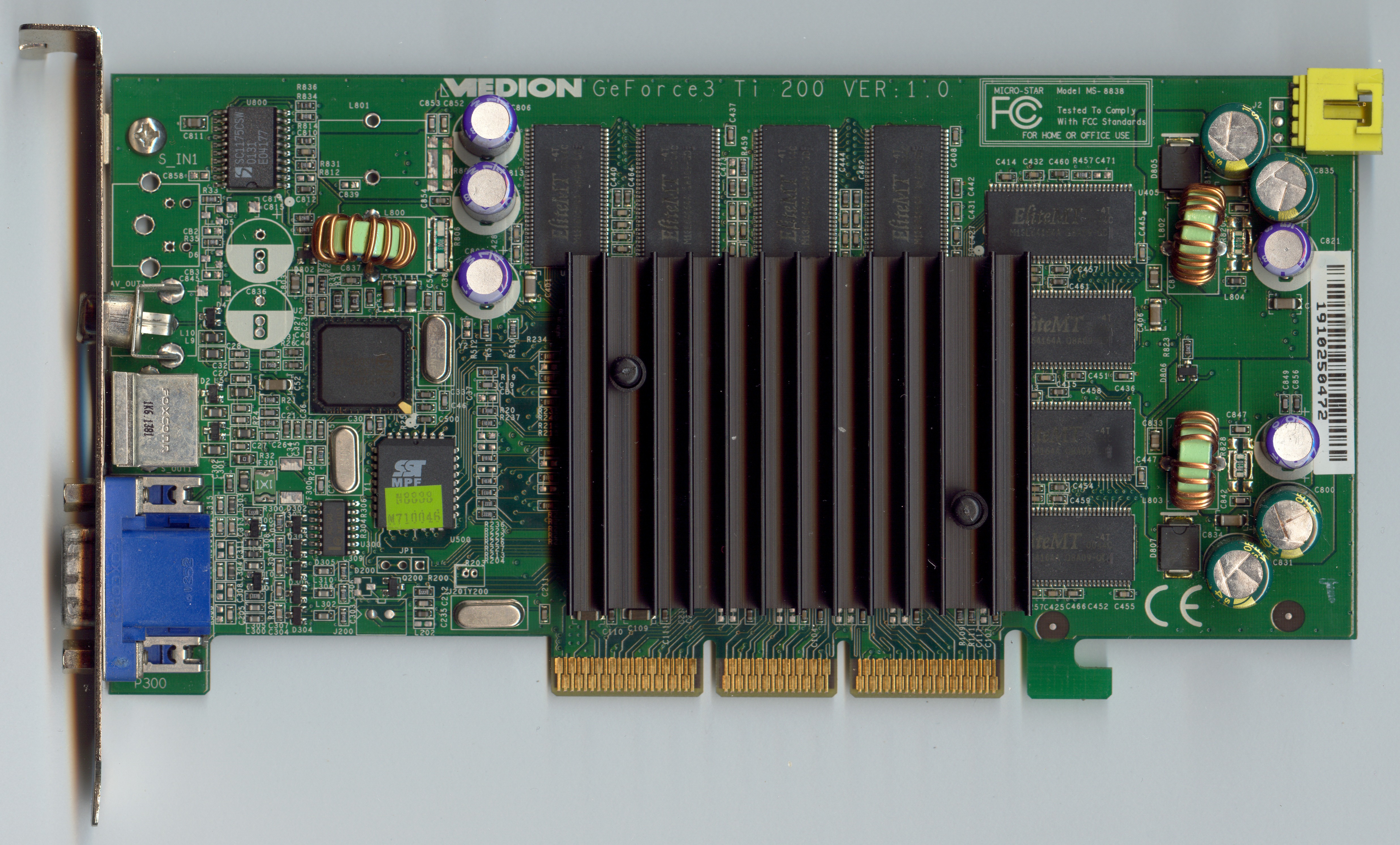

Medion GeForce3 Ti 200 (front side)

Medion GeForce3 Ti 200 (front side)

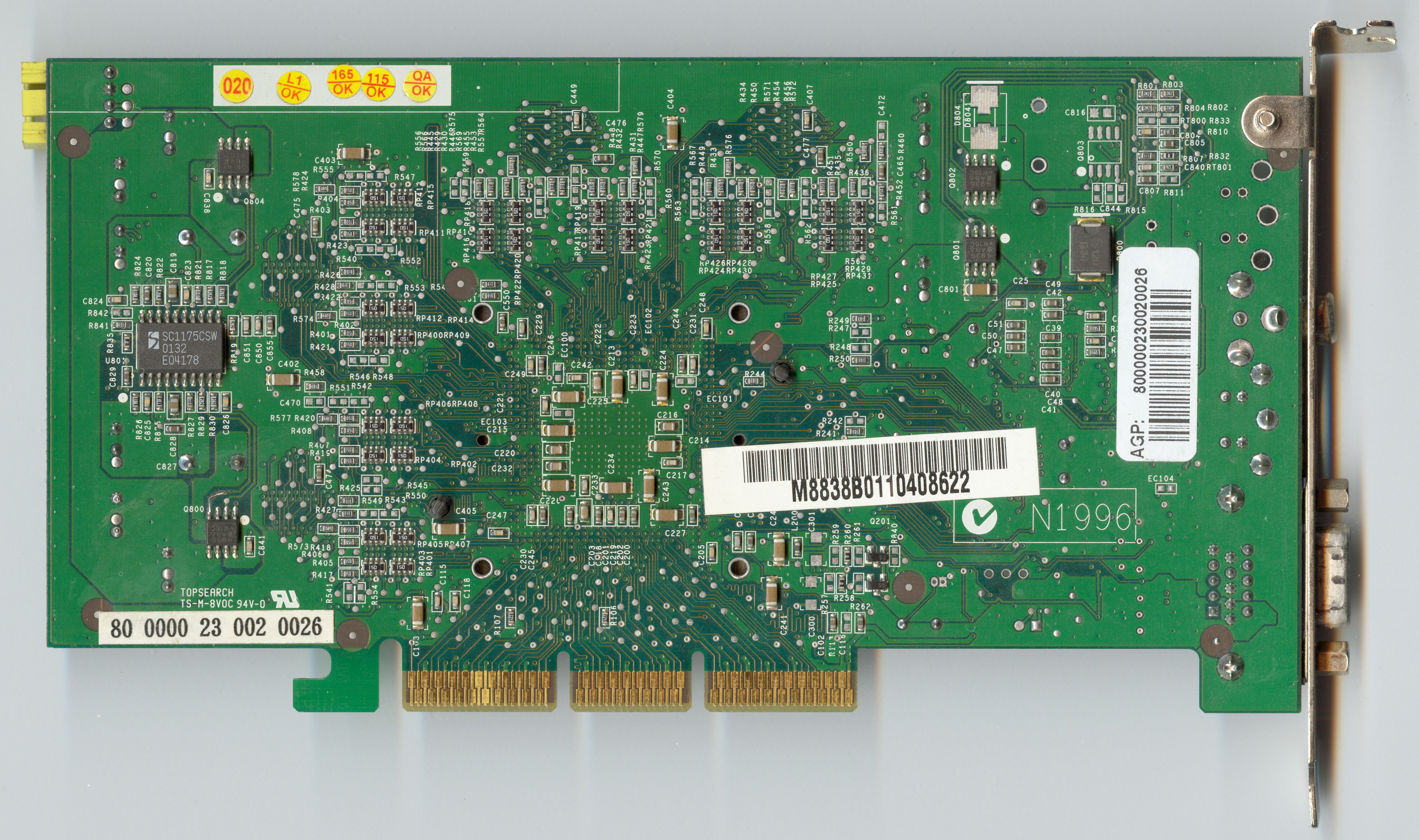

Medion GeForce3 Ti 200 (back side)

Medion GeForce3 Ti 200 (back side)
