Gainward GeForce3

Published: (last update )

GPU
GPU type NV20
Manufacturing process150 nm
Transistors57 million
Die size145 mm2
Density0.39 M / mm2
ROPs4
TMUs8
Pixel shaders4
Vertex shaders1
Unified shaders-
Clock200 MHz
Pixel fillrate800 MP/s
Texel fillrate1 600 MT/s
SP gigaflops-
DP gigaflops-
DirectX8
OpenGL1.3
OpenCL / Compute ver.-
Memory
Capacity64 MB
TypeDDR
Clock460 MHz
Bus width128 bit
Bandwith7 360 MB/s
Rated speed-
Brand-
The card
ManufacturerGainward
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP40 W
Analog I/O ports1 × VGA, 1 × S-Video in, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date31st week of 2001
Release date2001

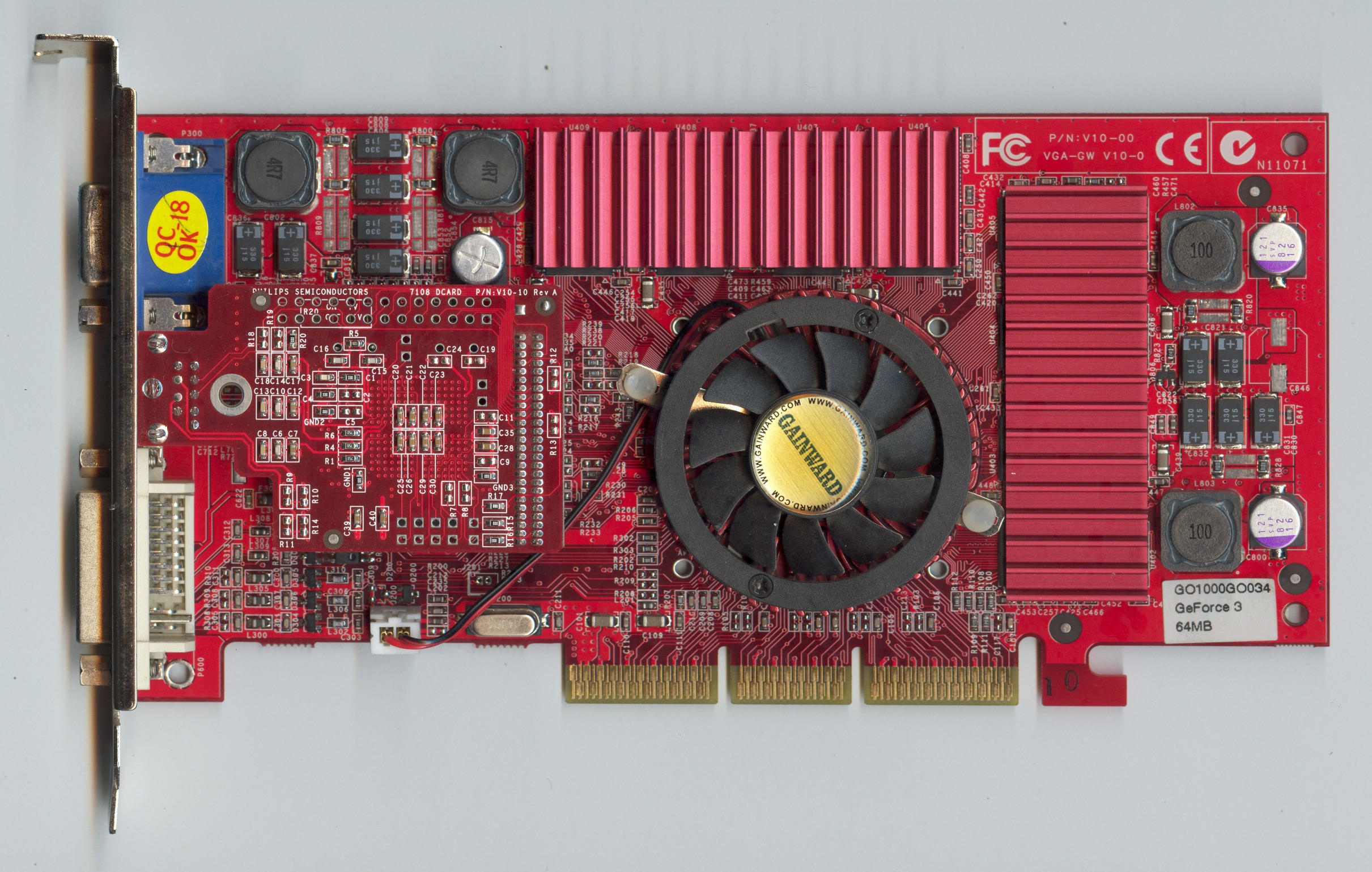

Gainward GeForce3 (front side)

Gainward GeForce3 (front side)

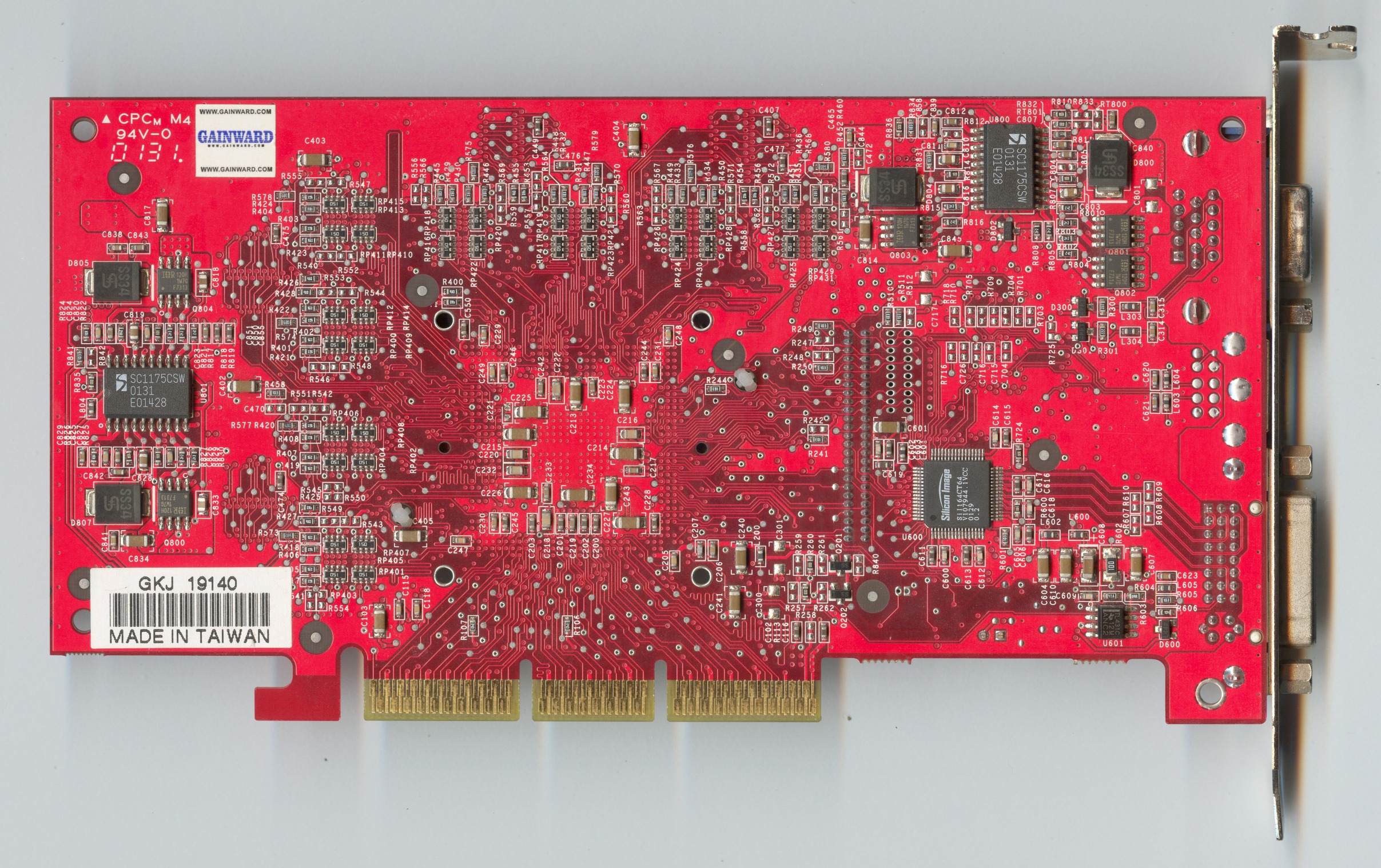

Gainward GeForce3 (back side)

Gainward GeForce3 (back side)
