Asus Riva TNT2 VIVO

Published: (last update )

GPU
GPU type NV5
Manufacturing process250 nm
Transistors15 million
Die size90 mm2
Density0.17 M / mm2
ROPs2
TMUs2
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock125 MHz
Pixel fillrate250 MP/s
Texel fillrate250 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.2
OpenCL / Compute ver.-
Memory
Capacity32 MB
TypeSGRAM
Clock143 MHz
Bus width128 bit
Bandwith2 288 MB/s
Rated speed143 MHz
BrandSamsung
The card
ManufacturerAsus
InterfaceAGP 4x
Interface bandwith1 066 MB/s
TDP-
Analog I/O ports1 × VGA, 1 × Composite out, 1 × S-Video in, 1 × S-Video out
Digital I/O ports-
Independent screens1
Manufacture date22nd week of 1999
Release date1999

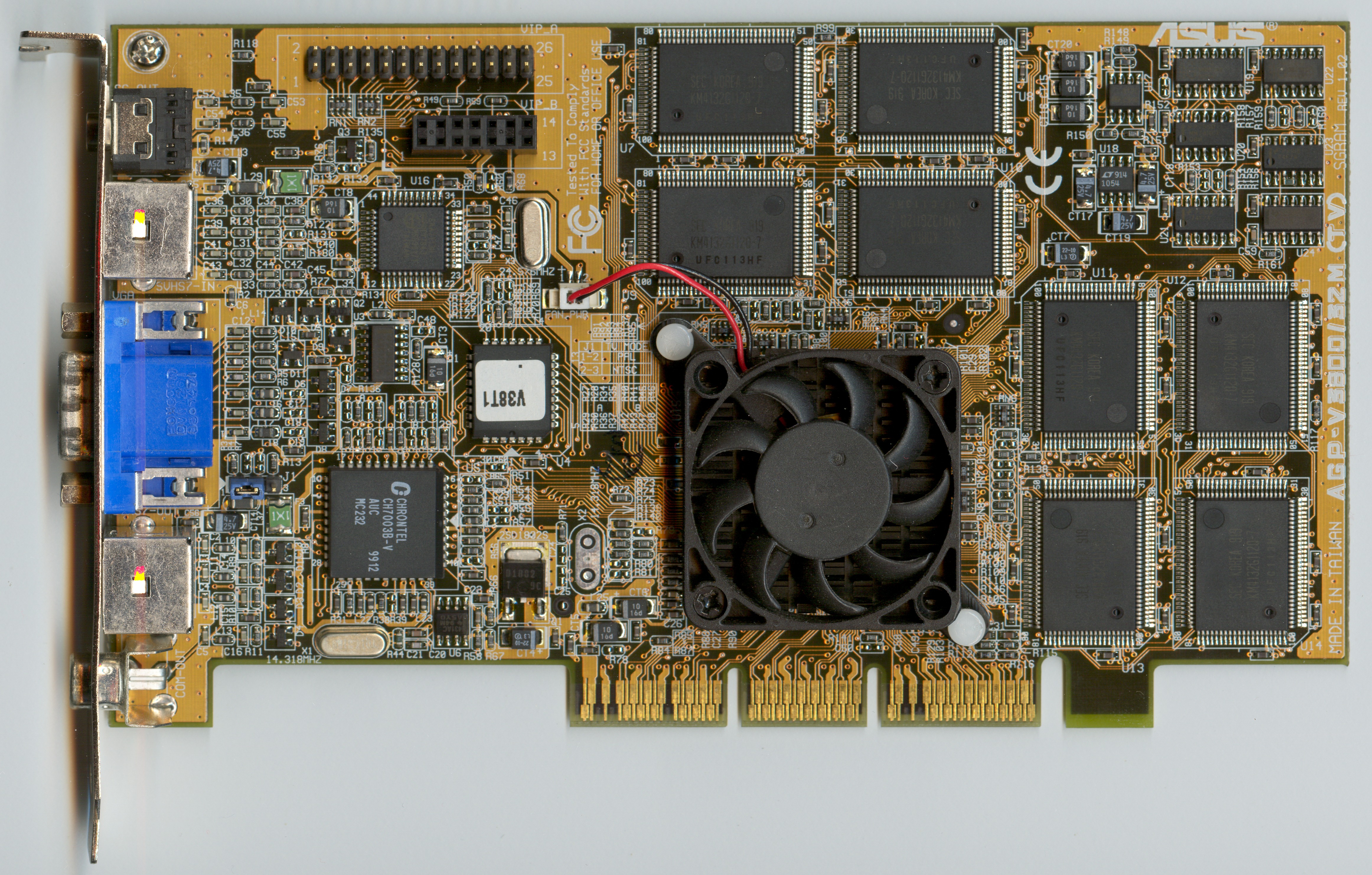

Asus Riva TNT2 VIVO (front side)

Asus Riva TNT2 VIVO (front side)

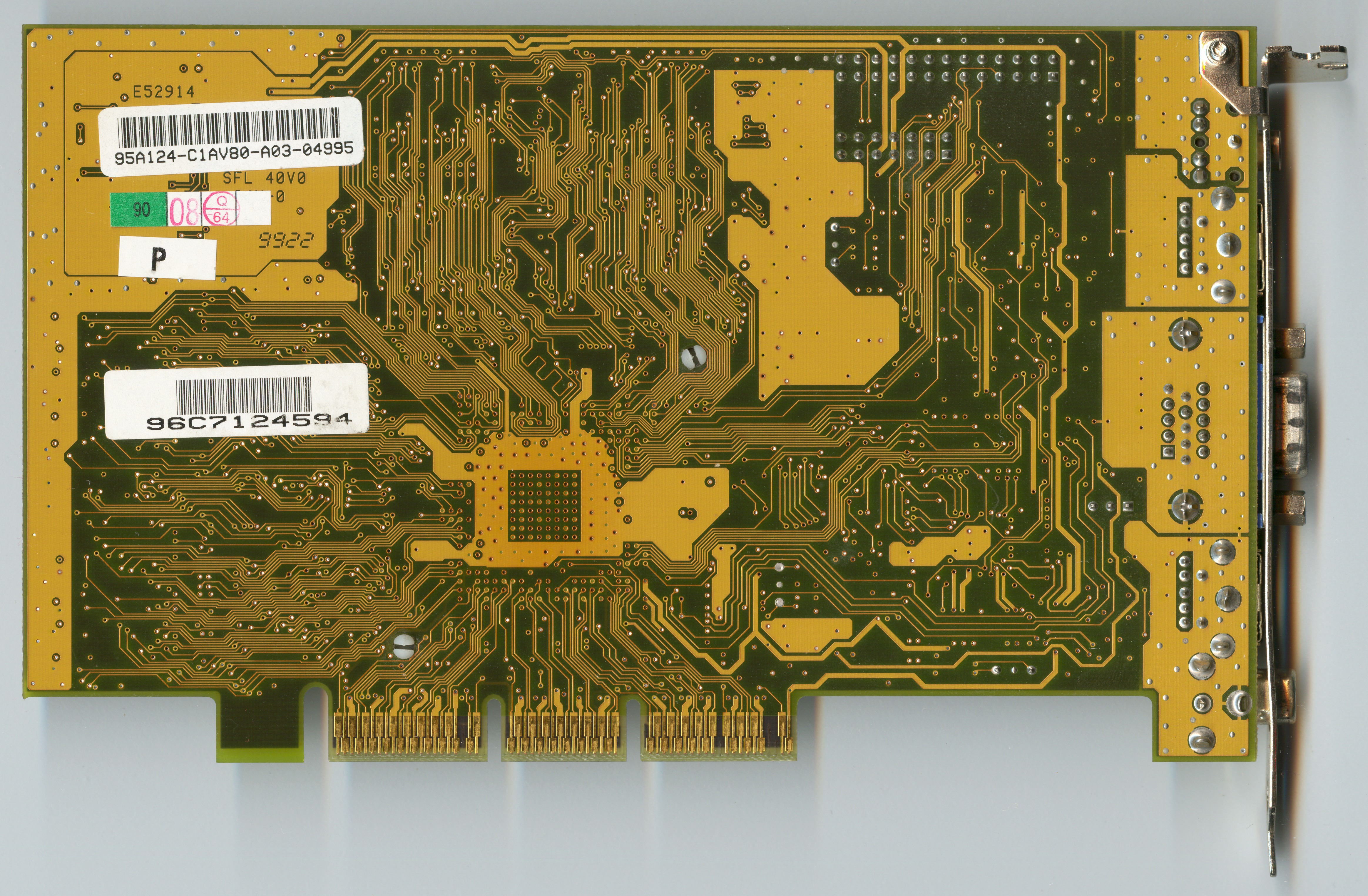

Asus Riva TNT2 VIVO (back side)

Asus Riva TNT2 VIVO (back side)
