Gigabyte Radeon X1950 Pro

Published: (last update )

GPU
GPU type RV570
Manufacturing process80 nm
Transistors330 million
Die size230 mm2
Density1.43 M / mm2
ROPs12
TMUs12
Pixel shaders36
Vertex shaders8
Unified shaders-
Clock575 MHz
Pixel fillrate6 900 MP/s
Texel fillrate6 900 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock1 380 MHz
Bus width256 bit
Bandwith44 160 MB/s
Rated speed-
Brand-
The card
ManufacturerGigabyte
InterfacePCI-E x16
Interface bandwith4 096 MB/s
TDP80 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date-
Release date2006

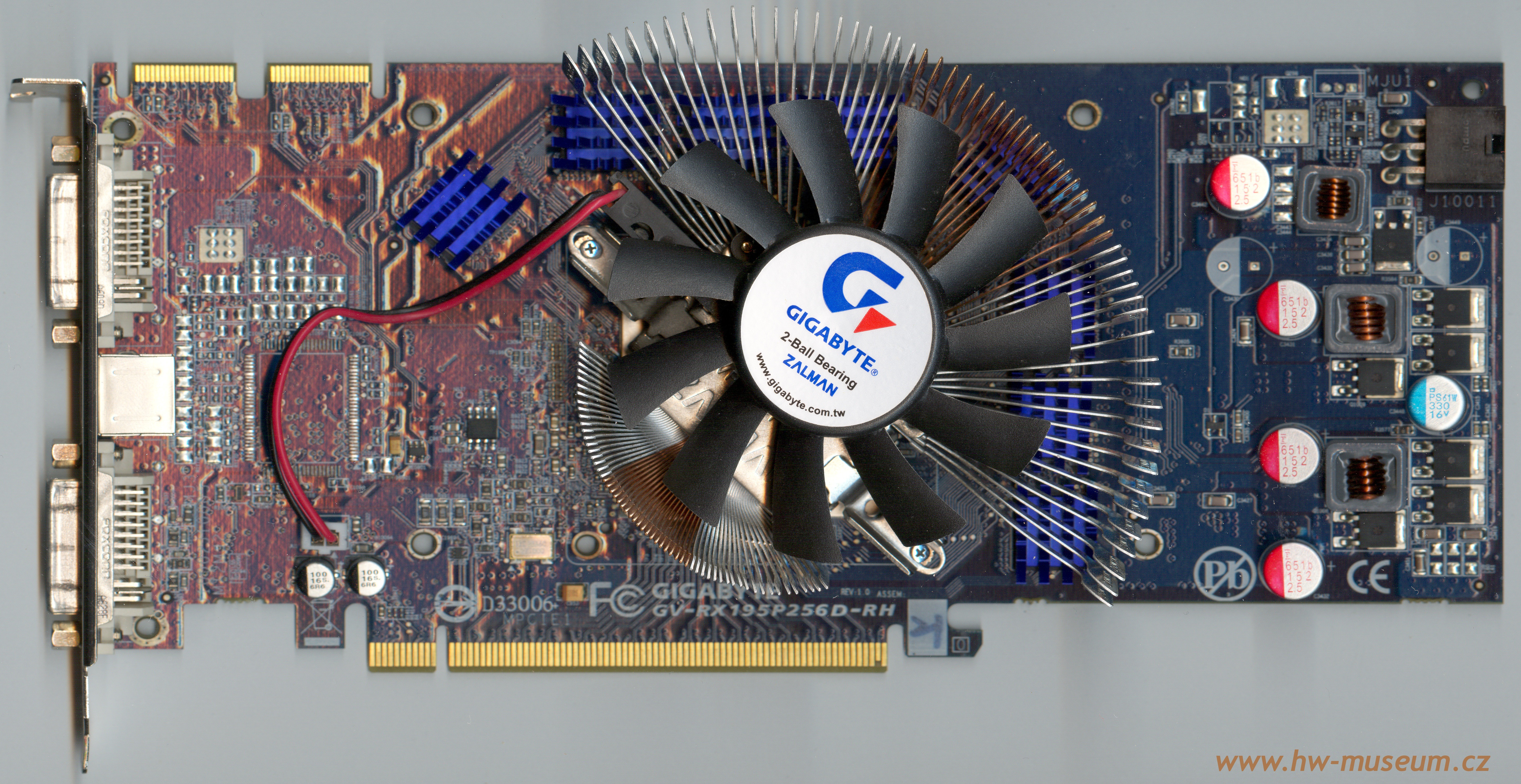

Gigabyte Radeon X1950 Pro (front side)

Gigabyte Radeon X1950 Pro (front side)

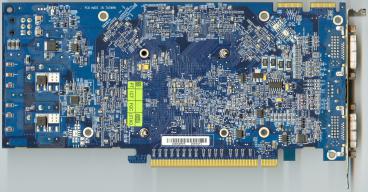

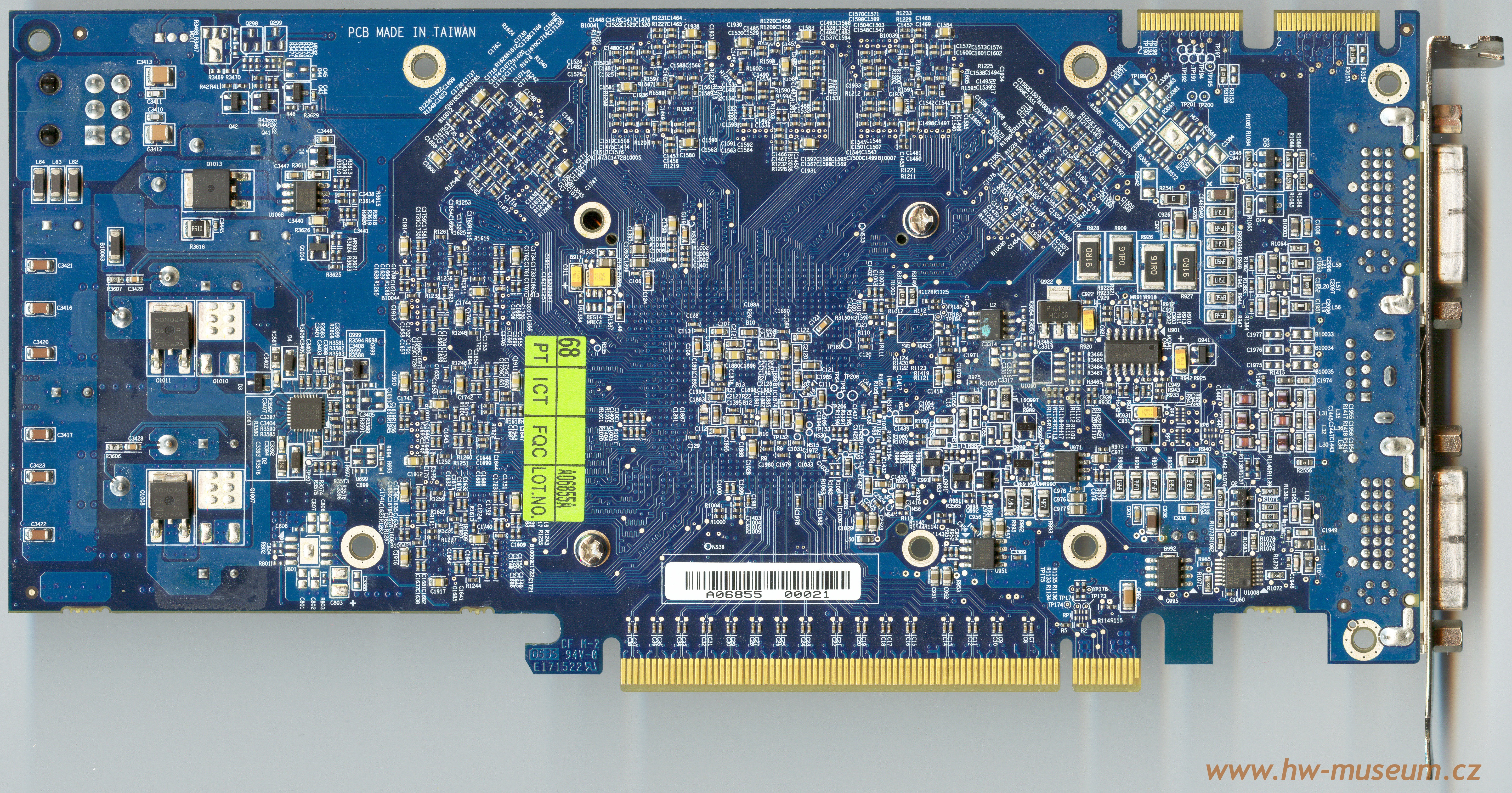

Gigabyte Radeon X1950 Pro (back side)

Gigabyte Radeon X1950 Pro (back side)

Gigabyte Radeon X1950 Pro gallery
Gigabyte Radeon X1950 Pro gallery
Gigabyte Radeon X1950 Pro gallery
Gigabyte Radeon X1950 Pro gallery
Gigabyte Radeon X1950 Pro gallery
Gigabyte Radeon X1950 Pro gallery
