Gigabyte GA-A55M-DS2

Published: (last update )

Chipset
ModelAMD A55
NorthbridgeLlano IMC
SouthbridgeA55
Bus type-, 100 MHz, - bit
Bus bandwith0 MB/s
RAM type (1)DDR3 1866 MHz, 128 bit
RAM type (2)-
RAM bandwidth29856 MB/s
Maximum RAM32768 MB
Reg. / ECC supportno / no
NB PCI-E lanes 16 (2.0)
AGP-
PCI support2.3
Integrated VGARadeon HD 6550D
The board
Socketsocket FM1
Supported CPUsA 3000 Series, Athlon, Sempron
Fastest CPUA8-3870K
RAM slots2 × DDR3
AGP-
PCI-E x16, x8, x4, x11, -, -, 1
PCI-X / PCI / ISA-, 1, -
IDE-
SATA4 × (300)
USB / Firewire8 × (2.0)
LAN1 × 1000 Mb/s
FormatmicroATX (225x174)
Release date2011
Gigabyte GA-A55M-DS2 (front side)

Gigabyte GA-A55M-DS2 (front side)

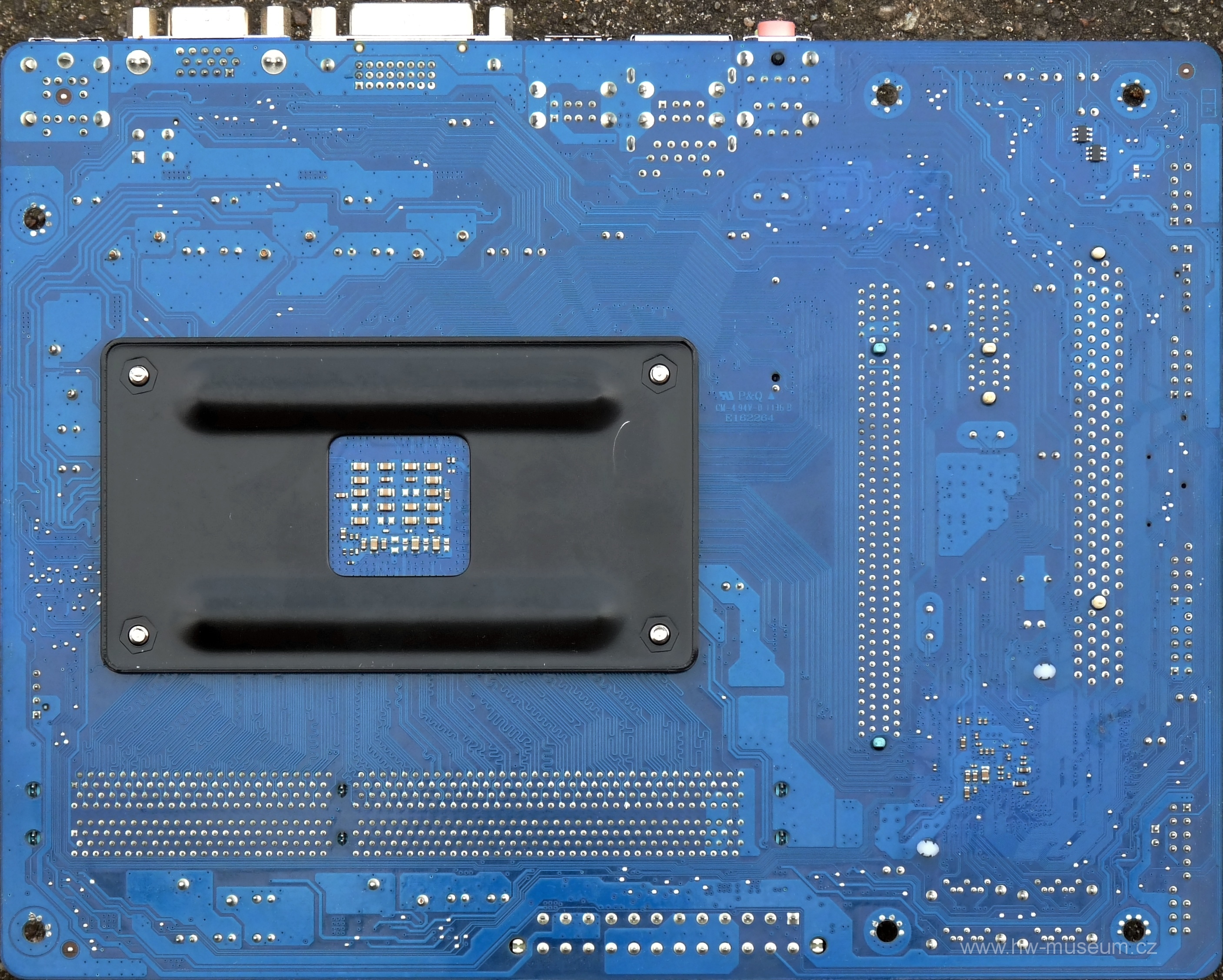

Gigabyte GA-A55M-DS2 (back side)

Gigabyte GA-A55M-DS2 (back side)
