Asus P4B533-E

Published: (last update )

Chipset
ModelIntel 845E
Northbridge82845E
SouthbridgeICH4
Bus typeQDR, 533 MHz, 64 bit
Bus bandwith4 264 MB/s
RAM type (1)DDR 266 MHz, 64 bit
RAM type (2)-
RAM bandwidth2 128 MB/s
Maximum RAM2 048 MB
Reg. / ECC supportno / yes
NB PCI-E lanes -
AGP
PCI support2.2
Integrated VGA-
The board
Socketsocket 478
Supported CPUsPentium 4, Celeron
Fastest CPUPentium 4 3.06 GHz
RAM slots3 × DDR
AGP4× - 4× ; 1.5V - 1.5V
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 6, -
IDE2 × ATA 100 + 2 × ATA 133
SATA-
USB / Firewire6 × (2.0) / 2
LAN1 × 100 Mb/s
FormatATX (305x244)
Release date2002
Asus P4B533-E (front side)

Asus P4B533-E (front side)

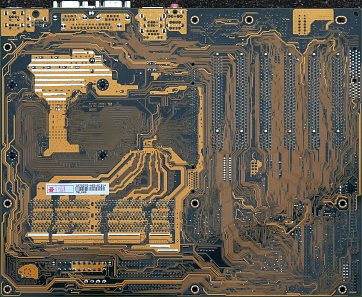

Asus P4B533-E (back side)

Asus P4B533-E (back side)
