MSI X79MA-GD45

Published: (last update )

Chipset
ModelIntel X79
NorthbridgeSB-E IMC
SouthbridgeX79
Bus typeDMI 2.0, 100 MHz, - bit
Bus bandwith0 MB/s
RAM type (1)DDR3 2400 MHz, 256 bit
RAM type (2)-
RAM bandwidth76800 MB/s
Maximum RAM32768 MB
Reg. / ECC supportno / no
NB PCI-E lanes 40 (3.0)
AGP-
PCI support-
Integrated VGA-
The board
Socketsocket 2011
Supported CPUsCore i7, Xeon E5
Fastest CPUCore i7 4960X, Xeon E5-2697 v2
RAM slots4 × DDR3
AGP-
PCI-E x16, x8, x4, x12, -, -, 2
PCI-X / PCI / ISA-, -, -
IDE-
SATA4 × (300) + 2 × (600)
USB / Firewire8 × (2.0), 4 × (3.0)
LAN1 × 1000 Mb/s
FormatmicroATX (244x244)
Release date2011

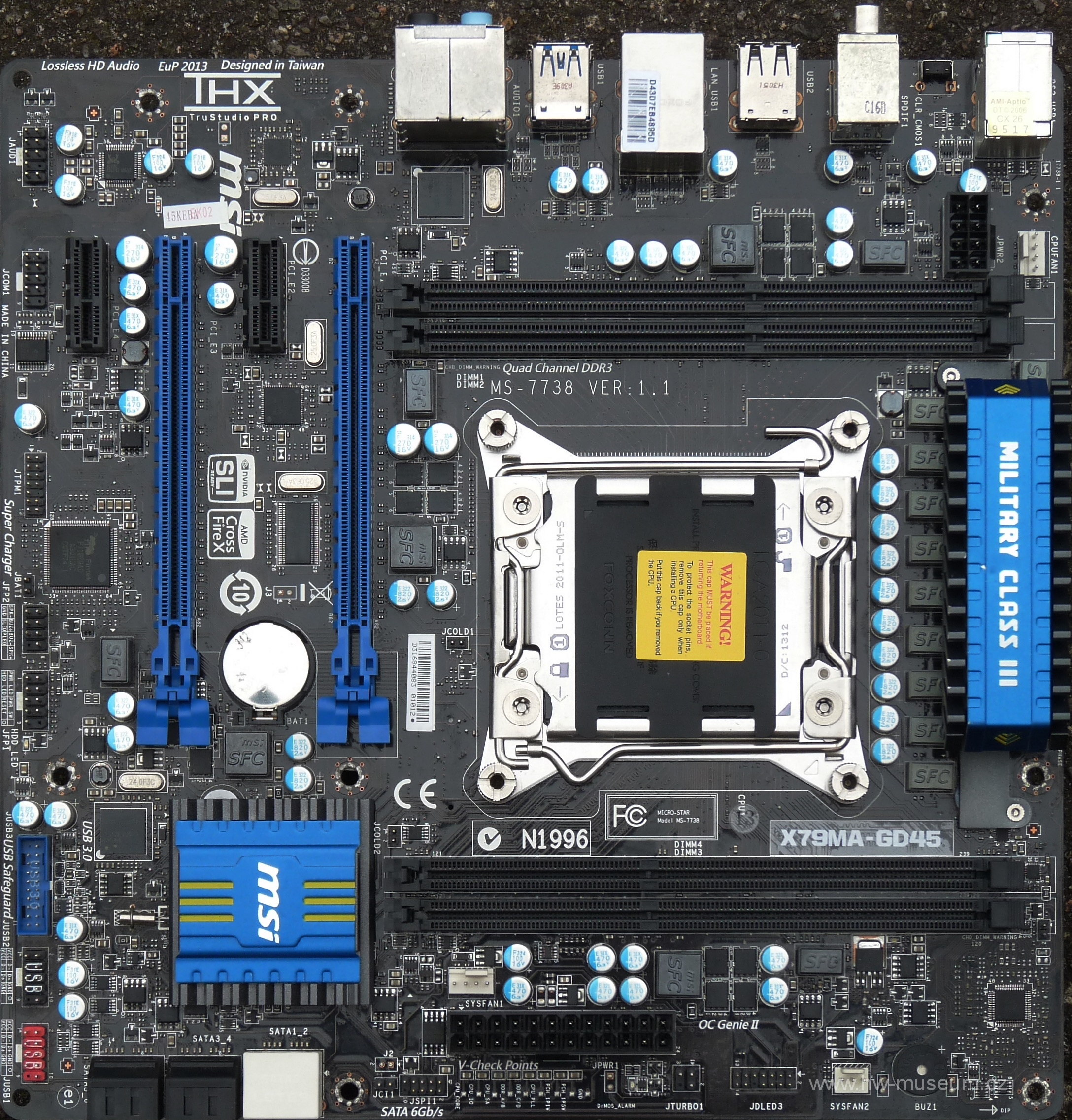

MSI X79MA-GD45 (front side)

MSI X79MA-GD45 (front side)

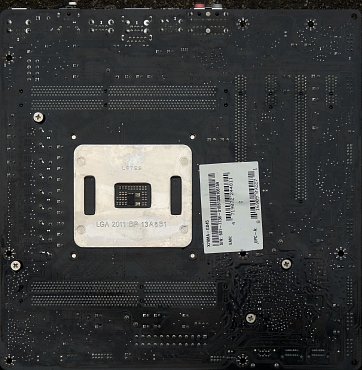

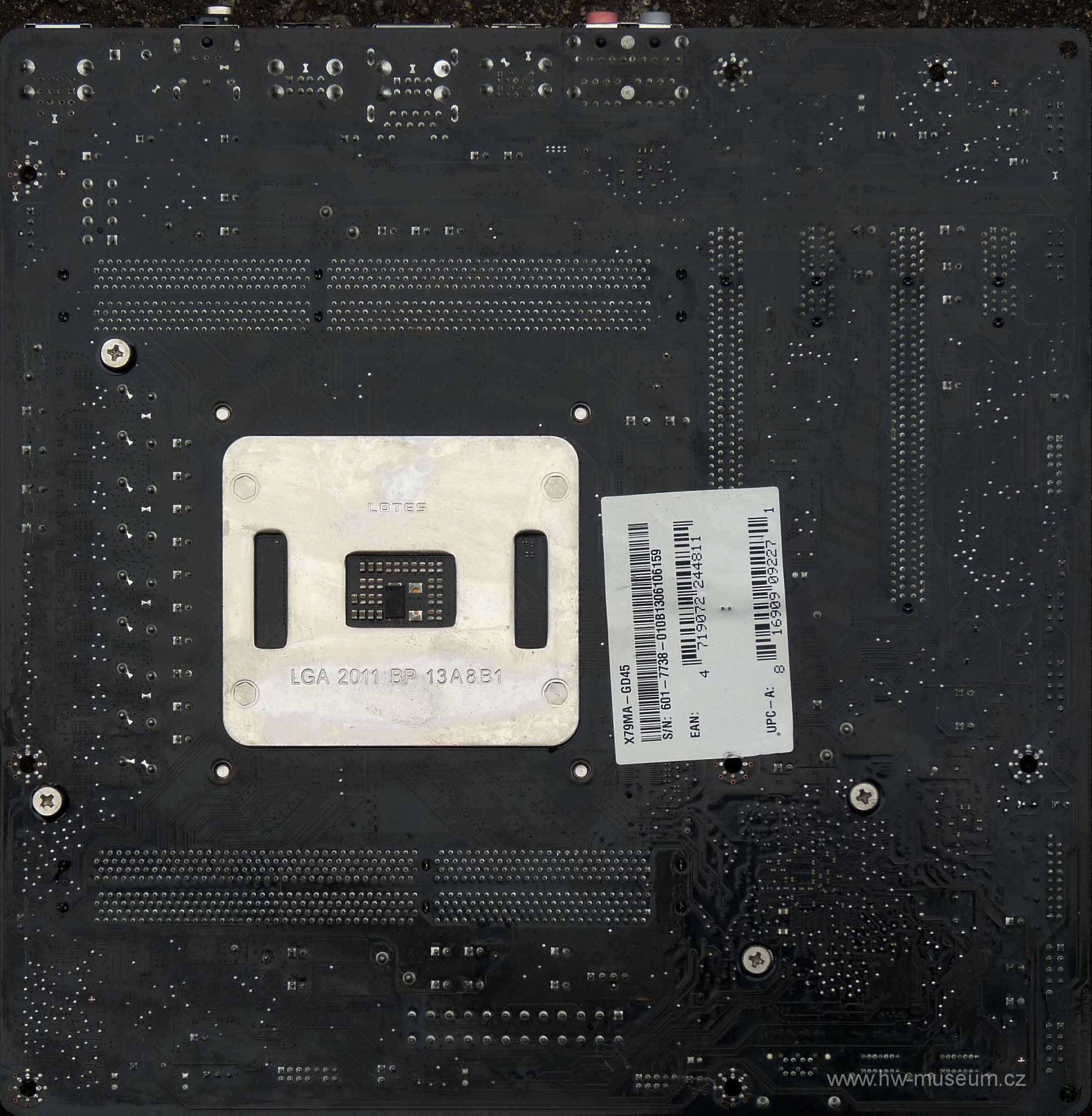

MSI X79MA-GD45 (back side)

MSI X79MA-GD45 (back side)
