ASRock A75 Pro4

Published: (last update )

Chipset
ModelAMD A75
NorthbridgeLlano IMC
SouthbridgeA75
Bus type-, 100 MHz, - bit
Bus bandwith0 MB/s
RAM type (1)DDR3 2400 MHz, 128 bit
RAM type (2)-
RAM bandwidth38400 MB/s
Maximum RAM32768 MB
Reg. / ECC supportno / no
NB PCI-E lanes 16 (2.0)
AGP-
PCI support2.3
Integrated VGARadeon HD 6550D
The board
Socketsocket FM1
Supported CPUsA 3000 Series, Athlon, Sempron
Fastest CPUA8-3870K
RAM slots4 × DDR3
AGP-
PCI-E x16, x8, x4, x12, -, -, 2
PCI-X / PCI / ISA-, 3, -
IDE-
SATA5 × (600)
USB / Firewire8 × (2.0), 4 × (3.0) / 1
LAN1 × 1000 Mb/s
FormatATX (305x224)
Release date2011

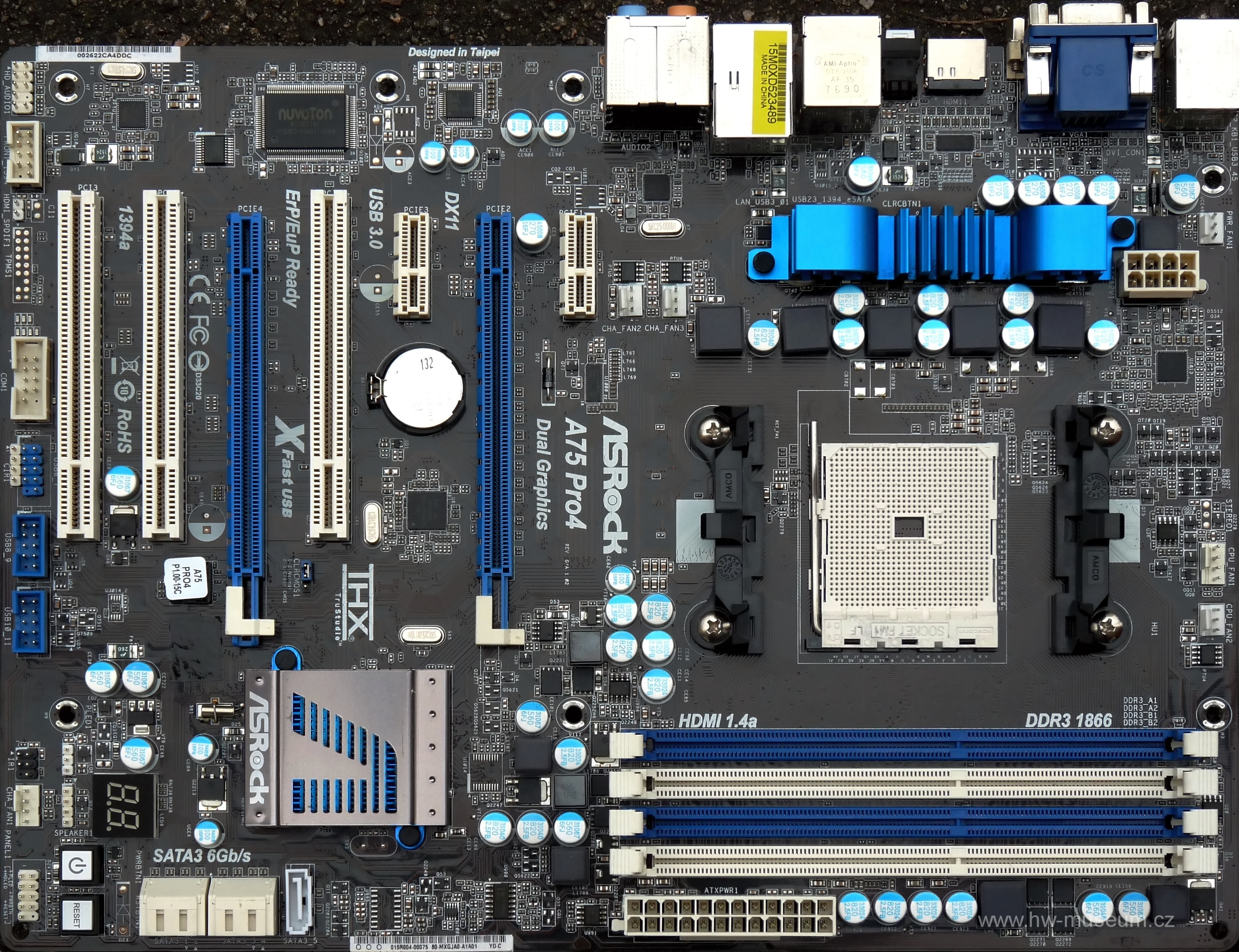

ASRock A75 Pro4 (front side)

ASRock A75 Pro4 (front side)

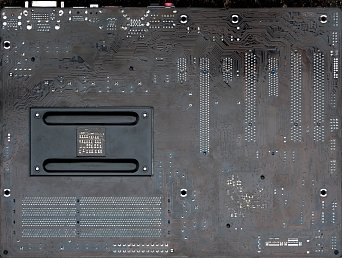

ASRock A75 Pro4 (back side)

ASRock A75 Pro4 (back side)
