FIC SD11

Published: (last update )

Chipset
ModelAMD 750
NorthbridgeAMD-751
SouthbridgeVT82C686A
Bus typeDDR, 200 MHz, 64 bit
Bus bandwith1 600 MB/s
RAM type (1)SDR 100 MHz, 64 bit
RAM type (2)-
RAM bandwidth800 MB/s
Maximum RAM768 MB
Reg. / ECC supportno / yes
NB PCI-E lanes -
AGP
PCI support2.2
Integrated VGA-
The board
Socketslot A
Supported CPUsAthlon
Fastest CPUAthlon 1GHz (Thunderbird)
RAM slots3 × SDR
AGP1× - 2× ; 3.3V - 3.3V
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 5, 1
IDE2 × ATA 66
SATA-
USB / Firewire4 × (1.1)
LAN-
FormatATX (305x244)
Release date2000

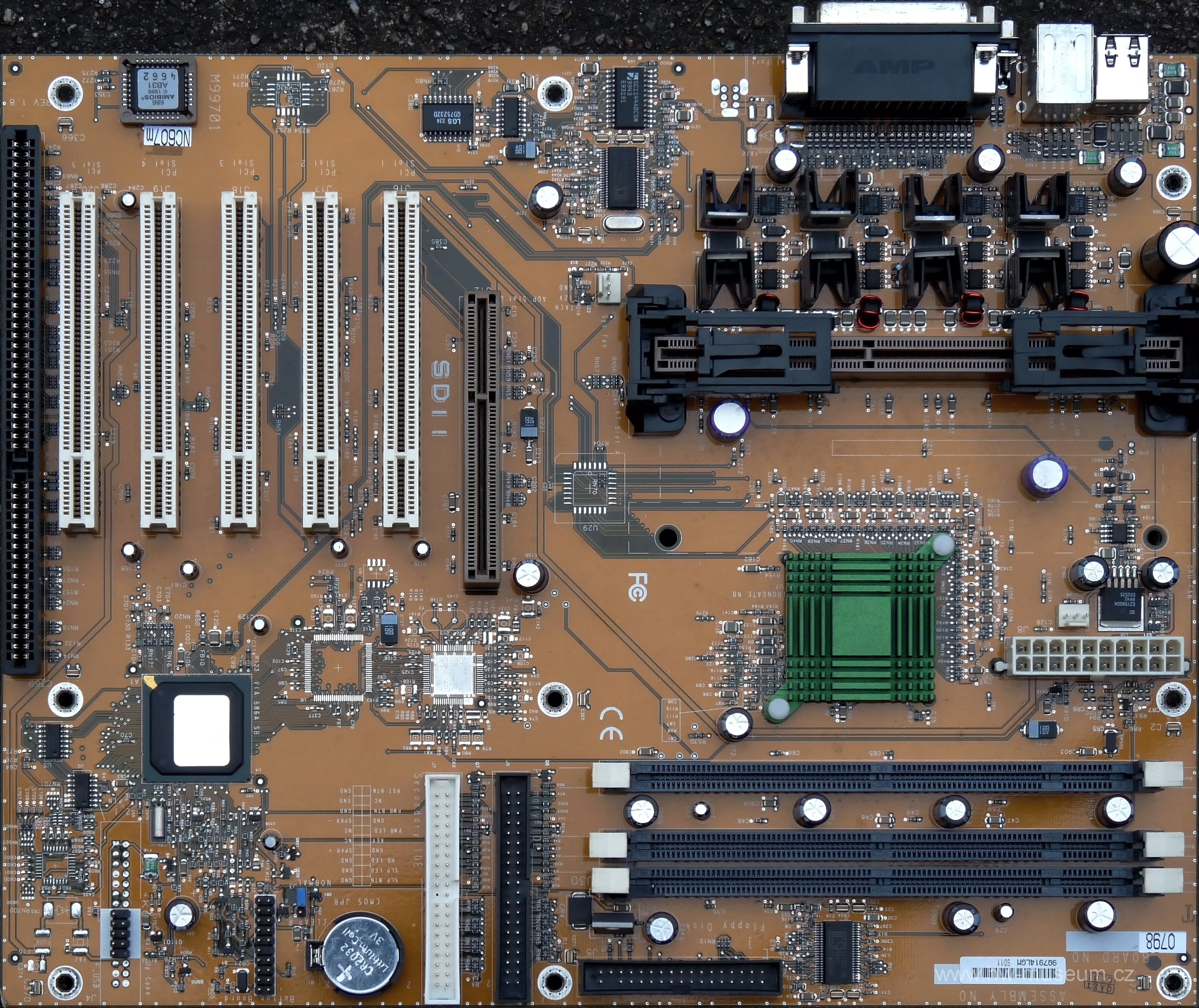

FIC SD11 (front side)

FIC SD11 (front side)

FIC SD11 (back side)

FIC SD11 (back side)
