Gigabyte GA-5AX

Published: (last update )

Chipset
ModelALi Aladdin V
NorthbridgeM1541
SouthbridgeM1543C
Bus typeSDR, 100 MHz, 64 bit
Bus bandwith800 MB/s
RAM type (1)SDR 100 MHz, 64 bit
RAM type (2)-
RAM bandwidth800 MB/s
Maximum RAM768 MB
Reg. / ECC supportno / no
NB PCI-E lanes -
AGP
PCI support2.1
Integrated VGA-
The board
Socketsocket 7
Supported CPUsPentium, K5, K6 - K6-III
Fastest CPUK6-III+ 550 Mhz
RAM slots3 × SDR
AGP1× - 2× ; 3.3V - 3.3V
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 5, 2
IDE2 × ATA 33
SATA-
USB / Firewire2 × (1.1)
LAN-
FormatATX (305x184)
Release date1999

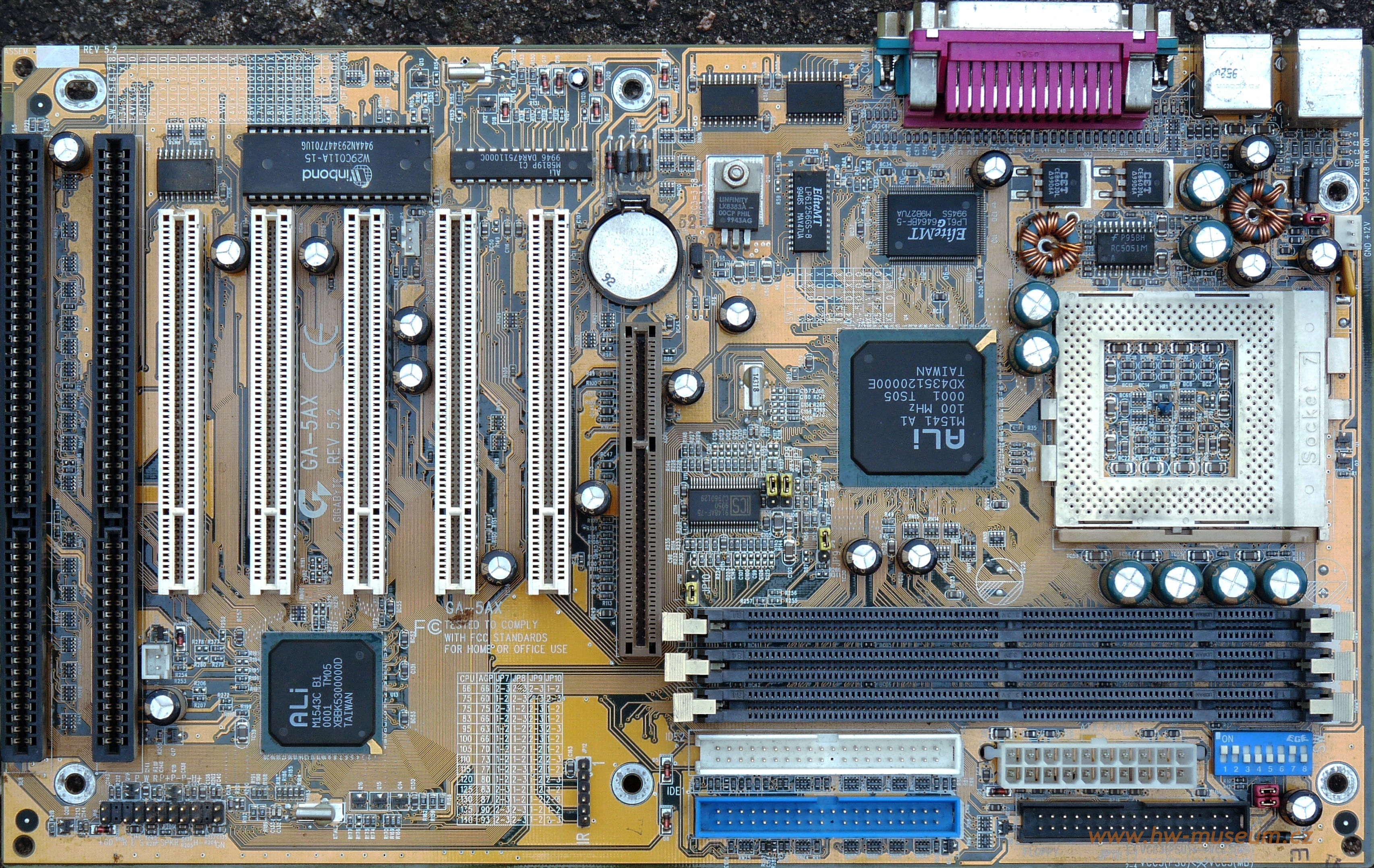

Gigabyte GA-5AX (front side)

Gigabyte GA-5AX (front side)

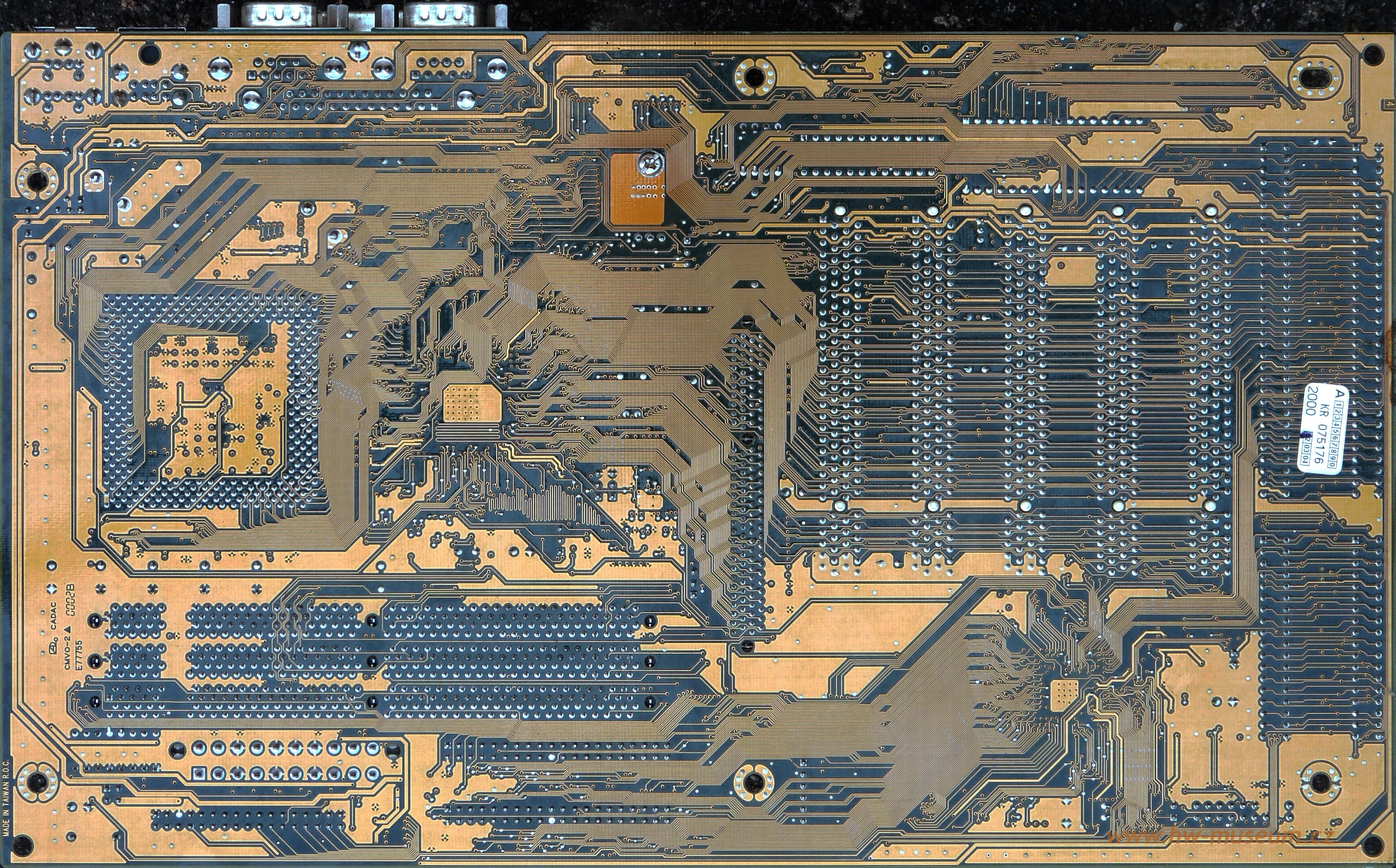

Gigabyte GA-5AX (back side)

Gigabyte GA-5AX (back side)
